BW-1000-3 type Semi Automatic Beverage Gable Top Carton Packing Machine consists of two separate machines: Carton forming machine and filling machine. The entire machine is made of food-grade stainless steel, and the surface is special processed to be beautiful and durable in use.

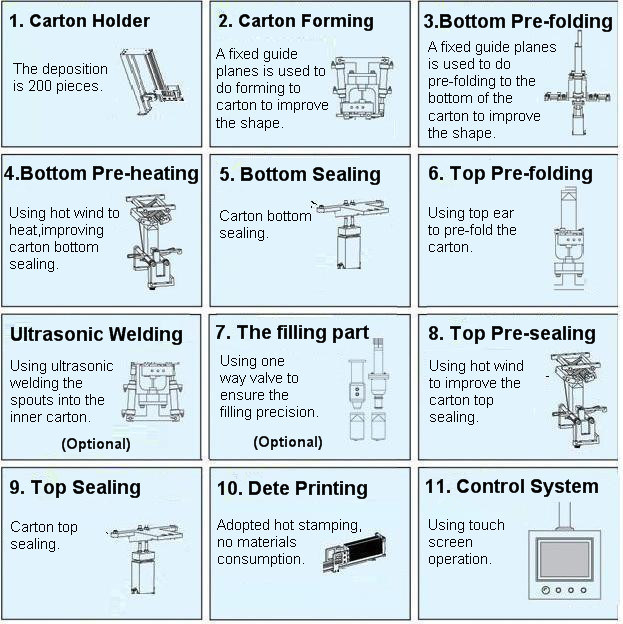

1. Work flow:

1) Carton Forming Machine: Put the carton onto the mandrel (manually) -- Bottom performing -- Bottom heating -- Bottom sealing

2) Capping Machine: Put the cap into and the carton's capping hole (manually) -- Ultrasonic welding

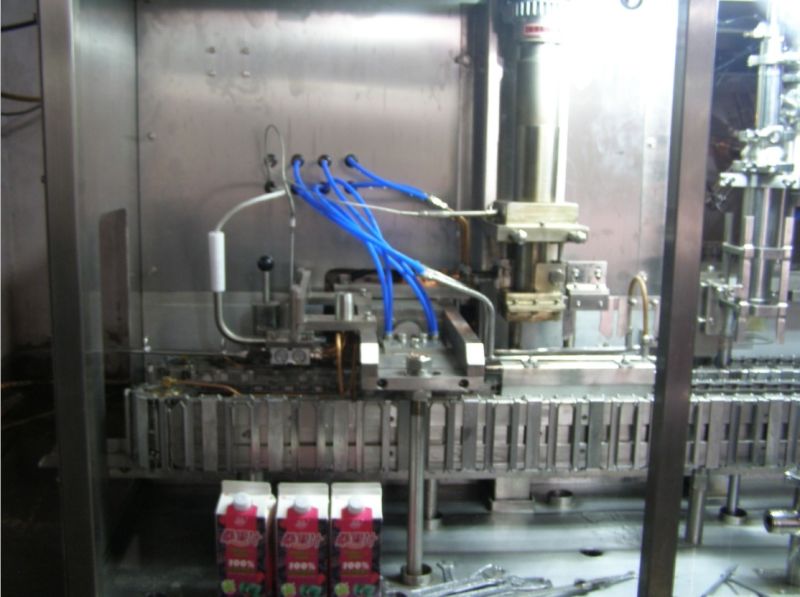

3) Filling Machine: Put the carton onto the conveyor (manually) -- Top preforming -- Filling -- Top heating -- Top sealing -- Date printing -- Finished product

The operation of the filling machine is automatically controlled by computer program, and others are controlled by electric apparatus. The whole progress is controlled by PLC, needs 3 persons to operate.


2. Suitable for filling:

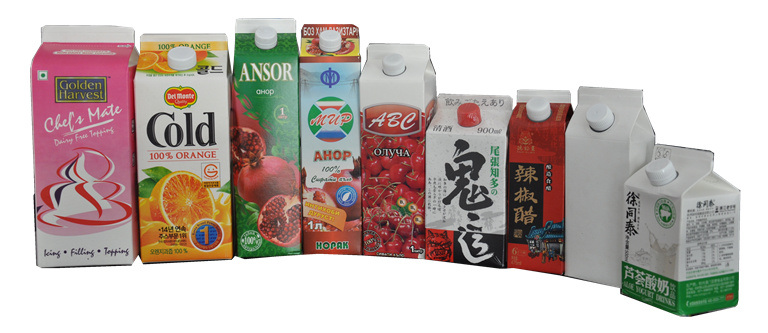

Milk, yogurt, cream, beaten egg, soy milk, juice, tea drink, corn drink, pure water, sauce, wine, cleaning solution, chemical product, sugar, grain, cornmeal, other dry powder, etc.


3. Technical parameter:

1. Capacity: 250--1000ml (can be filled by one machine)
2. Output: 800-1200 cartons/hour
3. Packing material: Cardboard carton / aluminium foil carton
4. Filling temperature: Cold filling: 2-5 degC / hot filling 88-92 degC
5. Cap: Without cap
6. Overall power: 22KW (three phases of electricity)
7. Size: (L*W*H): Carton forming machine: 1.3m*0.9m*1.5m
Filling machine: 2.0m*0.9m*2.6m
8. Compressed air pressure: 1.0-1.4 Mpa, Flow rate: 0.8-1.0M3/min, without oil, water and dust
9. Cooling water: Flow volume: ≥ 20L/ min Temperature: Normal temperature
10. Net Weight: 1100kg, (carton forming machine: 300kg, filling machine: 800kg)
11. Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.


4. Payment terms
 1)T/T : 30% as deposit , 70% balance before shipment
 2) L/C at sight

5. Delivery time
  1) For automatic filling machine 60 days
  2) For semi-automatic filling machine 45 days
  3) For manual filling machine 30 days

6. After Sale Services
Shenyang Beiya Beverage Machinery Co.,Ltd will supply 12 months guarantee for all the equipments, and if customer need, we will send our technicians to customers' factory, install the machines and train customer's staff to operate the machine. we will supply all the spare parts with cost price if customer need.
