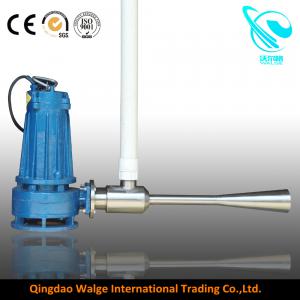

The stainless steel submersible jet aerator is an aeration equipment for water pretreatment and sewage biological treatment. It also can be used to add oxygen for aquaculture and maintain the landscape water. And also can be used to remove Fe,Mn for tap water treatment and supply water to tap water of high building.
Working Principle
Under high pressure which produced by the high speed rotation of the pump impeller, the liquid ejects from nozzle of the aerator at a high speed. When the high velocity liquid passes through the mixing chamber, the vacuum is formed in the mixing chamber, and a large amount of air is inhaled by the intake pipe. After the air enters the mixing chamber, the liquid is drastically mixed with the liquid at the throat, and the air is cut into fine bubbles by water. The gas-liquid mixture is formed and discharged by the diffusion tube. The air rises with tiny bubbles in the water and dissolves oxygen into the water.
Model No.

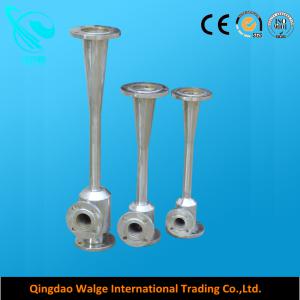

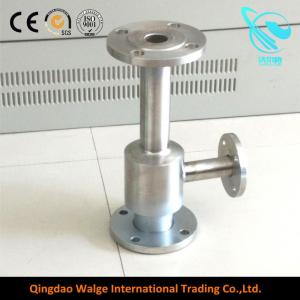

The jet aerator can be customized as the usage.It can be welded with one flange,two flange and three flange.And the model no. are as follows.
| Model | Air Inlet (m3/h) | Diving Depth (m) | Oxygen Capacity (KgO2/h) | Matched pipe | Pump Power (kw) | Pump Flow rate (m3/h) | Pump Lift (m) | Air inlet (mm) |
| SLB-D-05 | 10 | 1-3 | 0.38 | DN50 | 0.75 | 10 | 10-12 | Φ40 |
| SLB-D-15 | 25 | 1-5 | 0.85 | DN50 | 1.5 | 15 | 13-16 | Φ50 |
| SLB-D-20 | 40 | 2-6 | 1.5 | DN50 | 2.2 | 25 | 13-16 | Φ50 |
| SLB-D-30 | 55 | 2-6 | 2.65 | DN50/65 | 3.0 | 37 | 13-16 | Φ63 |
| SLB-D-40 | 75 | 2-6 | 3.4 | DN50/65/80 | 4.0 | 40 | 13-16 | Φ75 |
| SLB-D-55 | 90 | 2-7 | 5.2 | DN80/100 | 5.5 | 50 | 13-16 | Φ75 |
| SLB-D-75 | 120 | 2-7 | 7.5 | DN80/100 | 7.5 | 80 | 13-16 | Φ75 |
The installation method depends on the pump type,flange quantity,jet aerator quantity and customer's request.
Please see the below ones just for reference.
Package&Transport
Using the polywood carton and paper wraaped.
Transported by air,ocean and others.
