Huabo Feed Silo For Poultry & Livestock Farm
Huabo offers a wide range of feed storage silo for a safe and efficient feed storage.
Specification
Features
Huabo offers a wide range of feed storage silo for a safe and efficient feed storage.
Specification
Silo Specification-275g/m² Galvanized sheet | |||||||
Diameter 1.815m silo w/60°Hopper | Diameter 2.723m silo w/60°Hopper | ||||||
Model | Capacity (Ton) | Cubic measure | Height | Model | Capacity (Ton) | Cubic measure | Height |
18-0060-1 | 2.5 | 4.2 | 3.6 | 27-0060-1 | 7.0 | 11.8 | 4.8 |
18-0060-2 | 4.0 | 6.5 | 4.5 | 27-0060-2 | 10.0 | 17.0 | 5.7 |
18-0060-3 | 5.0 | 8.8 | 5.4 | 27-0060-3 | 13.0 | 22.2 | 6.6 |
Diameter 3.05m silo w/60°Hopper | Diameter 3.6m silo w/60°Hopper | ||||||
Model | Capacity (Ton) | Cubic measure | Height | Model | Capacity (Ton) | Cubic measure | Height |
30-0060-1 | 9.0 | 16.0 | 5.0 | 36-0060-1 | 13.0 | 21.7 | 5.0 |
30-0060-2 | 13.0 | 22.5 | 5.9 | 36-0060-2 | 19.0 | 30.9 | 5.9 |
30-0060-3 | 17.0 | 29.0 | 6.8 | 36-0060-3 | 25.0 | 40.1 | 6.8 |

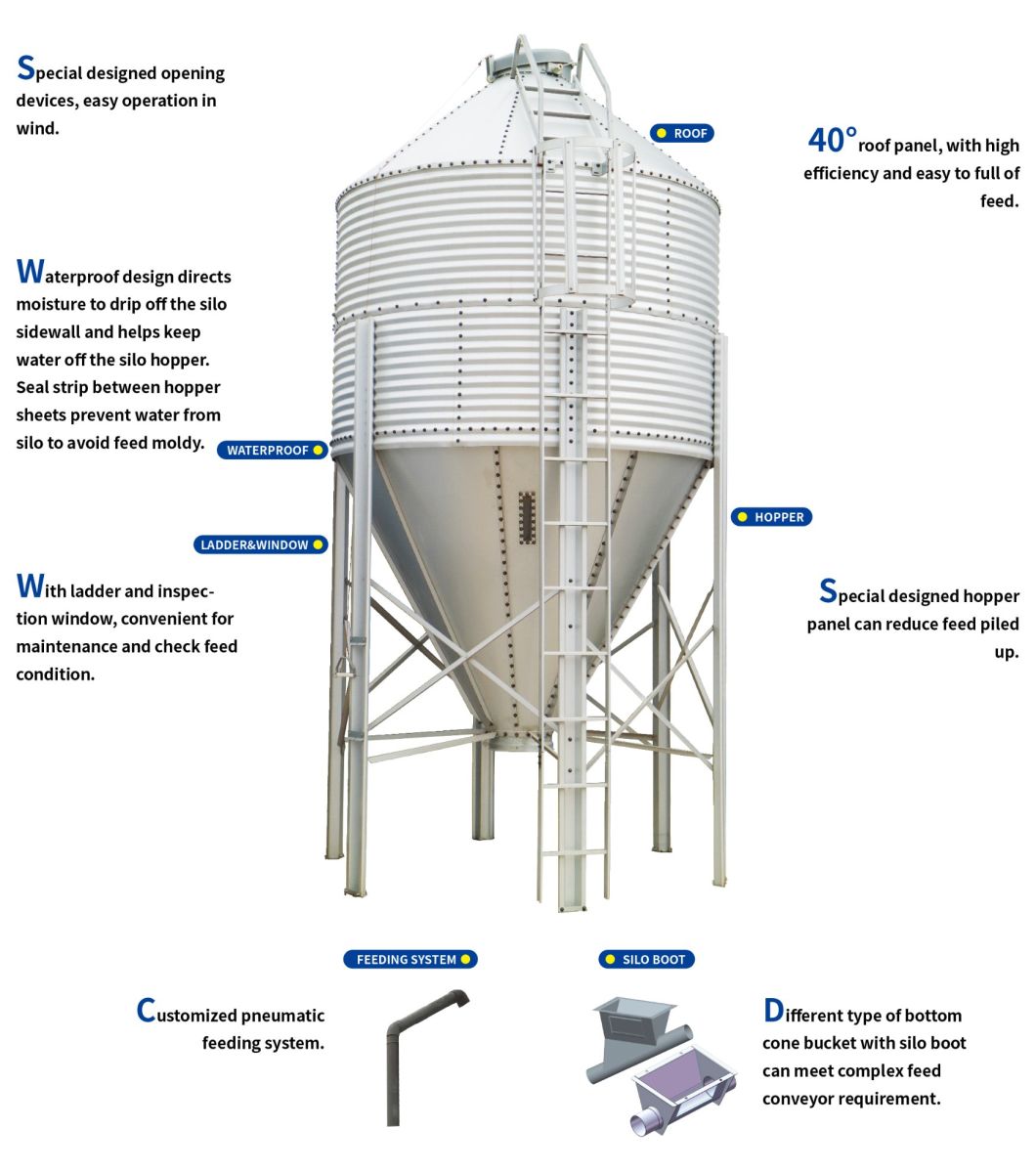

Features
