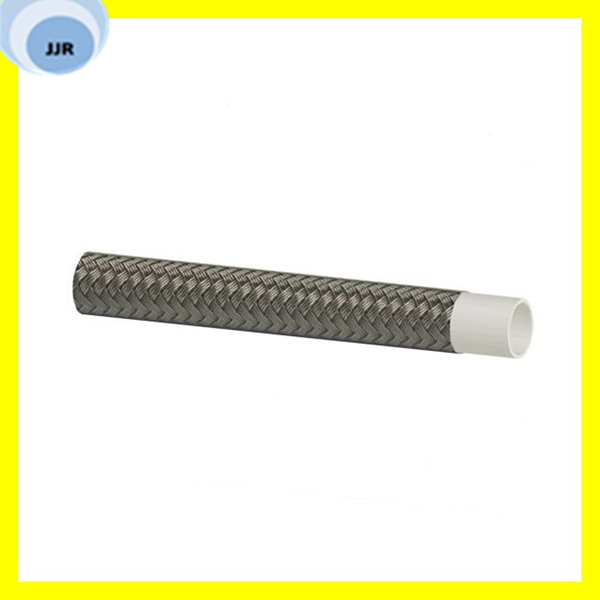

anti-heat ss braided SAE 100 R14 ptfe pipe
SAE 100 R14 PTFE hose is extremely versatile and are used in many applications across industires.used in industries like transportation, aerospace, chemical transfer, pharmaceuticals and food handling.
PTFE hose has a very high operating temperature range, from -60 degrees to +260 degrees. Chemical compatibility is the pre- dominant characteristic of the PTFE hose. In most of the areas, PTFE hose can withstand extreme temperature and varying pressure, exerted by different types of fluids.
Our PTFE hose with stainless steel braided hose reinforcement for general fluid and granulate transfer applications.SAE 100 R14 hose comes in size of nominal ID's of 1/4" to 1-1/4".Other size requirement please contact with us for further details.
Construction of SAE 100 R14 PTFE Hose:
Inner Core:Smooth Tube PTFE
PolytetraFluoroEthylene or PTFE hose
Non-absorbent no-stick surface
Non-Contaminating
Non-aging:no deterioration over time
Reduces entrapment issues and build-up of deposits
Available with carbon coating for non-conductive fluids or granulates
Will not impart taste or odor
Easy to drain & clean
Chemical resistance allows for the handing of various fluids
Outer reinforcement layer:Braided stainless steel
Constructed of 304 braided stainless steel braid
Increases the bending capability of the hose
Protects the PTFE hose core from damage
Adds strength to the PTFE hose core
Makes it easier to attach hose fittings
Unique braid reinforcement allows hose to maintain its shape
SAE 100 R14 PTFE hose is extremely versatile and are used in many applications across industires.used in industries like transportation, aerospace, chemical transfer, pharmaceuticals and food handling.
PTFE hose has a very high operating temperature range, from -60 degrees to +260 degrees. Chemical compatibility is the pre- dominant characteristic of the PTFE hose. In most of the areas, PTFE hose can withstand extreme temperature and varying pressure, exerted by different types of fluids.
Our PTFE hose with stainless steel braided hose reinforcement for general fluid and granulate transfer applications.SAE 100 R14 hose comes in size of nominal ID's of 1/4" to 1-1/4".Other size requirement please contact with us for further details.
| Hose ID | Hose OD | Wall thickness | W.P | B.P | Min B.R | |||
| inch | mm | mm | mm | Mpa | Psi | Mpa | Psi | mm |
| 1/4" | 4.65-5.16 | 7.32-8.43 | 0.89 | 299 | 4330 | 897 | 13000 | 71 |
| 5/16" | 5.97-6.81 | 8.26-9.42 | 0.76 | 276 | 4000 | 828 | 12000 | 76 |
| 3/8" | 7.54-8.38 | 10.36-11.63 | 0.76 | 230 | 3330 | 690 | 10000 | 127 |
| 1/2" | 9.93-10.64 | 12.78-14.1 | 0.89 | 183 | 2660 | 552 | 8000 | 133 |
| 5/8" | 12.57-13.34 | 12.75-16.76 | 0.76 | 161 | 2330 | 483 | 7000 | 177 |
| 3/4" | 15.24-16.51 | 18.62-20.14 | 0.76 | 138 | 2000 | 414 | 6000 | 203 |
| 1" | 21.46-22.99 | 24.64-26.95 | 0.89 | 103 | 1500 | 310 | 4500 | 241 |
| 1-1/4" | 27.8-29.4 | 31.9-33.5 | 1 | 41 | 600 | 172 | 2500 | 406 |
Construction of SAE 100 R14 PTFE Hose:
Inner Core:Smooth Tube PTFE
PolytetraFluoroEthylene or PTFE hose
Non-absorbent no-stick surface
Non-Contaminating
Non-aging:no deterioration over time
Reduces entrapment issues and build-up of deposits
Available with carbon coating for non-conductive fluids or granulates
Will not impart taste or odor
Easy to drain & clean
Chemical resistance allows for the handing of various fluids
Outer reinforcement layer:Braided stainless steel
Constructed of 304 braided stainless steel braid
Increases the bending capability of the hose
Protects the PTFE hose core from damage
Adds strength to the PTFE hose core
Makes it easier to attach hose fittings
Unique braid reinforcement allows hose to maintain its shape
