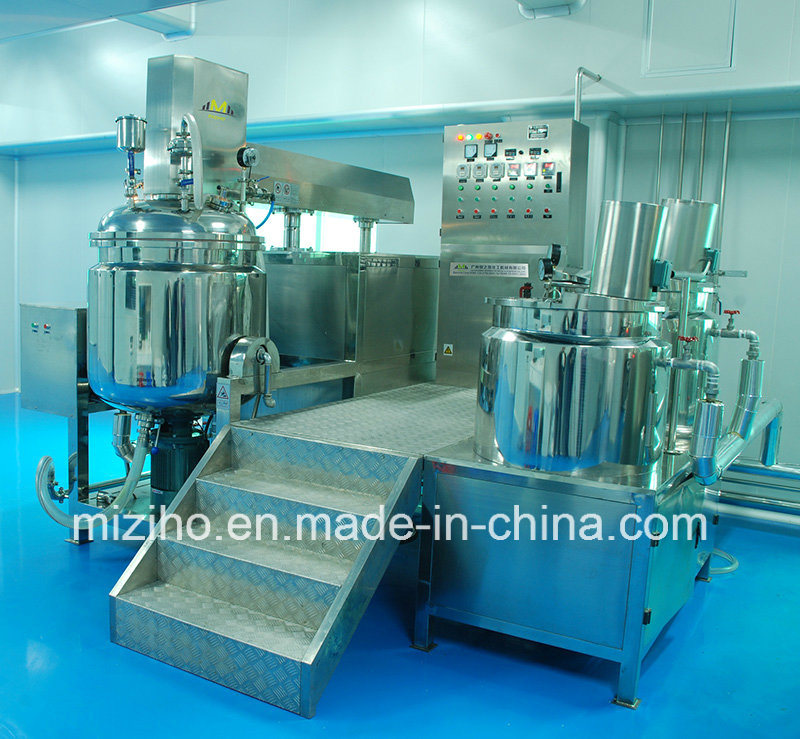

300L Vacuum homogeneous mixer
Machine Description
MZH-V300L Vacuum homogeneous mixer consists of: oil tank, water tank, vacuum homogeneous emulsifying machine, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet, piping system. It is the most suitable equipment to produce high-grade skin care creams or other creams product
The material moves in a high speed between the rotor and stator, what can engender a strong hydraulic shear power to dispersing materials, meanwhile it can engender centrifugal power to extrude, milling, crash the material, ultimately make the material mixing, stirring, diminution to the desired requirements. A lighting hole on the pot cover to observe the states of homogeneity. Entrance for spots of material provide possibility to add essence and suchlike materials. Either pour-out the material by tilting the pot or from the bottom, the latter way can make the materials enter the filling machine directly for quantitative filling. Easy to clean.
Control System: The control system is equipped with digital time relay device, so it can adjust time and speed of homogenizer based on different material. All control buttons are concentrated together,clear at a glance.
II. Machinery Main Parts

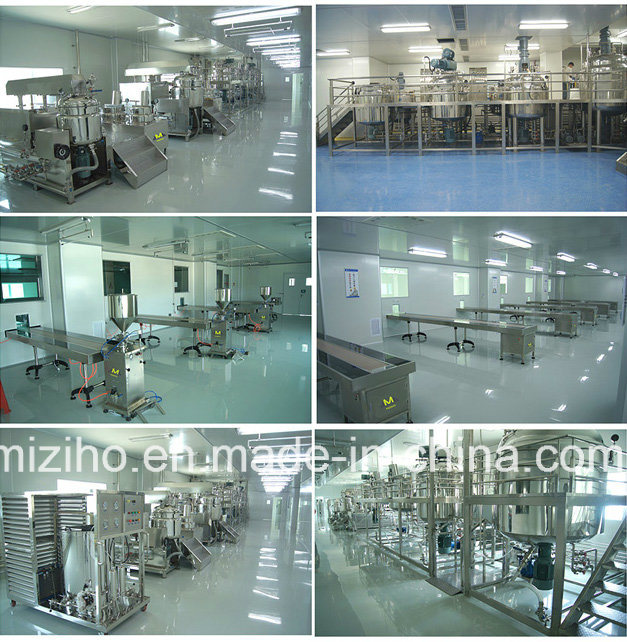

III. Our Factory
IV. The Main Project
V. After Sale Service
1. Warranty time: One year guaranteed for quality, product whole life service any damage except the wrong operation during warranty. Period is repaired freely, But the travel and hotel expenses should
be count on buyer.
2. Commissioning services: The product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3. Traning Services: Our engineers will train your staff in your factory or video to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4. Manintenance Services: Any malfunction happened, Once you inquiry us, We will reply you within
24 hours.
5. The File: The manual specification, report of the material which used to the equipment and other documents video related to GMP authentication information will be provided by us.
VI. FAQ
1. Q: Are you factory or trading company?
A: We are the professional manufacture of cosmetic machinery in China more than 10years.
2. Q: Where is your location?
A: Company and Showroom located in Guangzhou china, Factory located in Jiangsu and Shanghai
Province.
3. Q: Are your engineer be able to serve in oversea?
A: Yes, we have a lot of experience install the machine in oversea.
4. Q: What is your material of your product?
A: adopt with full stainless steel 304-2b and 316L
5. Q: How does your factory do regarding quality control?
A: Two years spare parts,and full-life service of our machinery.
Our Company to customer satisfaction for the development of three goals: Product quality, Product technology and After-sales service.
Machine Description
MZH-V300L Vacuum homogeneous mixer consists of: oil tank, water tank, vacuum homogeneous emulsifying machine, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet, piping system. It is the most suitable equipment to produce high-grade skin care creams or other creams product
The material moves in a high speed between the rotor and stator, what can engender a strong hydraulic shear power to dispersing materials, meanwhile it can engender centrifugal power to extrude, milling, crash the material, ultimately make the material mixing, stirring, diminution to the desired requirements. A lighting hole on the pot cover to observe the states of homogeneity. Entrance for spots of material provide possibility to add essence and suchlike materials. Either pour-out the material by tilting the pot or from the bottom, the latter way can make the materials enter the filling machine directly for quantitative filling. Easy to clean.
Control System: The control system is equipped with digital time relay device, so it can adjust time and speed of homogenizer based on different material. All control buttons are concentrated together,clear at a glance.
| MZH-300L Vacuum Emulsifying Mixer | |||
| NO | Name | Technical parameters | Main brand |
| 1 | Main pot | Design volume: 375L Working volume:350L | |
| 2 | Material &Thickness | Inner Layer:8mm (Polishing: 400MESH) Cover: 6mm, Stirring blade: 12mm, | SUS316L |
| Middle Layer: 8mm; | SUS 304-2B | ||
| Cotton insulation is expanded perlite | |||
| Out Layer: 3mm (Polishing:400MESH) | SUS 304-2B | ||
| Pot Bottom: Discharge hole, Temperature detection hole. | |||
| 3 | Stirring Way | Anchor agitator stirring scraper | SUS316L |
| Scraping blade PTFE material, snapping stirring the pot wall, so the material does not stick pot wall mixed. | |||
| Bottom temperature probe bulb to 20mm can accurately measure the temperature of the material. Temperature Sensor. | Omron | ||
| Up-mixing Motor: 4 KW; | ABB | ||
| Up-mixing Frequency control: 0~63r/min | Panasonic | ||
| 4 | Homogeneous | Homogenizer as SUS 316L solid stainless steel material, by laser machining process from several species such as helical vane cavity structure and the special work in strict accordance with Japan technology to produce high precision, strong shear. | Japan Technology |
| Homogenizer Motor :7.5KW | ABB | ||
| Homogenizer Inverter: 0-3600r/min | Panasonic | ||
| 5 | Sealing | Dharma Blue sealed with silicone rubber O-ring | Burgmann |
| Homogenizer using the world famous German high-speed Mechanical seal Burgmann. | Burgmann | ||
| 6 | Heating way | Steam heating, Water test pressure 0.4Mpa,working Pressure<0.15-0.25Mpa | |
| 7 | Discharge way | Spout with sanitary pot bottom valve. | |
| Can through Variety pump discharge. | |||
| 8 | Electric Box | Electrical control box for the SUS304-2B, Appearance of sand board. | |
| Main Eectric elements of world brand; Button by Japan Fuji, Schneider or Omron for Meter and Sensor. One the control panel should be able to adjust and display the stirring speed, The pot temperature, The Temperature of the upper and lower limits control, Emulsification time and slow mixing time settings and other functions. | Main electric Schneider | ||
| Net weight | 1350kg(Only for standard equipment) | ||
| Power V. | 480V,60HZ | ||
| GMP Standard | Machine platform is welded stainless steel square tube. Welding surface polishing treatment. SUS304-2B Prevent slip Plate on the stirs and platform. |
II. Machinery Main Parts
III. Our Factory
IV. The Main Project
V. After Sale Service
1. Warranty time: One year guaranteed for quality, product whole life service any damage except the wrong operation during warranty. Period is repaired freely, But the travel and hotel expenses should
be count on buyer.
2. Commissioning services: The product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3. Traning Services: Our engineers will train your staff in your factory or video to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4. Manintenance Services: Any malfunction happened, Once you inquiry us, We will reply you within
24 hours.
5. The File: The manual specification, report of the material which used to the equipment and other documents video related to GMP authentication information will be provided by us.
VI. FAQ
1. Q: Are you factory or trading company?
A: We are the professional manufacture of cosmetic machinery in China more than 10years.
2. Q: Where is your location?
A: Company and Showroom located in Guangzhou china, Factory located in Jiangsu and Shanghai
Province.
3. Q: Are your engineer be able to serve in oversea?
A: Yes, we have a lot of experience install the machine in oversea.
4. Q: What is your material of your product?
A: adopt with full stainless steel 304-2b and 316L
5. Q: How does your factory do regarding quality control?
A: Two years spare parts,and full-life service of our machinery.
Our Company to customer satisfaction for the development of three goals: Product quality, Product technology and After-sales service.
