Machine Description:

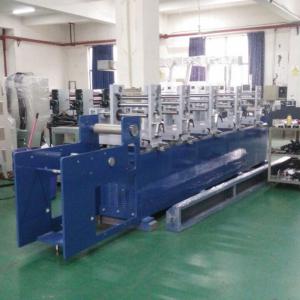

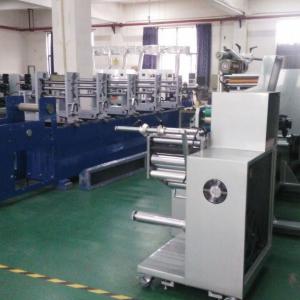

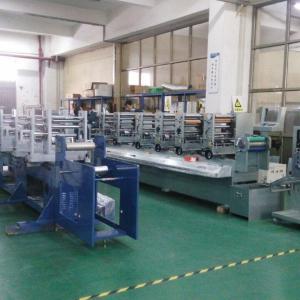

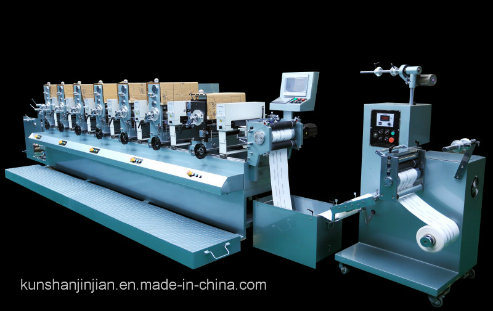

JJ320 Letterpress Intermittent Rotary Label Printing Machine( with laminating)
Machine's Parts:
Main Technical Parameter:
| Items | Specifications | Unit |
| Max paper width | 320 | mm |
| Max intermittent printing size | 300*350 | mm |
| Min intermittent printing size | 50*30 | mm |
| Max full-rotary printing size | 300*408 | mm |
| Max diameter of unfeeding | 800 | mm |
| Max diameter of reweeding | 800 | mm |
| Max printing speed | 11000 | times/h |
| Thickness of printing material | 60-100 | g/m 2 |
| Power | 22 for 6 colors | KW(three phase 380, 50/60HZ) |
| UV | 30 for 6 sets | KW(three phase 380, 50/60HZ) |
| Precision of second printing | 0.03 | mm |
| Dimension of machine | 5100*1620*1680 | mm |
| Machine weight | 6000 | KG |
Charateritics:
1. The Control System: use England TRIO control system, together with CPU via DOS system to control the servo motors, which ensures the machine, high responding, accurate towing, easy operating and safe running.
2. Printing Way: adopt paper reciprocating mode. One printing roller could do the job regardless the repeat size.
3. Printing Unit: Each unit can work independently, which enhance the production efficiency greatly.
4. Auto registration system: can solve the problem of material's snake shape, and make the printing more stable;
5. Lubricating System: The machine uses automatically cycling oil-supply system to ensure the accuracy and service life of the machine.
6. Ink transferring system: Optimization of ink rollers with good transferring ink system that the supply of ink will change proportionally with the speed of the machine.Which can effectively prevent the ink bar marking and ghosting image, to make printing result better;
Optional device:
1.Varnishing device
2.Cold foil device
3.Rubber surface printing device
4.Revesal device
5.Rotary die-cutter
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
