Plastic Drying Machine for Plastic Pellets Material

Plastic drying machine for plastic pellets material Description for vertical plastic mixer dryerThe Plastic mixer is widely used in mixing, drying, coloring all kinds of resin such as PVC, PP, PE. Feature : 1. Stir vanes and barrels are made of s

Technical Feature

  • Shanghai, China
  • 500 Sets/Year
  • T/T
  • Plastic Granules Mixer
  • High Speed Mixer
  • Forced
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~5

PRIMARY PARAMETERS

Model NO.
STG
Layout Type
Verticle
Mixing Drum Shape
Drum
Additional Capabilities
Drying
Operating type
Continuous Operating
Condition
New
Function
Plastic Drying Machine
Company Brand
Wanrooetech
Drying Method
Hot Air Drying
Control Method
Pid Control
Stir Blades Material
Stainless Steel
Mixing Time Control Method
Timer Equipped
Motor Brand
Optional
Hopper Volume
Can Customade
Power Source
380V50Hz
Guarantee Time
One Year
Trademark
WANROOE
Transport Package
Wooden Case
Specification
DEPENDS
Origin
Jiangsu
HS Code
84778000

DETAIL DESCRIPTION

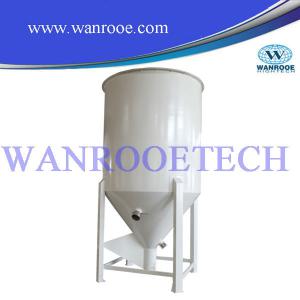

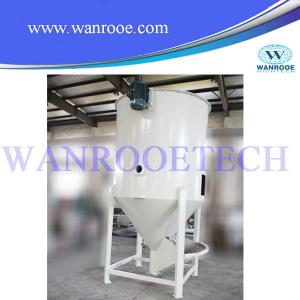

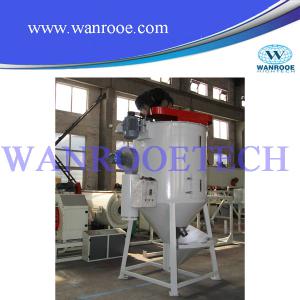

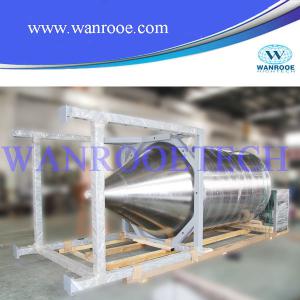

Plastic drying machine for plastic pellets material

Description for vertical plastic mixer dryer
The Plastic mixer is widely used in mixing, drying, coloring all kinds of resin such as PVC, PP, PE.

Feature :

1. Stir vanes and barrels are made of stainless steel

2. Stir vanes are convenient to be loaded and unloaded  easy to be cleaned

3. Close stirring, safe and reliable

4. Complete mixing in a short time

5. Timer is equipped to adjust mixing time freely

6. Material tank and propeller blades are made of stainless steel, eliminating rust corrosion and easy to wash
7. The frame is of framework design, solid and durable
8.Propeller is wholly processed after welding, with high concentricity and steedy operation
9.The standing operation allows little space

10. Mixing in a sealed manner, uniform mixing and no leakage definitely

Technical parameter

Model

Capacity
(kg)

Volume
(L)

Heating power(kw)

Blower power(kw)

Stirring power(kw)

Feeding power(kw)

STG-U500

500

1000

18

0.37

1.1

0.75

STG-U1000

1000

2000

24

0.55

1.5

0.75

STG-U2000

2000

4000

30

1.1

2.2

0.75

STG-U3000

3000

6000

36

1.5

2.2

1.1

STG-U5000

5000

10000

42

2.2

3.0

1.1
