Zjr Cream Vacuum Emulsification mixing machine
Introduction:
ZJR vacuum homogenous emulsifying machine is the featured product of Nuoya machinery Co.
It uses the principle of emulsifying with oil and water to achieve high quality emulsifying effect.The machine fits the standard of GMP and suitable for making cream, ointment,paste and so on.
Features:
includes oil pot,water pot,emulsifying pot, operation platform and control cabinet
jacketing heating system with oil pot,water pot and emulsifying pot
dischargeing by dumping or outflow from bottom valve
hydraulic lifting and descending
high effcient homogeneous and emulsifying function
vacuum condition to make bubbles sucked out from material
easy operation and long working life
as customized
For more models not listed,please contact me directly
Technical parameters:
Type | Type500 | Type650 | Type1000 | |
| Emulsifying Pot | Design Volume(L) | 500 | 650 | 1000 |
| Capacity(L) | 400 | 520 | 800 | |
| Scraper Stirring Power(kw) | 3 | 3 | 7.5 | |
| Scraper Stirring Speed(kw) | 10~120 | 5~60 | 5~60 | |
| Cut-off Mixing Power(kw) | 7.5 | 7.5 | 11 | |
| Cut-off Mixing Diameter() | 150 | 150 | 250 | |
| Cut-off Mixing Speed(rpm) | 1000~3300 | 1000~3300 | 1000~3300 | |
| Water Pot | Design Volume(L) | 300 | 400 | 600 |
| Capacity(L) | 250 | 320 | 480 | |
| Stirring Power(kw) | 1.1 | 1.1 | 1.5 | |
| Stirring Speed(rpm) | 60~1000 | 60~1000 | 60~1000 | |
| Oil Pot | Design Volume(L) | 250 | 300 | 500 |
| Capacity(L) | 200 | 240 | 800 | |
| Stirring Power(kw) | 1.1 | 1.1 | 1.5 | |
| Stirring Speed(rpm) | 60~1000 | 60~1000 | 60~1000 |

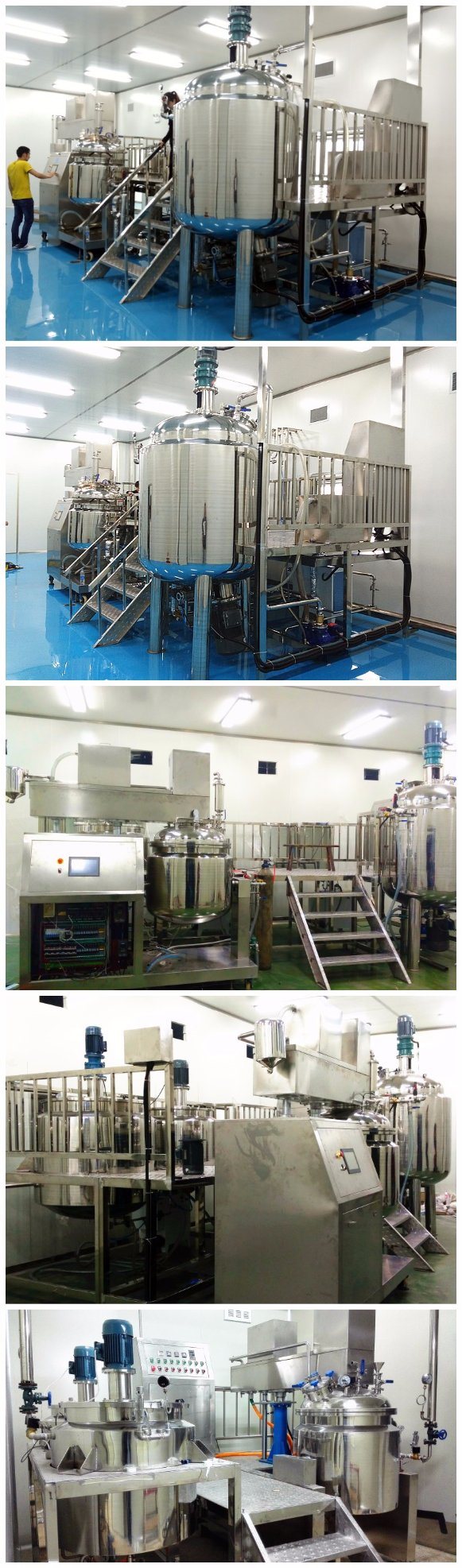

More pictures:
Application scope:
Daily chemical and cosmetics industry:
baby cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream, face cleanser, moisture cream, detergent,etc
Pharmacy industry:
emulsion, emulsifier, ointment, syrup etc
Food industry:
sauce,juice, cheese, oral syrup, nutrient solution, infant food, chocolate, saccharine etc
Chemical industry:
latex, paint, resin, adhesives, lubricating agent etc
