37 Experience,founded in Taiwan
European Technology Cooperation, Building Top Quality,ISO,SGS,CE certificate.
Characteristics:

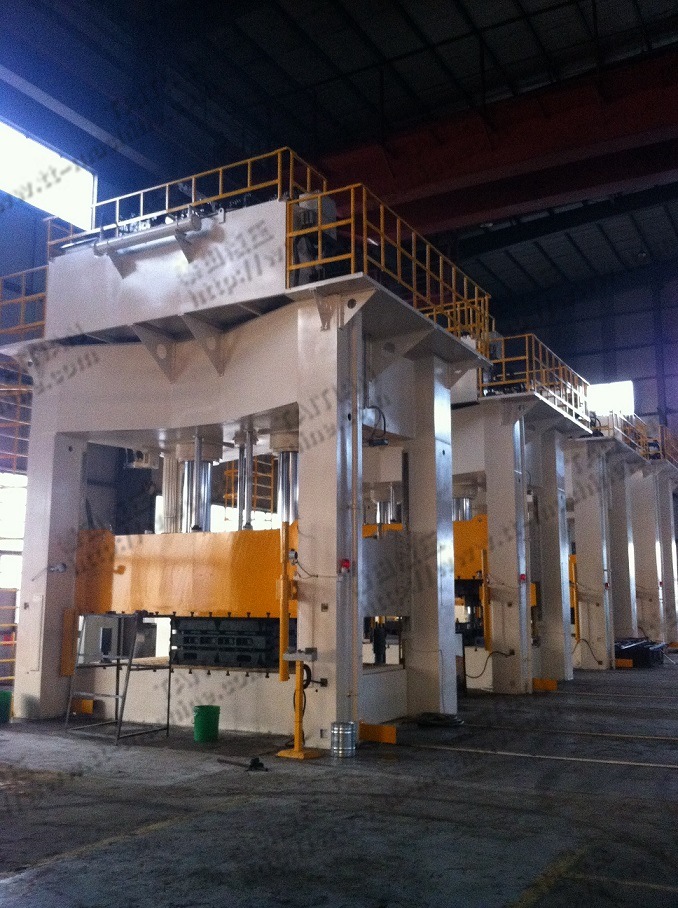

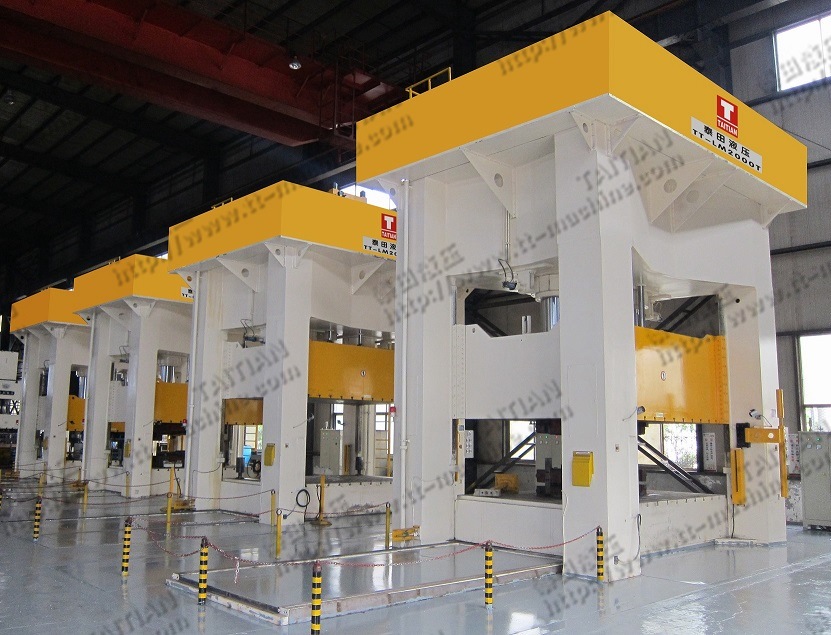

1. Such hydraulic deep drawing press is specially designed with good precision and excellent performance, for deep drawing and forming metal sheets. The capacity ranging from 100 Tons to 2000 Tons is available as per customers' demands.
2. Safe and reliable electric control system makes operation simple and easy.
3. Safe and precise control system is easy to handle and works with high efficiency.
4. Systemized and logic hydraulic circuit is designed with leak-prevention, anti-vibration and easy-maintenance.
5. Each hydraulic press is manufactured under strict quality control management to assure the best performance and accuracy.
Application:
Stamping and deep drawing of metal sheets.
Options:
Digital Control, Common Control;
Slow Speed, Medium Speed, Fast Speed;
Water Cooler, Air Cooler, Forced Chiller;
Die Change/Die Clamp Device;
Interval Lubrication, Cycle Lubrication;
Upper Ejector, Bottom Ejector;
Right/Left Stamping Damper Cylinders.
| Technical Specifications | ||||||||||
| Model | Capacity (T) | Table Size(FB× LR) (mm) | Daylight(B) (mm) | Stroke (C) (mm) | Approach Speed (mm/sec) | Pressing Speed (mm/sec) | Return Speed (mm/sec) | Cushion Capacity (T) | Cushion Stroke (mm) | Motor (HP) |
| TT-LM100 | 100 | 800× 1000 | 650 | 500 | 300 | 9/25 | 220 | 30 | 200 | 15× 6 |
| TT-LM150 | 150 | 900× 1200 | 800 | 600 | 300 | 10/30 | 235 | 60 | 250 | 20× 6 |
| TT-LM200 | 200 | 1000× 1200 | 950 | 700 | 300 | 10/25 | 250 | 70 | 250 | 25× 6 |
| TT-LM250 | 250 | 1000× 1500 | 950 | 700 | 300 | 7.5/25 | 250 | 100 | 300 | 30× 6 |
| TT-LM300 | 300 | 1200× 1500 | 1100 | 800 | 300 | 7/20 | 250 | 100 | 300 | 30× 6 |
| TT-LM400 | 400 | 1200× 1800 | 1100 | 800 | 300 | 8/20 | 250 | 150 | 350 | 40× 6 |
| TT-LM500 | 500 | 1200× 1800 | 1100 | 800 | 300 | 8/20 | 250 | 150 | 350 | 50× 4 |
| TT-LM600 | 600 | 1500× 2000 | 1250 | 900 | 300 | 8/20 | 250 | 200 | 400 | |
| TT-LM800 | 800 | 2000× 2500 | 1500 | 1000 | 300 | 7/16 | 240 | 250 | 400 | 75× 4 |
| TT-LM1000 | 1000 | 2500× 3000 | 1700 | 1200 | 300 | 7/14 | 250 | 350 | 500 | 100× 4 |
| TT-LM1500 | 1500 | 2500× 3200 | 2000 | 1500 | 300 | 6/12 | 240 | 450 | 600 | 75× 4/2sets |
| TT-LM2000 | 2000 | 2600× 3500 | 2100 | 1500 | 300 | 6/12 | 240 | 600 | 800 | 100× 4/2sets |
