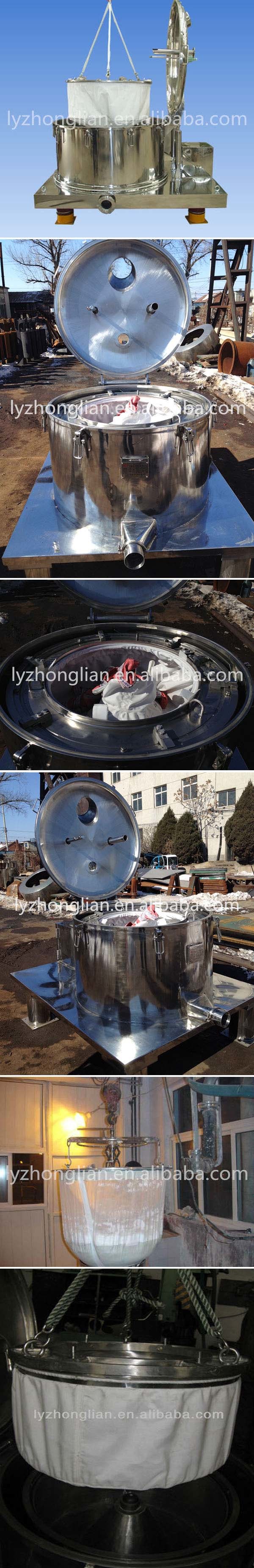

Pd1000 Series Flat Lift Bag Basket Filter Centrifuge
Technological Parameter:
Main Features:
Start with frequency converter for stepless speed regulation, with a PLC (programmable logic controller) to start steadily, expan of the scope, with the main control cabinet and field proof auxiliary control panel,it can be operated two places, improve security, no basis for the installation, eliminating the conventional hanging machine feet, simplify the installation process. No base plate weight and the selection of isolator types of damping system that allows devices to be completely absorbing vibrations generated by change. On the basis of the ground and the surrounding non-interference.
Shell structure for the flip, the shell and bowl's sandwich can be thorough cleaning l. Structural design is reasonable, more comprehensive cleaning and sterilization. Particularly difficult to adapt materials for the staff contact, high cleanliness, strict washing demanding, high grade solid-liquid separation in explosion-proof. Lifting bag discharge, can be discharged remotely, improve efficiency, reduce labor intensity, environmental conditions fully comply with GMP standards.
Main Purpose:
Applies to both solid phase for the granular filtering, it can be used for dewatering of fibrous material, particularly filtation of high viscosity, fine particle size, toxic and hazardous, flammable materials.s For example, gypsum, thiamine, Glauber's salt, copper sulfate, nickel sulfate, a chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw materials, fertilizer, oil, all kinds of resin, salt, MSG, food additives, starch sugar, vitamins, antibiotics and other drugs, herbicides, insect repellents, copper, zinc, aluminum ore dehydration, metal refining, volleyball acid plaster, water treatment.
Structure and Principle:
The bowl is driven by a main motor which is controlled by a variable frequency regulator with stable start through V-belt, and rotates around its own axis at a high speed and forms centrifugal force field .The stock flows into the bowl lined a filtering bag from the upper feeding pipe and is forced to be distributed on the bowl by the centrifugal force.after centrifuged and filterd.The liquid passes through crevice of filtering bag and then out of the hollow of housing.And is discharged floe liquid outlet. The solid phase in the filtering bag.Open the machine cover and lift the bag out of the machine put it at the place to discharge.It is equipped with a flushing pipe for flushing it.
Company Information
we are the factory in China for over 10years of making centrifugal separator machines and
pharmaceutical machinery, our machine is professionally for liquid-solid and liquid-liquid-solid separating.such as medicine separating, the oil water separating, blood separating, herbal
extraction separating, etc..it is wildly used in pharmaceutical, industry, and food field.
Technological Parameter:
| Diameter(mm) | 1000 |
| Speed(r/min) | 0~1000 |
| Separation Factor | 600 |
| Max. Capacity(kg) | 250 |
| Max.Volume(L) | 240 |
| Motor(kw) | 11 |
Main Features:
Start with frequency converter for stepless speed regulation, with a PLC (programmable logic controller) to start steadily, expan of the scope, with the main control cabinet and field proof auxiliary control panel,it can be operated two places, improve security, no basis for the installation, eliminating the conventional hanging machine feet, simplify the installation process. No base plate weight and the selection of isolator types of damping system that allows devices to be completely absorbing vibrations generated by change. On the basis of the ground and the surrounding non-interference.
Shell structure for the flip, the shell and bowl's sandwich can be thorough cleaning l. Structural design is reasonable, more comprehensive cleaning and sterilization. Particularly difficult to adapt materials for the staff contact, high cleanliness, strict washing demanding, high grade solid-liquid separation in explosion-proof. Lifting bag discharge, can be discharged remotely, improve efficiency, reduce labor intensity, environmental conditions fully comply with GMP standards.
Main Purpose:
Applies to both solid phase for the granular filtering, it can be used for dewatering of fibrous material, particularly filtation of high viscosity, fine particle size, toxic and hazardous, flammable materials.s For example, gypsum, thiamine, Glauber's salt, copper sulfate, nickel sulfate, a chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw materials, fertilizer, oil, all kinds of resin, salt, MSG, food additives, starch sugar, vitamins, antibiotics and other drugs, herbicides, insect repellents, copper, zinc, aluminum ore dehydration, metal refining, volleyball acid plaster, water treatment.
Structure and Principle:
The bowl is driven by a main motor which is controlled by a variable frequency regulator with stable start through V-belt, and rotates around its own axis at a high speed and forms centrifugal force field .The stock flows into the bowl lined a filtering bag from the upper feeding pipe and is forced to be distributed on the bowl by the centrifugal force.after centrifuged and filterd.The liquid passes through crevice of filtering bag and then out of the hollow of housing.And is discharged floe liquid outlet. The solid phase in the filtering bag.Open the machine cover and lift the bag out of the machine put it at the place to discharge.It is equipped with a flushing pipe for flushing it.
Company Information
we are the factory in China for over 10years of making centrifugal separator machines and
pharmaceutical machinery, our machine is professionally for liquid-solid and liquid-liquid-solid separating.such as medicine separating, the oil water separating, blood separating, herbal
extraction separating, etc..it is wildly used in pharmaceutical, industry, and food field.
