P10 Outdoor Waterproof Flexible LED Screen with adjustable arc
Description:

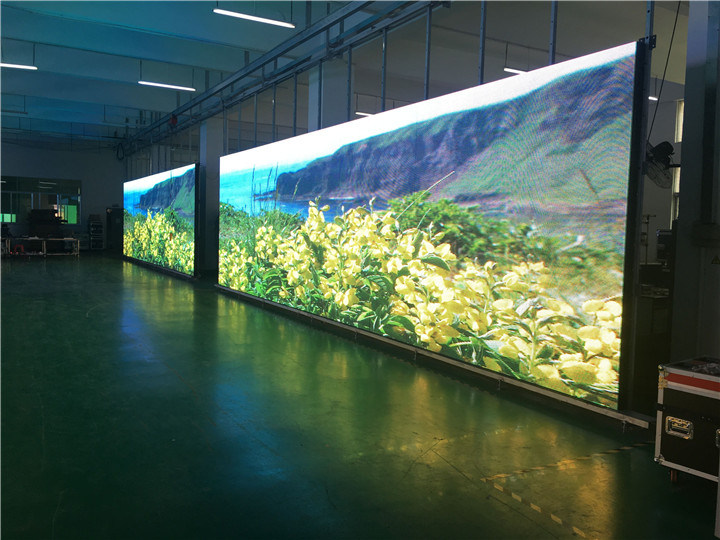

This is our Curved design LED screen , we can make the shape according to the installation evironment. It can be outter curved , inner curved , wave shape ,etc .
Features:
1. It can be curved as well as flat
2. Good display performance and competitive price
3. High pixel density, High definition, Good uniformity
4. Good waterproof IP65 standard,suit to any weather(rain,sunny,daytime, night)
5. High brightness, over 7500 nits
Specifications:
Applications:
Shopping Mall , Airport , Banks ,advertising media, sports stadiums, station, business establishments, public area.
Product details:
Description:
This is our Curved design LED screen , we can make the shape according to the installation evironment. It can be outter curved , inner curved , wave shape ,etc .
Features:
1. It can be curved as well as flat
2. Good display performance and competitive price
3. High pixel density, High definition, Good uniformity
4. Good waterproof IP65 standard,suit to any weather(rain,sunny,daytime, night)
5. High brightness, over 7500 nits
Specifications:
| Model | P10 SMD3535 outdoor flexible LED screen |
| Pixel pitch | 10mm |
| Pixel density | 10000 dots /sqm |
| Module size(W*H) | 160 mm(width)*160 mm(height) |
| Module pixels(W*H) | 16 dots *16 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/2scan |
| LED lamp type | Water-proof SMD3535 |
| Cabinet size(W*H*D) | 960mm*960mm |
| Color scale | 65,536 degree |
| View angle(H/V) | 120/120 degree |
| Brightness (White balance) | about 7500cd/sqm. |
| Power consumption(one cabinet) | Max:750W/sqm. Average:200W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 60Kg/sqm (iron cabinet), 40Kg/sqm (Aluminum cabinet) |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 47--63Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protection grade | IP65 |

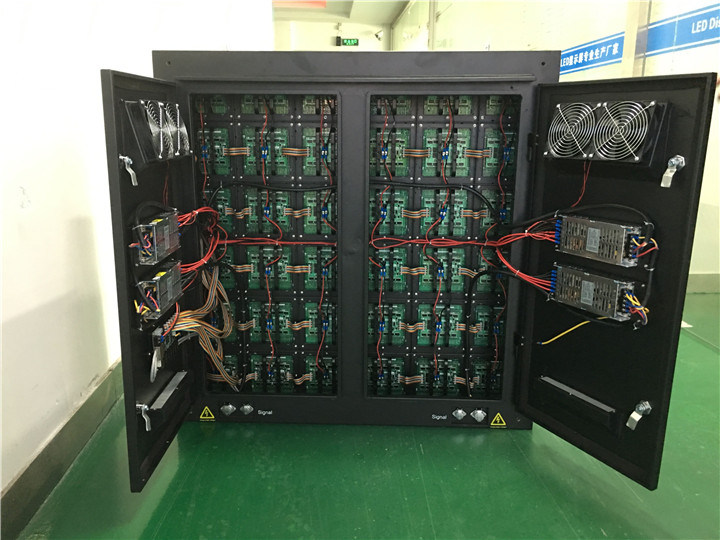

| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
Applications:
Shopping Mall , Airport , Banks ,advertising media, sports stadiums, station, business establishments, public area.
