Stainless Steel Sanitary Tri-Lobe Rotor Pump Without Motor
Application:
| Food Industry: | Yogurt,Fresh Butter,Ice Cream,Cheese,Whey,Beer,Wort,Yeast,Soft Drink,Fruit Jelly, Fruit Drink,Ketchup,Fruit Puree,Vegetable Mash,Pudding,Fruit Jam,Jelly, Flavor,Fruit Stuffing,Sweet, Yeast,Seasoning,Bread,Meat Gruel,Comminuted Meat,Meat Oil,Edible Oil,Candy,Syrup,Thin Cream Dressing,Chocolate,Etc. |
| Daily Chemicals: | Cleansing Facial Milk,Hair Gel,Hair Dyes,Essence Oil,Toothpaste,Detergent, Shampoo,Shoe Polish,Cosmetics,Perf-umery Compound,Soap,Balsam,Etc. |
| Pharmacy: | Various Pill,Paste,Emulsifier,Syrup,Nutrition Liquid,Chinese Traditional Patent Medicine, Medicine Grease,Biological Products,Fish Meal,Pollen,Royal Jelly,Vaccine. |
| Chemical Industry: | Fat,Dissolvent,Resin,Polymer,Paint,Pigment,Dyes,Coating Material,Lubricant, Lubricating Grease,Oil Agent,Emulsified Asphalt,Adhesive,Plastic,Explosives,Glass Fiber Reinforced Plastics,Leather,Etc. |
| Construction Industry: | Various Coating,Including Indoor/outdorr Wall Coating,Corrosi on And Water Proof Coating,Ceramic Coating,Paint Coating,Ceramic Glazing,Etc. Other Industries: Plastic Industry,Textile Industry,Papermaking Industry,Coal Floatation Agent, Nanometer Material,Biochemical Industry |
Operation Principle:
Rotor pump is also named rotary lobe epump,three-lobe pump,sole pump,etc.When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve,it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.
Main Parameter:
| Model | Flow per 100 Rotation(L) | Suggestion Rotation Speed(RMP) | Capacity(L/H) | Power(KW) |
| ZB3A-3 | 3 | 200-500 | 300-800 | 0.55 |
| ZB3A-6 | 6 | 200-500 | 650-1600 | 0.75 |
| ZB3A-8 | 8 | 200-500 | 850-2160 | 1.5 |
| ZB3A-12 | 12 | 200-500 | 1300-3200 | 2.2 |
| ZB3A-20 | 20 | 200-500 | 2100-5400 | 3.0 |
| ZB3A-30 | 30 | 200-400 | 3200-6400 | 4 |
| ZB3A-36 | 36 | 200-400 | 3800-7600 | 4 |
| ZB3A-52 | 52 | 200-400 | 5600-11000 | 5.5 |
| ZB3A-66 | 66 | 200-400 | 7100-14000 | 7.5 |
| ZB3A-78 | 78 | 200-400 | 9000-18000 | 7.5 |
| ZB3A-100 | 100 | 200-400 | 10000-22000 | 11 |
| ZB3A-135 | 135 | 200-400 | 15000-30000 | 15 |
| ZB3A-160 | 160 | 200-400 | 17000-34000 | 18.5 |
| ZB3A-200 | 200 | 200-400 | 21600-43000 | 22 |

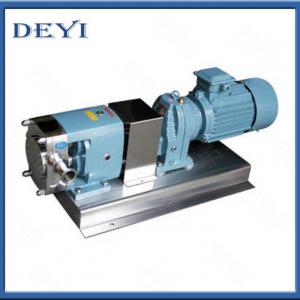

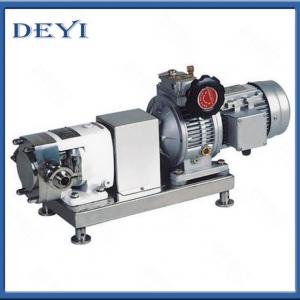

Lober pump pictures:
Packaging & Shipping:
Port:Shanghai Port or Ningbo Port,China
MOQ:1Set
Supply ability:1,000 Sets/month
Payment terms:T/T,Western Union, Paypal, L/C
Packaging:in seaworthy wooden cased
Delivery time:Depends on quantity
Shipping mode:By sea,by air,by express
