Products Name:Zb3a-3 0.55kw Stainless Steel Hygienic Sanitary Rotary Lobe Pump
Food Industry:Yogurt,Fresh Butter,Ice Cream,Cheese,Whey,Beer,Wort,Yeast,Soft Drink,Fruit Jelly, Fruit Drink,Ketchup,Fruit Puree,Vegetable Mash,Pudding,Fruit Jam,Jelly, Flavor,Fruit Stuffing,Sweet, Yeast,Seasoning,Bread,Meat Gruel,Comminuted Meat,Meat Oil,Edible Oil,Candy,Syrup,Thin Cream Dressing,Chocolate,Etc.Daily Chemicals:Cleansing Facial Milk,Hair Gel,Hair Dyes,Essence Oil,Toothpaste,Detergent, Shampoo,Shoe Polish,Cosmetics,Perf-umery Compound,Soap,Balsam,Etc.
Pharmacy:Various Pill,Paste,Emulsifier,Syrup,Nutrition Liquid,Chinese Traditional Patent Medicine, Medicine Grease,Biological Products,Fish Meal,Pollen,Royal Jelly,Vaccine.
Chemical Industry: Fat,Dissolvent,Resin,Polymer,Paint,Pigment,Dyes,Coating Material,Lubricant, Lubricating Grease,Oil Agent,Emulsified Asphalt,Adhesive,Plastic,Explosives,Glass Fiber Reinforced Plastics,Leather,Etc.
Construction Industry:Various Coating,Including Indoor/outdorr Wall Coating,Corrosi on And Water Proof Coating,Ceramic Coating,Paint Coating,Ceramic Glazing,Etc.
Other Industries: Plastic Industry,Textile Industry,Papermaking Industry,Coal Floatation Agent, Nanometer Material,Biochemical Industry

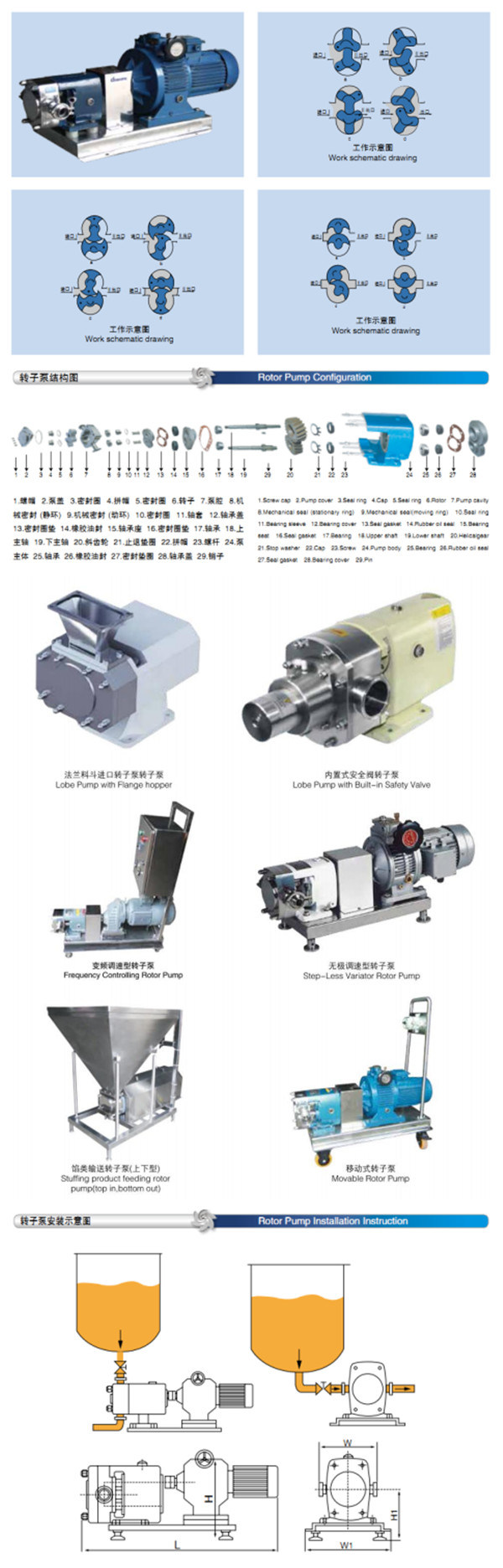

Operation Principle:
Rotor pump is also named rotary lobe epump,three-lobe pump,sole pump,etc.When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve,it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.
Main Parameter
| Model | Flow per 100 Rotation(L) | Suggestion Rotation Speed(RMP) | Capacity(L/H) | Power(KW) |
| ZB3A-3 | 3 | 200-500 | 300-800 | 0.55 |
| ZB3A-6 | 6 | 200-500 | 650-1600 | 0.75 |
| ZB3A-8 | 8 | 200-500 | 850-2160 | 1.5 |
| ZB3A-12 | 12 | 200-500 | 1300-3200 | 2.2 |
| ZB3A-20 | 20 | 200-500 | 2100-5400 | 3.0 |
| ZB3A-30 | 30 | 200-400 | 3200-6400 | 4 |
| ZB3A-36 | 36 | 200-400 | 3800-7600 | 4 |
| ZB3A-52 | 52 | 200-400 | 5600-11000 | 5.5 |
| ZB3A-66 | 66 | 200-400 | 7100-14000 | 7.5 |
| ZB3A-78 | 78 | 200-400 | 9000-18000 | 7.5 |
| ZB3A-100 | 100 | 200-400 | 10000-22000 | 11 |
| ZB3A-135 | 135 | 200-400 | 15000-30000 | 15 |
| ZB3A-160 | 160 | 200-400 | 17000-34000 | 18.5 |
| ZB3A-200 | 200 | 200-400 | 21600-43000 | 22 |
Port:Shanghai Port or Ningbo Port,China
MOQ:1Set
Supply ability:1,000 Sets/month
Payment terms:T/T,Western Union, Paypal, L/C
Packaging:in seaworthy wooden cased
Delivery time:Depends on quantity
Shipping mode:By sea,by air,by express
Wenzhou Xusheng Machinery Industry Co.,Ltd is a comprehensive and professional manufacturer,being integrating in designing, developing, manufacturing.
We specialize in sanitary valves,pipe fittings and pumps,which is applied for milk,food,beer,pharmaceutical and other fields.We can quote you favourable price&high quality&best after-sale services.Welcome to visit our factory
1.Sanitary valve
Sanitary Butterfly Valves
Sanitary Check Valves
Sanitary Ball Valvess
Sanitary Reversal Valve
Sanitary Diaphragm Valves
Sanitary Sample Valves
Sanitary Safety Valves
Sanitary Control Valves
Sanitary Relief Pressure Valves
2. Sanitary Pipe Fittings
Sanitary Elbow
Sanitary TeeSanitary Reducer
Sanitary Cross
Sanitary Triclamp Ferrule
Sanitary Cap
Sanitary Pipe Hanger
Sanitary Tank Cleaning Ball
Sanitary Hose Joint
Sanitary Unions
Sanitary Sight Glass
Sanitary Strainer
3. Sanitary Manways
Sanitary Round Manway without Pressure
Sanitary Round Manway with Pressure
Sanitary Square Manway
Sanitary Oval Manway
4. Sanitary Pumps

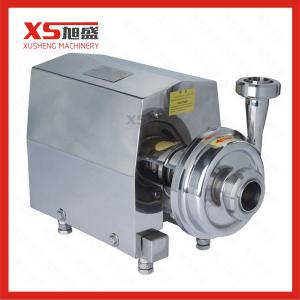

Sanitary Centrifugal PumpSanitary Lobe Pump
Sanitary Self Priming Pump
5.Sanitary Tanks
Storage Tank
Fermentation Tank
Mixing Tank
Warm-keeping Tank
6.Sanitary Tube
Seamless Tube
Weldless Tube
7.Sanitary Gasket
Silicone/EPDM Gasket for Triclamp
Silicone/EPDM Gasket for Union
Silicone/EPDM Gasket for Butterfly Valve
Silicone/EPDM Gasket for Manhole Cover
Welcome to contact us for Zb3a-3 0.55kw Stainless Steel Hygienic Sanitary Rotary Lobe Pump
Contact:Ms.Sysyy Liu
Mobile:0086-13587646794
China
