Automatic Ion Dual-Valve and Dual-Tank Boiler Water Softener Water Treatment
Detailed Product Description1. Wide applications
2. Simple operation
3. Automatic valve control

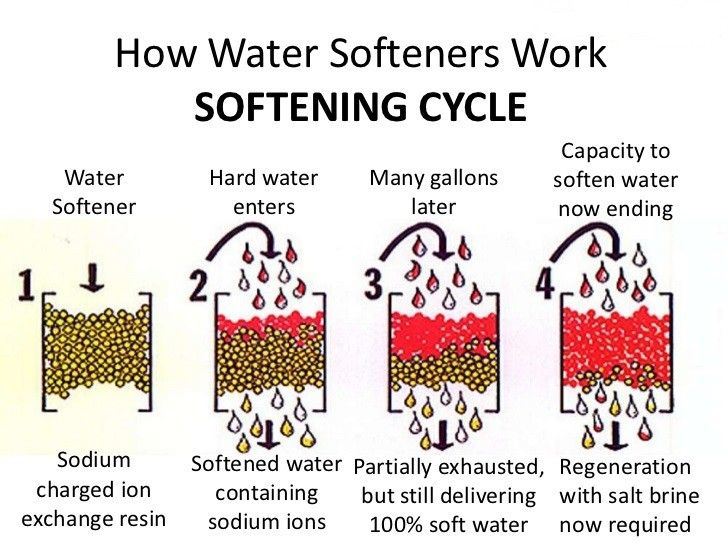

Working principle:
01. Absorb the calcium and magnesium ions in water with resin, since the hardness of water is mainly composed of calcium and magnesium, in general, we adopt cation exchange resin (softener), replace Ca2+, Mg2+ (main ingredients for scale ) in water with the Ca2+, as the increase of Ca2+ and Mg2+ in resin, removing performance on Ca2+, Mg2+ of resin will gradually reduce.
02. When the resin has absorbed a certain amount of calcium and magnesium ions, it must be birth, the regeneration process is that flush resin layer with the salt water in salt box, replace hardness ion out of the resin again, and discharged from the tank with waste liquid of regeneration, then resin resumed the function of softening and exchanging.
03. The principle of sodium ion exchange and softening treatment is to exchange cation in the raw water with resin, hardness constituents Ca2+and Mg2+ in water exchange Na+ in resin, thus absorb the Ca2+and Mg2+ to make the water to be softened.
2RNa + Ca2+ = R2Ca + 2Na+
2RNa + Mg2+ = R2Mg + 2Na+
After the water treated by sodium ion exchanger, the Ca+ and Mg+ were superseded by Na +.
Mainly used for industrial and civil water softening preparation, such as Boiler feed water make-up water, air conditioning system, heat exchanger, power plant, chemical, textile, printing and dyeing, pharmaceutical, electronic system and water pretreatment.
(1)Single tank time type, it adopts microcomputer to control the time, when operation of the equipment reaches setting time, it will automatically enter the regeneration stage, which can be recycled and regenerated for once or more times every day.
(2) Single tank flow type, it adopts control of turbine flow or electronic flow sensor, when the yield of softener reaches preset flow it will automatically enter the regeneration stage, which can be recycled many times every day.

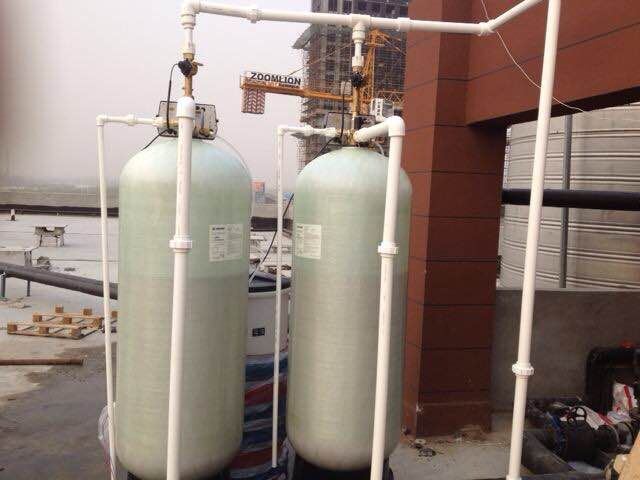

(3) Double tanks flow type, which could be divided into one running-one alternate, and simultaneous running and separately regeneration.
(4) One running and the other alternation type, one tank is running while another is alternating, when water yield of operating tank reaches the preset flow rate, it will enter the regeneration stage, meanwhile, the other tank will enter the working state, these two tanks work and regenerate alternatively to realize continuous water supplying of 24 hours.
(5) simultaneous running and separately regeneration type, two cans running simultaneously, when the flow rate reaches the setting rate, one tank (can) will regenerate and the other tank will output water continuously, when the first regeneration tank finish the regeneration it will enter the working stage, the other one will enter regeneration stage, these two cans finish regeneration and enter working state simultaneously.
Technical parameters:
| Category | Model | Recommended water yield (M³/h) | Tank size Diameter *Height(mm) | Salt box (L) | Amount of resin(KG) |
| Dual-valve and dual-tank (simultaneous operation and respective regeneration) | YL-II-36 | 24-36 | 900×1900 | 800 | 1040 |
| YL-II-50 | 36-50 | 1000×2200 | 1000 | 1440 | |
| YL-II-70 | 50-70 | 1200×2400 | 1500 | 2000 | |
| YL-II-100 | 70-100 | 1500×2500 | 2000 | 3200 | |
Dual-valve and dual-tank(One for use and the other for standby) | YL-II-1 | 1 | 250×1400 | 60 | 80 |
| YL-II-2 | 2 | 300×1400 | 100 | 120 | |
| YL-II-3 | 3 | 350×1400 | 100 | 160 | |
| YL-II-4 | 4 | 400×1650 | 200 | 240 | |
| YL-II-5 | 5 | 500×1750 | 300 | 360 | |
| YL-II-6 | 6 | 600×1900 | 350 | 480 | |
| YL-II-10 | 8-10 | 750×1900 | 500 | 720 | |
| YL-II-18 | 12-18 | 900×1900 | 800 | 1040 | |
| YL-II-25 | 18-25 | 1000×2200 | 1000 | 1440 | |
| YL-II-35 | 25-35 | 1200×2400 | 1500 | 2000 | |
| YL-II-50 | 35-50 | 1500×2500 | 2000 | 3200 |
