Features
WB-NCxxxx67B cabinet is a standardized enclosure for mounting data and telecommunication devices and their distribution systems.
19" rack mountable, Universal structure - possible of max the load capacity up to 800KG.
Front & back door earthing.
45% effective ventilation rate.
Doors

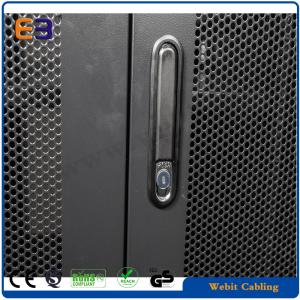

Front single perforated (hexagonal) door - swing handle lock.
Back double perforated door with 2-point lock.
Removable side panel , optional lock.
Accessories

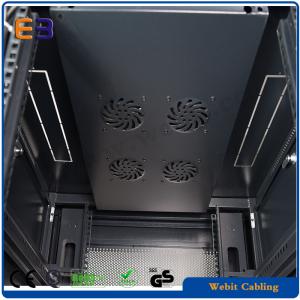

AC Fan-tray (2 or 4 fans) - as per depth

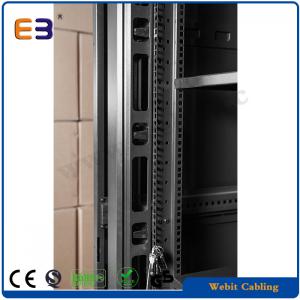

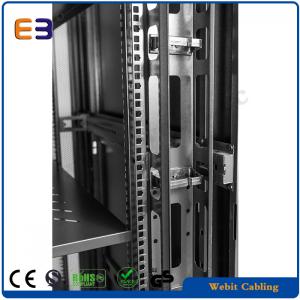

4× position-adjustable 19 " mounting rail.
300/600KG capacity wheels and adjustable feet.
20 sets of extra M6 caged screws.
Cable entrance
Top - 1 * 400×50mm rectangle cable entrance
Bottom - 4* 350×50mm rectangle cable entrance
Can ask for more...
Package
Disassembled packing save 60% volume , allows for convenient stocking.
Webitelecomms neutral carton box packed
Plywood pallet for options
= Varies specification upon customers' special requirements=
Size suggestions
Width: 600,800 mm
Depth: 600,800,1000,1200 mm
Height: 12U, 17U, 22U, 27U, 32U, 37U, 42U, 47U
Customized size is available
Standard and Material:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish: Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Material:SPCC cold rolled steel or EG steel
Thickness
Mounting profile:2.0mm
others:1.20mm to 1.50mm
Cabinet Bearing capacity:600~800KG
IP degree: IP-20
Body color: RAL9004(black);RAL7035(grey),etc

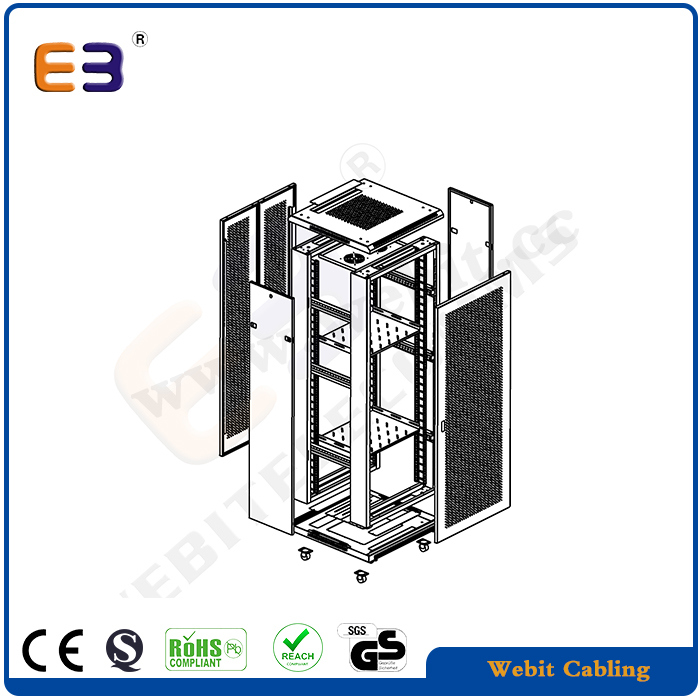

Explosive view

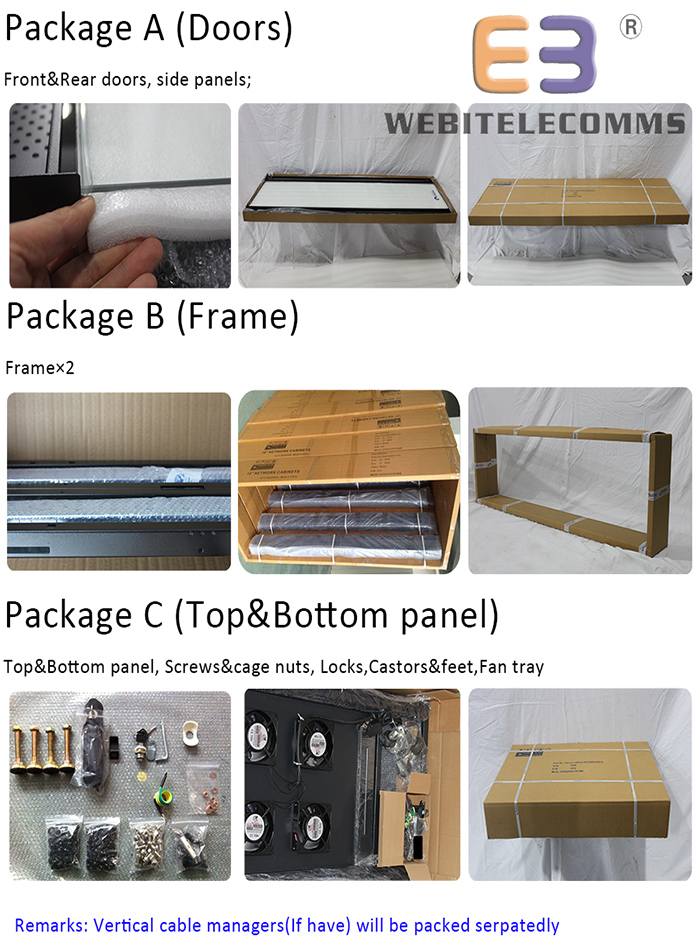

Standard Package
=Shipment & Delivery =
OPERATION CONDITIONS
• Operation environment:
- Office
- The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings).
• Must be protected against:
- Mechanical damage
- Improper handling
- A different usage than the cabinet is intended for
• Improper handling is especially:
- Overloading (maximum recommended load exceeding)
- Device installation that can influence negatively operation and function of the cabinet or the installed equipment
- Change of the construction or design of the cabinet
INSTALLATION OF THE CABINET
• To ensure the maximum recommended load, it is necessary to distribute the load equally.
• Place the cabinet on a flat floor and adjust any differences using the levelling feet.
• To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a blanking panel with a brush or secured by a plastic frame
(both can be purchased from us).
ENVIRONMENTAL PROTECTION
• All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.

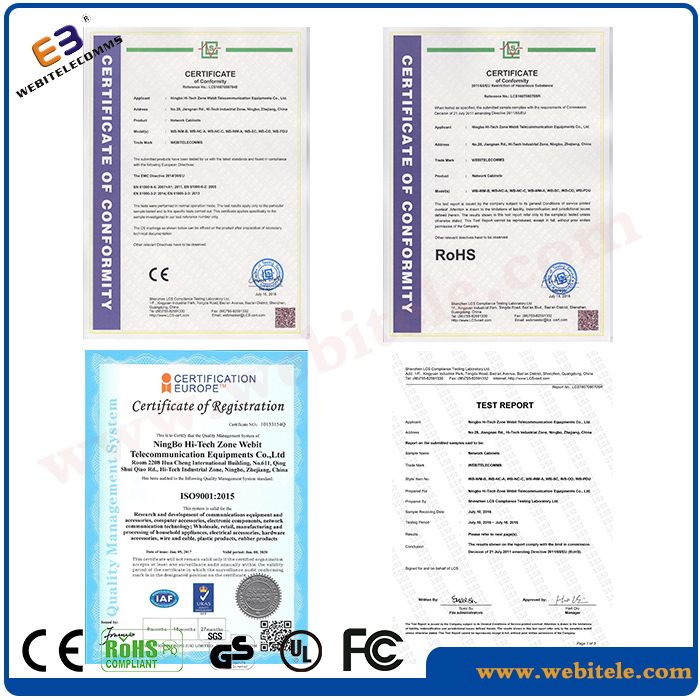

CERTIFICATE AND CONFORMITY
• This product is fully in accordance with CE & RoHS.
Certification:
China
