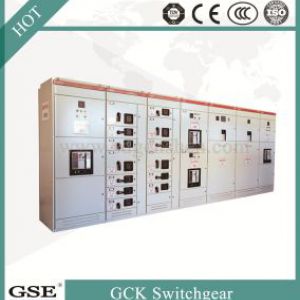

1.Product Overview:
The device is suitable for use in power plants, substations, petrochemical sectors, industrial enterprises, and high-rise buildings as the control center of power, distribution and motor of low-voltage distribution system, power conversion, distribution and controlling of capacitor compensation.
When using in situations like low-voltage power control center and motor control center of power plants and large-scale petrochemical industries, it can meet special requirements of the interface with the computer.
The device is designed according to the electric ministry, general electric power users and requirements of design department, in order to meet the needs of the continuously developmental power market in the areas of expansion in computer interface, power centralized control, convenient installation and maintenance, shorter time for accident treatment. The device is a innovative type of low-voltage draw-out switch cabinet that is in line with the safety, economic, reasonable and reliable principles. The product has high capability of breaking and connecting, high thermal stability, flexible electrical scheme, convenient combination, high practicability, innovative structure, high protection grade, etc. It can be used as the upgraded replacement of the low-voltage draw-out switch cabinet.
The device conforms to ICE 439-1 < Low-voltage complete switchgear and control equipment >, GB7251.1-1997 < Low-voltage complete switchgear>, ZBK 36001 < Low-voltage complete switchgear and control equipment > standards.
2.Normal working environment:
3.Main technical parameters:
4.Drawn
The device is suitable for use in power plants, substations, petrochemical sectors, industrial enterprises, and high-rise buildings as the control center of power, distribution and motor of low-voltage distribution system, power conversion, distribution and controlling of capacitor compensation.
When using in situations like low-voltage power control center and motor control center of power plants and large-scale petrochemical industries, it can meet special requirements of the interface with the computer.
The device is designed according to the electric ministry, general electric power users and requirements of design department, in order to meet the needs of the continuously developmental power market in the areas of expansion in computer interface, power centralized control, convenient installation and maintenance, shorter time for accident treatment. The device is a innovative type of low-voltage draw-out switch cabinet that is in line with the safety, economic, reasonable and reliable principles. The product has high capability of breaking and connecting, high thermal stability, flexible electrical scheme, convenient combination, high practicability, innovative structure, high protection grade, etc. It can be used as the upgraded replacement of the low-voltage draw-out switch cabinet.
The device conforms to ICE 439-1 < Low-voltage complete switchgear and control equipment >, GB7251.1-1997 < Low-voltage complete switchgear>, ZBK 36001 < Low-voltage complete switchgear and control equipment > standards.
2.Normal working environment:
| Air temperature around | No higher than 40ºC and lower than -5ºC |
| Average temperature | No more than +35ºC within 24 hrs. Needs to drop the capacity according to actual conditions; |
| When the highest temperature is +40ºC, the relative air humidity is no more than 50%. Larger relative humidity is allowed when the temperature is relatively low: ex. +20ºC 90%. Consider the frost effect due to temperature change accidentally; | |
| Vertical of the ground | No more than 5 degrees, and the whole cabinets are in relatively same level (conforms to GBJ232-82 standard). |
| The device should be installed in a place without violent vibration and impact, and no corrosion to its electric components. |
3.Main technical parameters:
| Item | parameter | |
| Rated insulation voltage | ||
| Rated working voltage | Primary loop | AC 660 (1000) V |
| AC 380 (660) V | ||
| Auxiliary circuit | AC 380, 220, 24 V | |
| DC 220, 110 V | ||
| Rated frequency | 50 (60) Hz | |
| Rated current of horizontal bus | < 4000 A | |
| Rated current of vertical bus | 1000 A | |
| Rated peak tolerant current | 105 (176) KA | |
| Rated short-term tolerant current (1s) | 50 (80) KA | |
| Power frequency testing voltage | Main loop to the ground | 2500 V/min |
| Auxiliary circuit to the ground | 2000 V/s | |
| Protection grade | IP3x |

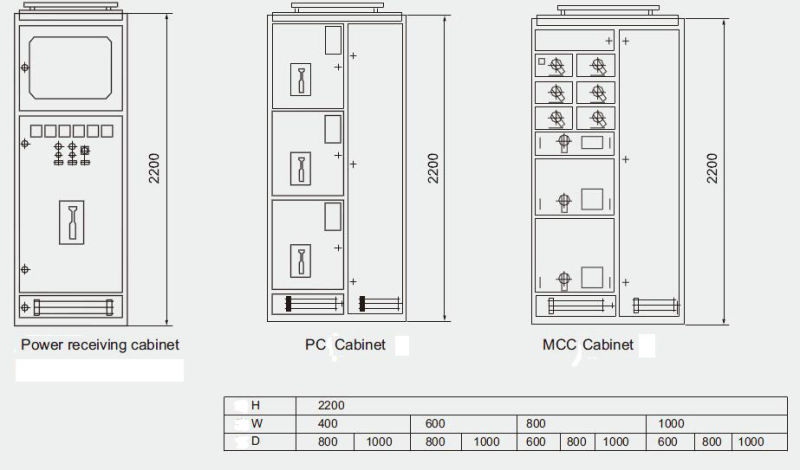

4.Drawn
5.Package
