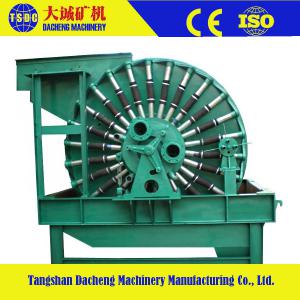

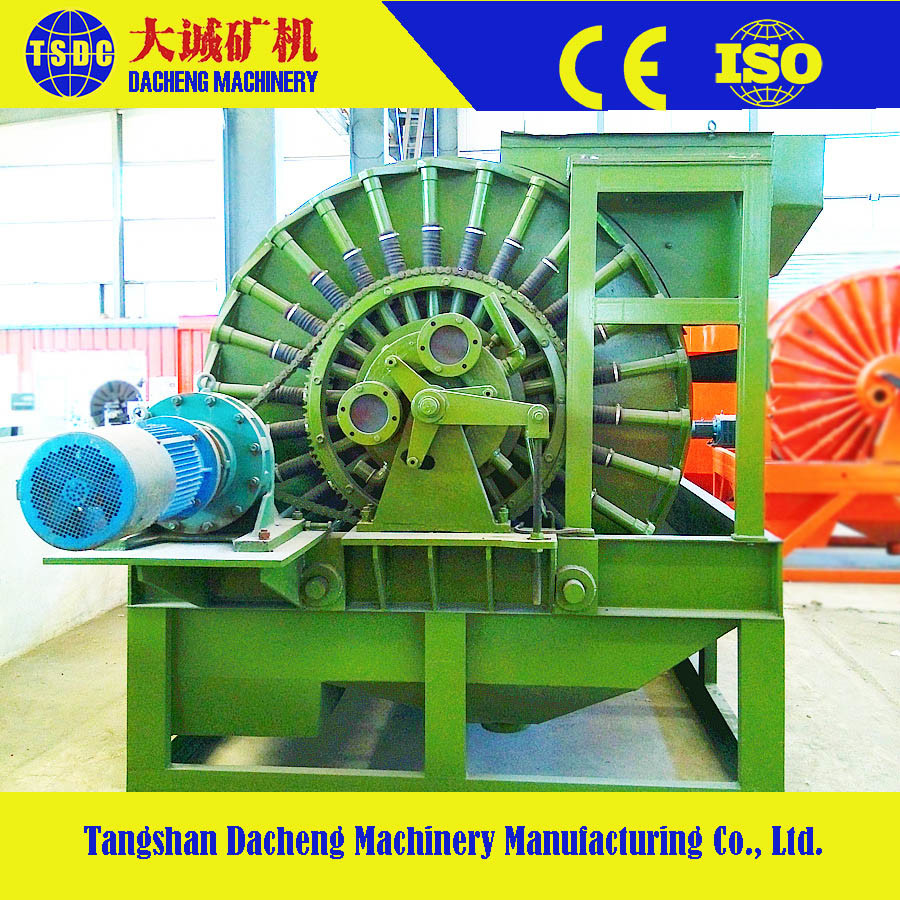

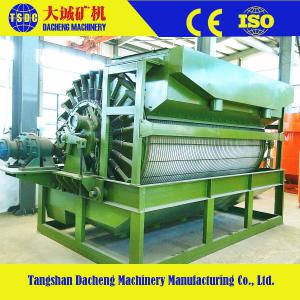

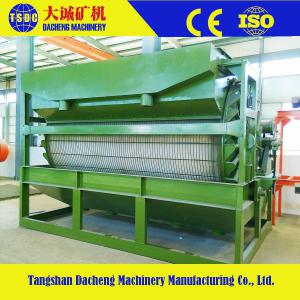

Barrel style vacuum external filter (the GWT-type filter), the body is a cylindrical tube, vacuum angle, sealing, and discharge fully, for a wide range. Widely used in mineral processing, metallurgy, chemicals, paper and other departments, on the post by the flotation of metal, non-metallic ore, coal, etc. dehydration, precipitation can also be used for easy separation of solid and liquid suspension.Barrel style vacuum external filter (the GWT-type filter), the body is a cylindrical tube, vacuum angle, sealing, and discharge fully, for a wide range. Widely used in mineral processing, metallurgy, chemicals, paper and other departments, on the post by the flotation of metal, non-metallic ore, coal, etc. dehydration, precipitation can also be used for easy separation of solid and liquid suspension.
1. The GYW vacuum permanent magnet filter is the external filtering drum permanent magnetic vacuum filter for the upper feeding. It's applicable to magnetic materials of coarse particles dehydration
2. The best working condition of the filter is
The specific susceptibility of solid particles in the pulp is not less than 3000×0.000001cm3/g.
The particle size is 0.12-0.8mm.
The feed concentration is greater than or equal to 60%.
Model | Filtering area(m²) | Concentration of feeding(%) | Filtering cake water (%) | Production capacity(t/h) | Motor power(kw) |
| GWT-3 | 3 | >60 | 5-11 | 6-9 | 24 |
| GWT-5 | 5 | >60 | 5-11 | 9-18 | 25 |
| GWT-8 | 8 | >60 | 5-11 | 18-25 | 41 |
| GWT-12 | 12 | >60 | 5-11 | 25-30 | 50.5 |
| GWT-16 | 16 | >60 | 5-11 | 30-50 | 67.5 |
| GWT-20 | 20 | >60 | 5-11 | 35-65 | 83.5 |
