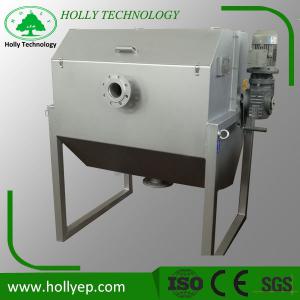

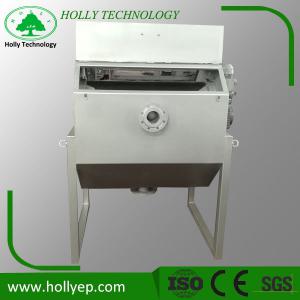

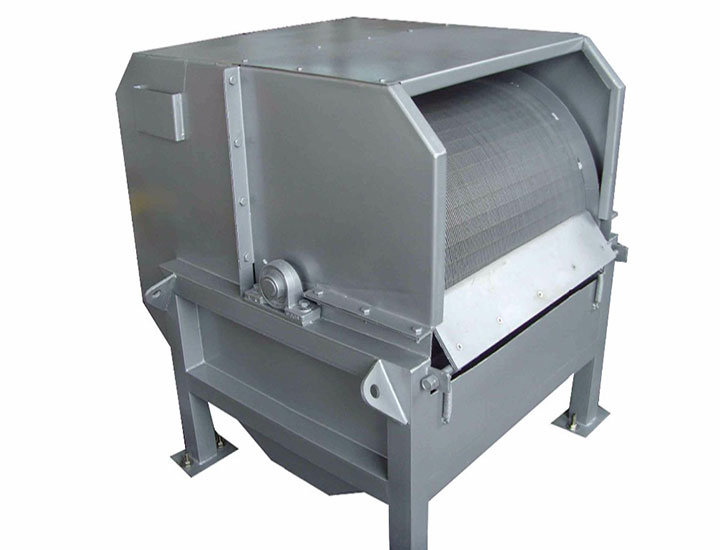

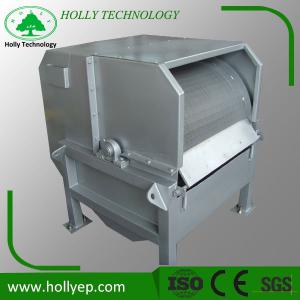

Aquaculture rotary drum filter for industrial wastewater is composed of a case made up of stainless steel plate and section bars. The stainless steel filter, whose surface is made up of a stainless steel "v" profile wedge wire type winded up as a spiral, rotates inside the case. The distance between each coil is the same as the desired filtering slot.
Technical Parameters
| Model | Screen size | Dimensions | Power | Material | Removal rate | |
| Solid size >0.75mm | Solid size >0.37mm | |||||
| HLWLW-300 | Φ300*500mm Space:0.15-5mm | 760*700*1200mm | 0.55KW | SS304 | 95% | 55% |
| HLWLW-400 | Φ400*600mm Space:0.15-5mm | 860*800*1300mm | 0.55KW | SS304 | ||
| HLWLW-500 | Φ500*750mm Space:0.15-5mm | 1050*900*1500mm | 0.75KW | SS304 | ||
| HLWLW-600 | Φ600*900mm Space:0.15-5mm | 1160*1000*1500mm | 0.75KW | SS304 | ||
| HLWLW-700 | Φ700*1000mm Space:0.15-5mm | 1260*1000*1600mm | 0.75KW | SS304 | ||
| HLWLW-800 | Φ800*1200mm Space:0.15-5mm | 1460*1200*1700mm | 1.1KW | SS304 | ||
| HLWLW-900 | Φ900*1350mm Space:0.15-5mm | 1600*1300*1800mm | 1.5KW | SS304 | ||
| HLWLW-1000 | Φ1000*1500mm Space:0.15-5mm | 1600*1300*1800mm | 1.5KW | SS304 |
Features
1. The material is high-strength and corrosion-resistant stainless steel; Less used field area; Convenient construction; It can be directly fixed with expansion bolts without channel construction; Inlet and outlet water can be connected with pipes.
2. The screen will not be blocked by waste solid because the machine is inverted trapezoid cross section
3. The machine is controlled by adjustable-speed motor, which can maintain optimum working condition according to water flow.
4. Special washing device can brush away the impurities on the surface of screen, after twice internal brush, it will achieve the best cleaning effect.
Application
Water separation treatment of industrial waste water in these industries
Paper Mills
Textile and Dyeing
Food Industry
Chemical Industry
Packing
Certificate
About Us

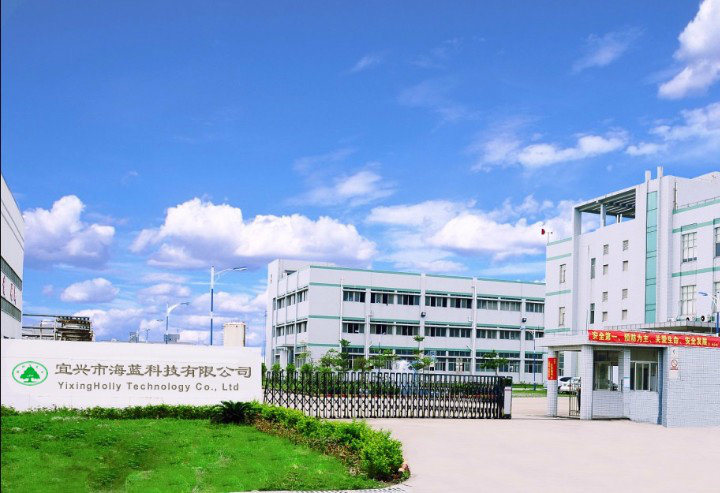

Yixing Holly Technology Co., Ltd is located in Yixing, Jiangsu Province, China. Established in 2007, Holly Technology is a domestic forerunner in producing environmental equipments and parts used for sewage treatment.
Nowadays, our company has developed into a comprehensive enterprise integrating production, trading, design and installation service of sewage treatment equipments.
