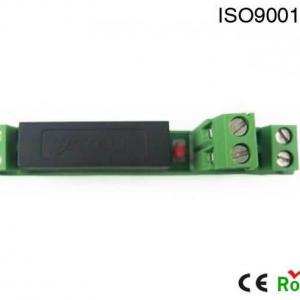

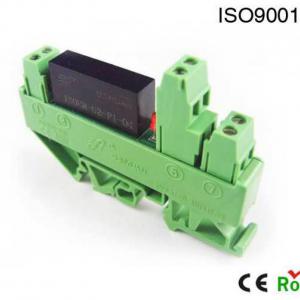

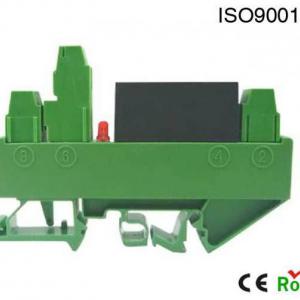

4-20mA to 0-5V Transmiter with 3KV isolation(DIN Rail-mounted )
DIN3 ISOEM U(A)-P-O Series Tansmitter Features:
Small size, high precision standard DIN 35 package.
External potentiometer, gain and zero adjustment are not required.
3000VDC isolation among auxiliary power, I/O.
Auxiliary power: 5V/12V/15V/24VDC.
Isolated amplification and conversion among 0-75mV, 0-2.5V, 0-10V, 0-±100mV, 0-±10, 0-±20mA, 4-20mA,etc signals
Industrial operating temp. Range: -25ºC~+70ºC
DIN3 ISOEM U(A)-P-O Series Tansmitter Features:
Small size, high precision standard DIN 35 package.
External potentiometer, gain and zero adjustment are not required.
3000VDC isolation among auxiliary power, I/O.
Auxiliary power: 5V/12V/15V/24VDC.
Isolated amplification and conversion among 0-75mV, 0-2.5V, 0-10V, 0-±100mV, 0-±10, 0-±20mA, 4-20mA,etc signals
Industrial operating temp. Range: -25ºC~+70ºC
Precision grade: 0.1, 0.2; high linearity in full measuring range (non-linearity <0.1%).
Applications:
DC current/voltage signal isolation and conversion
Industrial site signal isolation and long-distance transmission without distortion.
Analog signal GND interference inhibition and data isolated acquisition.
4-20mA(0-20mA)/0-5V and other analog signals isolation and conversion.
PLC/PC/DCS/meters and instruments/sensor signal receiving, amplification and transmission.
Model Sellection:
Dimension:
Applications:
DC current/voltage signal isolation and conversion
Industrial site signal isolation and long-distance transmission without distortion.
Analog signal GND interference inhibition and data isolated acquisition.
4-20mA(0-20mA)/0-5V and other analog signals isolation and conversion.
PLC/PC/DCS/meters and instruments/sensor signal receiving, amplification and transmission.
Power monitoring, safety bar for electric medical equipment.
Introduction:
Sunyuan small size, high precision DIN 35 Isolated Amplifier is a kind of magnetoelectric isolation transmitter which can isolated conversion and transmission on industrial site signals. The Analog Active Signal Isolated Transmitter IC used in DIN 3 series is a kind of signal module/ IC with electro-magnetic hybrid integrated circuit inside. There are one multi-isolation DC/DC transformation power and a set of electro-magnetic coupling analog signal isolated amplifier/transmitter in the IC. The transmitters mainly applied in the field without special requirements for EMC (electro-magnetic interference). And by employing internal isolation technique, proper I/O side creepage distance, the isolated voltage of that signal transmitter is up to 3000VDC.
DIN3 ISO EM Series transmitter easily achieves the isolated conversion for the industrial site signals without gain/zero adjustment. It widely used in controlling analog signal input and output in industrial controlling and monitoring system. The controlling system monitors and controls the adjustable output of other device, operating voltage/current, and the external 0-1mA/4-20mA/0-20mA/0-75mV/0-5V/0-10V/0-±10V/0-±20mA standard signal interface through the output signal form DSP/PLC,etc.
General Parameter:Introduction:
Sunyuan small size, high precision DIN 35 Isolated Amplifier is a kind of magnetoelectric isolation transmitter which can isolated conversion and transmission on industrial site signals. The Analog Active Signal Isolated Transmitter IC used in DIN 3 series is a kind of signal module/ IC with electro-magnetic hybrid integrated circuit inside. There are one multi-isolation DC/DC transformation power and a set of electro-magnetic coupling analog signal isolated amplifier/transmitter in the IC. The transmitters mainly applied in the field without special requirements for EMC (electro-magnetic interference). And by employing internal isolation technique, proper I/O side creepage distance, the isolated voltage of that signal transmitter is up to 3000VDC.
DIN3 ISO EM Series transmitter easily achieves the isolated conversion for the industrial site signals without gain/zero adjustment. It widely used in controlling analog signal input and output in industrial controlling and monitoring system. The controlling system monitors and controls the adjustable output of other device, operating voltage/current, and the external 0-1mA/4-20mA/0-20mA/0-75mV/0-5V/0-10V/0-±10V/0-±20mA standard signal interface through the output signal form DSP/PLC,etc.
Model Sellection:
Dimension:
