High Speed Passenger Elevator with Small Machine Room Residential Series

PRIMARY PARAMETERS

Model NO.

FJPS

Elevator Door

Center Opening Door

Door Knife

Integral Type

Deceleration Device

With Deceleration Device

Attendant

Without Attendant

Control System

Monarch

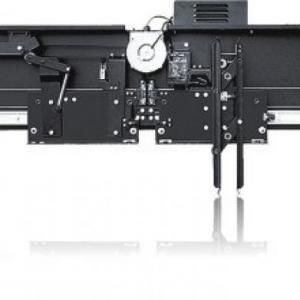

Vvv Door Operator

Permanent Magnet Synchronous Machine

Date of Delivery

30days-45days

Certificate

Is09001, ISO14001, ISO18001

Landing

6/6

Trademark

FUJIM

Transport Package

High Quality Export Wooden Case

Specification

SGS

Origin

China

HS Code

84281010

DETAIL DESCRIPTION

Product Description

FUJIM ELEVATOR supply:
home lift, passenger lift, freight elevator, observation elevator, hospital lift, escalator, moving walk
High Speed Passenger Elevator with Small Machine Room Residential Series

High Speed Passenger Elevator with Small Machine Room Residential Series

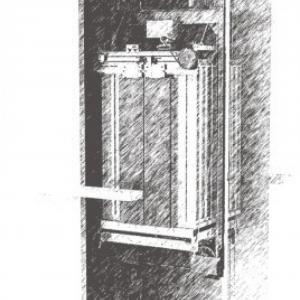

FJPS Small Machine Room Passenger Elevator adopts the reasonable layout construction to make machine room area as large as the well ,save the space and reduce the construction cost further.

WHY CHOOSE US?
1.   High quality and competitive price.
2.   Good pre-sale service and after-sale service.
Professional technical global client center provides 24 hours service to solve your problems and questions on elevator.
3. Qualified and safe.
4.   Steady and durable use

our production line:
High Speed Passenger Elevator with Small Machine Room Residential Series

WHAT THE ADDVANTAGE OF OUR ELEVATOR?
1. Highly integrated and intelligent control system Double 32 bit CPU, mutul control between main CPU and sub CPU, Increases the speed of data processing to a great extent. Moreover, the highly intellectual micro-computer module inside our systems guarantee the most secure, accurate, and effective control to our elevator.
2. Intelligent IC card system(optional)IC card can be configured according to user requirements, IC card can execute permissions management for elevator, while improves the safety of the building management.
3. Group control management Rush hour operation mode:
It satisfied the operation requirement of rush hour in the office building and public place.
Uniform operation mode: It adopts the distribution principle of minimized waiting time to make lift response more prompt.
Idle operation mode: The lift The elevator distributed in the designated area evenly, which response and deal with the hall call reasonably and reduce the passengers' waiting time effectively.
4. Intelligent terminal remote monitoring
It can monitor the elevator parameters and running condition in the monitor center or remote intelligent cellphone. Meanwhile, it can transfer voice, pictures and videos by data stream.
5. Green energy-saving, reduces energy consumption. FUJIM Elevator adopts new generationpermanent magnet synchronous and gearless traction machine. Energy saving effect of more than 30%. Gearless traction machine needn't to change oil,so there is no oil pollution and the noise is lower.
6. Energy feedback system(optional)The optional device can transfer the energy consumption in the braking resistance into electrical energy which will be supplied to other elevator or electrical equipments in the building.
7. LED automatic lightingLED lighting device in car is beneficial to long-term ues, the efficiency is 80% higher than traditional lighting. The lighting is soft and bright, low-heat, safe ,high efficient and no radiation, and automatically power off in the elevator idle, it is environment protection.

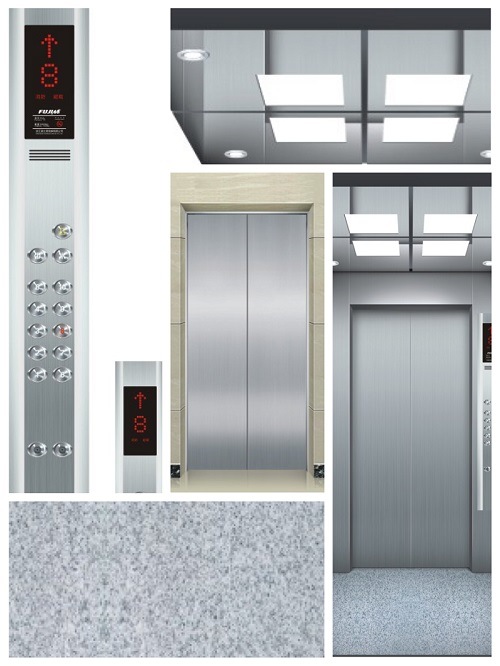

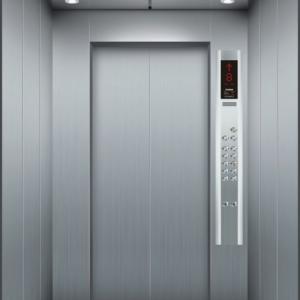

Standard decoration

High Speed Passenger Elevator with Small Machine Room Residential Series

Parameter table of our passenger elevator

Loading(kg)	Seating Capacity	Speed(m/s)	Car size (CW*CD)mm	Door opening size (DW*DH)mm	Hoistway size(mm)	Machine room size	Max traveling height (m)
2P Center opening	(HW*HD)	OH	PD	(MW*MD)mm	(MH)mm
400	6	1.0	1100*1000	700*2100	1700*1620	4500	1500	1700*1620	2900	45
630	8	1.0	1400*1100	800*2100	2000*1720	4500	1500	2000*1720	2900	45
1.6/1.75	4600	1700	96
800	10	1.0	1400*1350	800*2100	2000*1970	4500	1500	2000*1970	2900	45
1.6/1.75	4600	1700	96
2.0	4900	1800	120
2.5	5100	2000	150
1000	13	1.0	1600*1500	900*2100	2200*2120	4500	1500	2200*2120	2900	45
1.6/1.75	4600	1700	96
2.0	4900	1800	120
2.5	5100	2000	150
3.0	5600	2600	150
3.5	5950	3100	180
4.0	6350	3850	180
1150	15	1.0	1700*1500	1000*2100	2300*2120	4500	1500	2300*2120	2900	45
1.6/1.75	4600	1700	96
2.0	4900	1800	120
2.5	5100	2000	150
3.0	5600	2600	150
3.5	5950	3100	180
4.0	6300	3850	180
1250	16	1.0	1950*1400	1100*2100	2600*2100	4500	1500	2600*2100	2900	45
1.6/1.75	4600	1700	96
2.0	4900	1800	120
2.5	5100	2000	150
3.0	5600	2600	150
3.5	5950	3100	180
4.0	6350	3850	180
1350	18	1.0	1950*1500	1100*2100	2600*2200	4500	1500	2600*2200	2900	45
1.6/1.75	4600	1700	96
2.0	4900	1800	120
2.5	5100	2000	150
3.0	5600	2600	150
3.5	5950	3100	180
4.0	6350	3850	180
1600	21	1.0	1950*1750	1100*2100	2600*2500	4500	1500	2600*2500	2900	45
1.6/1.75	4600	1700	96
2.0	4900	1800	120
2.5	5100	2000	150
3.0	5600	2600	150
3.5	5950	3100	180
4.0	6350	3850	180

Standard Function

Running Function
VVVF door operator	VVVF elevator drive	Independent running	Automatic pass without stop
Automatically adjust door opening time	Reopen with hall call	Car stop and door open	Express door closing
Arrival charm	Direct parking
Safety Function
Light curtain protection	Designed stop	Overload device	Anti-stall timer protection
Start protection control	Inspection Operation	Fault self-diagnosis	Repeat door closing
Up/down over-speed limited protection	Device for uncontrolled descending car protection	Device for uncontrolled ascending car protection
Human-machine interface
Micro-touch button for car call and hall call	Floor and direction indicator inside car	Floor and direction indicator in hall
Emergency Function
Emergency Lighting	Inching running	5-way intercom	Bell
Emergency fire operation
Energy Saving function
Fan&Light Automatic Off	Remote shut-off

Optional Function

Automatic rescue operation	Anti-nuisance car call protection	In advance door open	Car call cancellation
Duplex control	Speech synthesis service	Second COP	Car operation panel for disabled persons
Intelligent calling service	Remote monitor	Camera function in the car

All the decoration can be customized for you.
