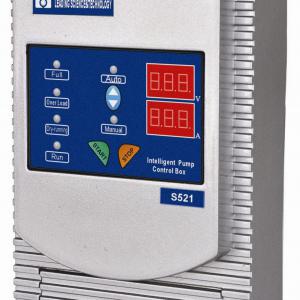

Intelligent Pump Controller model S521 is an easy to use, programmable controlling & protection device for direct start, single phase deep well, submersible pump, centrifugal pump, pipeline pump etc with output power from 0.37KW to 2.2KW (0.5HP-3HP)
Model S521 has many operation modes by adopting different electric installations. An important feature that makes the difference between Model S521 and common On/Off pump control box is the probe / sensor free in the well. Our special design makes it a very reliable and sensitive protection against pump dry run without installation probe / sensor in the well.
Product application
Model S521 is useful in all cases we need to control and protect single pump managing its turn-on and turn off by different electric installations.
Typical usage scenarios include:
Houses
Flats
Holidays houses
Farms
Water supply from wells
Irrigations of greenhouses, gardens, agriculture
Rain water reuse
Industrial plants
Waste water tank / Sewage sink
Main features
. Built In function switch
Applied for water supply by liquid level control through float switch or liquid probe
Applied for water supply by pressure control through pressure switch and pressure tank
Applied for drainage by liquid level control through float switch or liquid probe
. Computer main board and module for industrial & civil pump
. Auto / Manual switch
. Automatic stops the pump in the case of water shortage, protecting it from dry running without installing float switch or liquid probe in the well
. Over current (over load) protection
. Under voltage protection
. Over voltage protection
. Pump motor stalled protection
. Digital voltmeter & ampere meter real-time display
. Light alarm signals of malfunction
. Push button calibration
. Light signals prompt for uncompleted parameter calibrating
. Starts and stops the pump in accordance with the different liquid level or pressure setting
. Present liquid level probe
. User friendly connection diagrams
. Integrated design, small size, easy to install
Model S521 has many operation modes by adopting different electric installations. An important feature that makes the difference between Model S521 and common On/Off pump control box is the probe / sensor free in the well. Our special design makes it a very reliable and sensitive protection against pump dry run without installation probe / sensor in the well.
| Model | S521 |
| Main technical data | |
| .Start type | Direct on line |
| . Qty of controlled pump | Single pump |
| . Rated input voltage: | AC220V-240V Single phase 50HZ/ 60HZ |
| . Rated output power: | 0.37kw-2.2kw (0.5hp-3hp) |
| .Capacitor: | Reserved space for installing start capacitor |
| Product function | Over load protection Pump stalled protection Dry run protection with sensor free Under voltage protection Over voltage protection |
| Application & Control characteristic | Control and protect universal pump Using water level sensor or float switch to control pump start and stop Applied for water supply by liquid level control through float switch or liquid probe Applied for water supply by pressure control through pressure switch and pressure tank Applied for drainage by liquid level control through float switch or liquid probe |
| Other features | Push button calibration Memory function when power off & recovery |
| Main installation data | |
| Working temperature Working humidity Degree of protection Install position Unit dimension (L x W x H) | -25ºC-- +55ºC 20%--90%RH, no drips concreted IP22 Wall mounting 1 70× 1 55× 8.5mm |
Product application
Model S521 is useful in all cases we need to control and protect single pump managing its turn-on and turn off by different electric installations.
Typical usage scenarios include:
Houses
Flats
Holidays houses
Farms
Water supply from wells
Irrigations of greenhouses, gardens, agriculture
Rain water reuse
Industrial plants
Waste water tank / Sewage sink
Main features
. Built In function switch
Applied for water supply by liquid level control through float switch or liquid probe
Applied for water supply by pressure control through pressure switch and pressure tank
Applied for drainage by liquid level control through float switch or liquid probe
. Computer main board and module for industrial & civil pump
. Auto / Manual switch
. Automatic stops the pump in the case of water shortage, protecting it from dry running without installing float switch or liquid probe in the well
. Over current (over load) protection
. Under voltage protection
. Over voltage protection
. Pump motor stalled protection
. Digital voltmeter & ampere meter real-time display
. Light alarm signals of malfunction
. Push button calibration
. Light signals prompt for uncompleted parameter calibrating
. Starts and stops the pump in accordance with the different liquid level or pressure setting
. Present liquid level probe
. User friendly connection diagrams
. Integrated design, small size, easy to install
