Piezoresistive silicon chip employed
Perfect long term stability
MEMS Technology
CE certificate
Perfect long term stability
MEMS Technology
CE certificate
| Pressure range | |
| Pressure range | 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa |
| Pressure reference | Gauge pressure | Absolute pressure | Sealed gauge pressure |
| Overpressure | 300%F.S.(≤70kPa) | 200%F.S.(<25MPa) | 150%F.S.(≥25MPa) |
| Output signal | |
| Output | 4 to 20mA | 1 to 5V | 0 to 5V |
| Specification | |
| Accuracy (linearity, repeatability and hysteresis) | ±0.5%F.S. | ±1%F.S. |
| Supply | 24VDC |
| Compensated temp. | -10ºC - 70ºC | -20ºC - 85ºC |
| Operating temp. | -20ºC - 85ºC |
| Storage temp. | -40ºC - 125ºC |
| Zero temp. coefficient | ±1.5%F.S.max. (-20ºC - 85ºC) |
| Span temp. coefficient | ±1.5%F.S.max. (-20ºC - 85ºC) |
| Pressure connection | See "how to order" |
| Protection | IP65 |
| Housing material | Stainless steel 304 (316L for the sensor inside) |
| Long-term Stability | ≤0.2%F.S./year |
| Weight | 180g (approx.) |

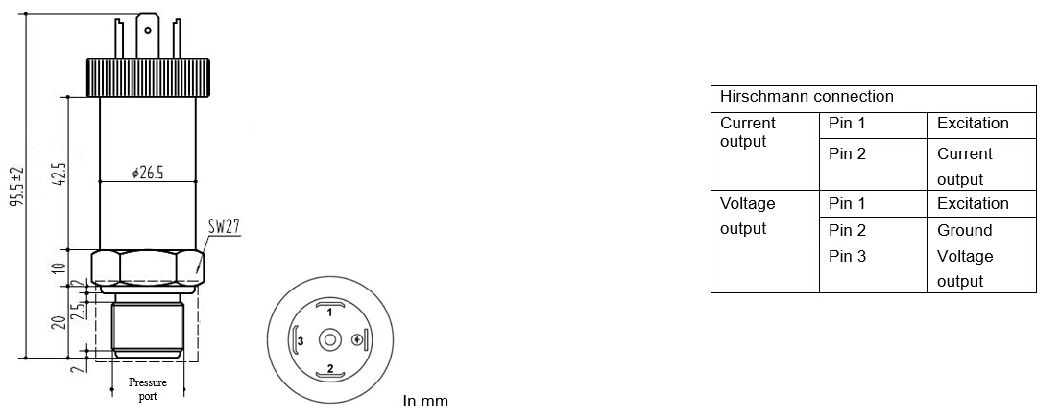

| Electrical connection (DIN 43650) |

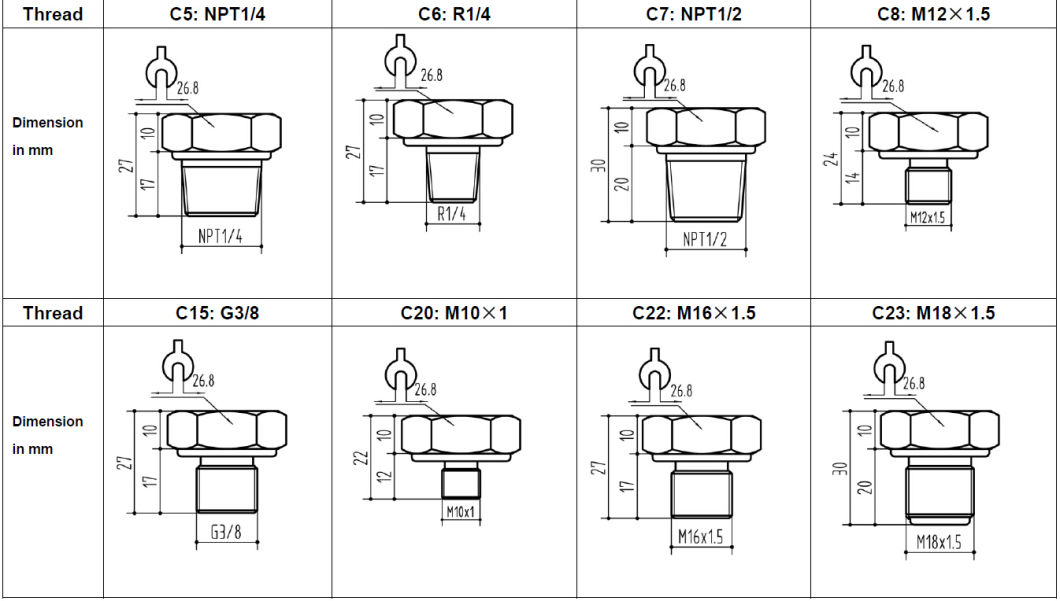

| Pressure port |
| How to order |
