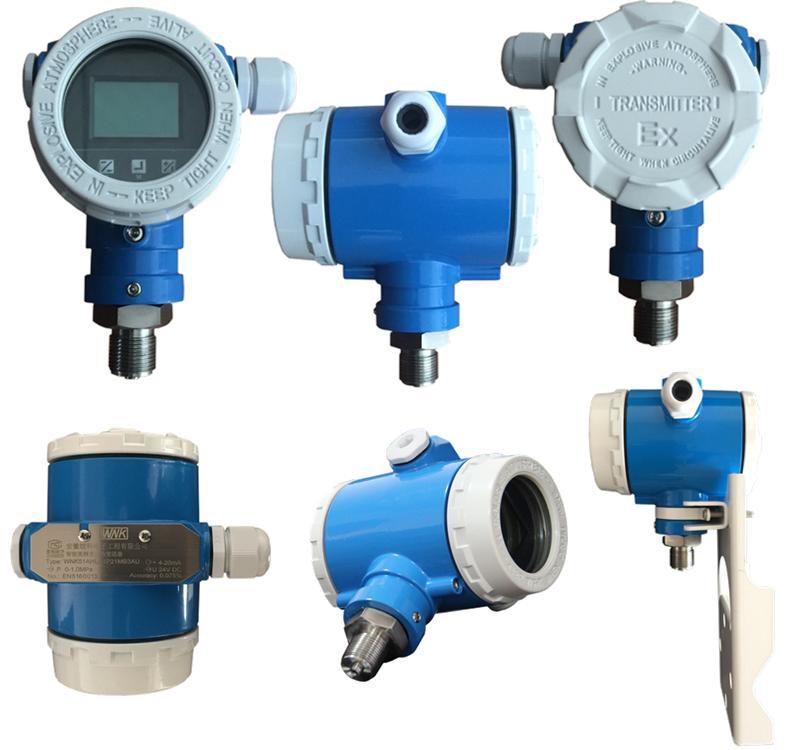

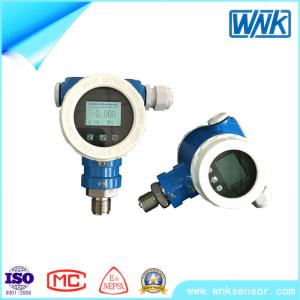

Features-WNK51 Smart High Accuracy Gauge/Absolute Pressure Transmitter
- High reference accuracy up to 0.075%.
- Long-term drift ≤±0.25%URL for 1 year.
- Hart, PROFIBUS-PA or FF protocol for option.
- Intrinsically safe and flameproof explosion proof
- Range down ratio 100: 1
- Smart type for easy calibration
Technical Data-WNK51 Smart High Accuracy Gauge/Absolute Pressure Transmitter
| Applicable media | Liquid, gas and steam |
| Pressure range | -100KPa~70MPa |
| Accuracy | 0.075%, higher on request |
| Stability | ±0.15% of URL for 5 years |
| Temperature drift | ±0.03% of URL/10ºC |
| Output signals | 4~20mA, Hart, PROFIBUS-PA for option |
| Housing material | Aluminum14 |
| Process connection | M20×1.5; G1/2; 1/2NPT; 1/4 NPT; Customization |
| Protection class | IP66/67 |
| Ex-proof | Exia II CT4, Exia III CT6, Exd IICT6 |
| Power Supply | 10.5-55V DC 10.5-30V DC (recommend 24V DC) |
| Ambient temperature | -40 to 85ºC, -40 to 80ºCfor LCD header |
| Storage temperature | -45 to 85ºC, -40 to 80ºC for LCD header; |
| Measurement | With display: 95*126*52 (mm) |
| Without display: 95*115*52 (mm) | |
| Net Weight | 1.7kg (without bracket or process connection) |
Ordering information-WNK51 Smart High Accuracy Gauge/Absolute Pressure Transmitter
| Model | Product Details | ||
| WNK51 | Smart high precision pressure transmitter | ||
| Code | Approval | ||
| A | For non-hazardous areas | ||
| 1 | ExiaIICT6 | ||
| 2 | ExiaIICT4 | ||
| 3 | ExdIIBT6 | ||
| For other approvals or more information, please contact with us | |||
| Code | Output Code | ||
| A | 4…20mA | ||
| H | 4…20mA, HART | ||
| P | PROFIBUS-PA | ||
| F | FF | ||
| Code | Display | ||
| A | No display | ||
| L | LCD | ||
| Code | Housing; Cable entry; Protection | ||
| A | Aluminum14, M20×1.5, IP66/67 | ||
| B | Aluminum 14, G1/2, IP66/67 | ||
| C | Aluminum14, 1/2NPT, IP66/67 | ||
| Code | Sensor range, for gauge pressure | Code | Sensor range, for absolute pressure |
| 1C | 100mbar (10kPa/1mH2O) | 2C | 100mbar (10kPa/1mH2O) |
| 1E | 250mbar (25kPa/2.5mH2O) | 2E | 250mbar (25kPa/2.5mH2O) |
| 1F | 400mbar (40kPa/4mH2O) | 2F | 400mbar (40kPa/4mH2O) |
| 1H | 1bar (100kPa/10mH2O) | 2H | 1bar (100kPa/10mH2O) |
| 1K | 2bar (200kPa/20mH2O) | 2K | 2bar (200kPa/20mH2O) |
| 1M | 4bar (400kPa/40mH2O) | 2M | 4bar (400kPa/40mH2O) |
| 1P | 10bar (1MPa/100mH2O) | 2P | 10bar (1MPa/100mH2O) |
| 1S | 40bar (4MPa/400mH2O) | 2S | 40bar (4MPa/400mH2O) |
| 1U | 100bar (10MPa/1000mH2O) | 2U | 100bar (10MPa/1000mH2O) |
| 1W | 400bar (40MPa/4000mH2O) | 2W | 400bar (40MPa/4000mH2O) |
| 1X | 700bar (70MPa/7000mH2O) | 2X | 700bar (70MPa/7000mH2O) |
| Code | Calibration, Unit | ||
| 1 | Sensor range, mbar/bar | ||
| 2 | Sensor range, kPa/MPa | ||
| 3 | Sensor range, mmH2O/mH2O | ||
| 4 | Sensor range, psi | ||
| Code | Diaphragm material | ||
| 1 | 316L | ||
| 2 | Alloy C-276 | ||
| X | Other special requirement | ||
| For other special kind of diaphragm, please contact with us. | |||
| Code | Process connection; Screw | ||
| GA | Male thread G1/2, inner hole 3mm, 316 | ||
| GB | Male thread G1/2, inner hole 11.4mm, 316 | ||
| GC | Female thread G1/2, inner hole 3mm, 316 | ||
| GD | Female thread G1/2, inner hole 11.4mm, 316 | ||
| NA | Male thread 1/2NPT, inner hole 3mm, 316 | ||
| NB | Male thread 1/2NPT, inner hole 11.4mm, 316 | ||
| NC | Female thread 1/2NPT, inner hole 3mm, 316 | ||
| ND | Female thread 1/2NPT, inner hole 11.4mm, 316 | ||
| MA | Male thread M20×1.5, inner hole 3mm, 316 | ||
| MB | Male thread M20×1.5, inner hole 11.4mm, 316 | ||
| JX | Other special requirement | ||
| For other special connection screw thread, please contact with us. | |||
| Code | Process connection material | ||
| 3 | 316 | ||
| H | Alloy C | ||
| Code | Overvoltage protection | ||
| A | No | ||
| M | Overvoltage protection | ||
| Code | Mounting bracket | ||
| A | No | ||
| U | Mounting bracket for pipe | ||
| Typical model#: WNK51 AHL A1P21 MA3 AU |

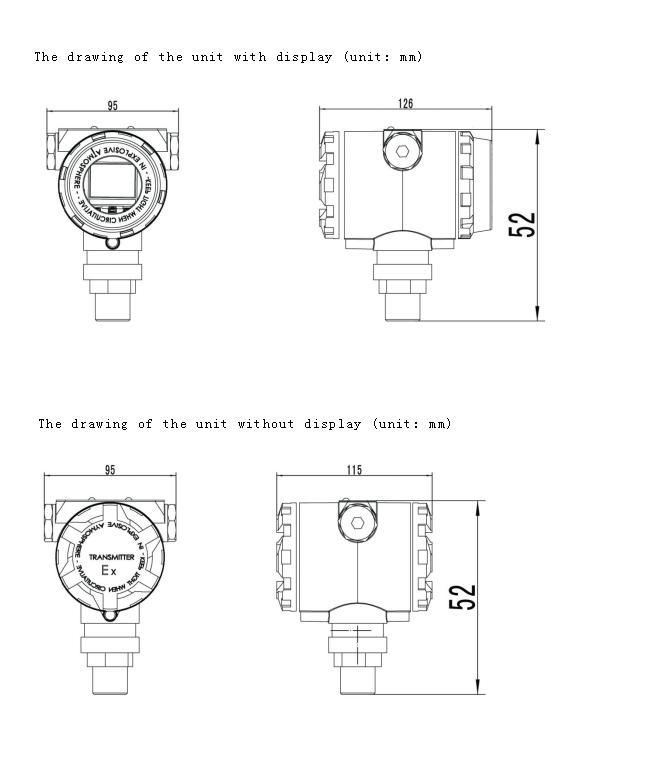

Installation diagram (unit: mm)-WNK51 Smart High Precison pressure transmitter
Product application
Delivery
3~10 days after order confirmed
