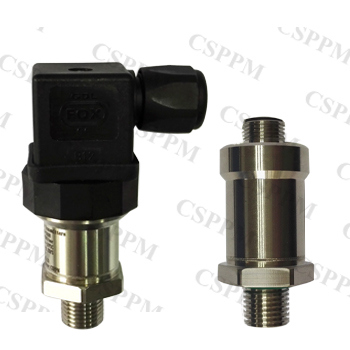

Model PPM-T322H Pressure Transmitter for General Industrial Application
Description
The model PPM-T322H pressure transmitter is the ideal solution for customers with demanding performance requirements in many industrial application.It features high accuracy, extended temperature ranges, high stability, high repeatability, low power consumption. The model PPM-T322H offers continuous measuring ranges between 0…10 bar to 0…1000bar in all common engineering units. These measuring ranges can be combined with several standard industry output signal, such as 4…20 mA, 0…10 V, 0…5V and many others.
Features
1. Cost-effective
2. Wide temperature ranges
3. Long service life
4. OEM accepted
5. Strong anti-interference ability
6. Overvoltage protection
Applications
1. Hydraulic system
2. Engineering machinery
3. Pneumatic control system
4. Compressor, engine, pump
5. Other industrial automatic control system
Specification
Dimensions in mm
Wiring diagram
Order information
Description
The model PPM-T322H pressure transmitter is the ideal solution for customers with demanding performance requirements in many industrial application.It features high accuracy, extended temperature ranges, high stability, high repeatability, low power consumption. The model PPM-T322H offers continuous measuring ranges between 0…10 bar to 0…1000bar in all common engineering units. These measuring ranges can be combined with several standard industry output signal, such as 4…20 mA, 0…10 V, 0…5V and many others.
Features
1. Cost-effective
2. Wide temperature ranges
3. Long service life
4. OEM accepted
5. Strong anti-interference ability
6. Overvoltage protection
Applications
1. Hydraulic system
2. Engineering machinery
3. Pneumatic control system
4. Compressor, engine, pump
5. Other industrial automatic control system
Specification
| Measuring medium | Gas, liquid |
| Pressure type | Gauge pressure(G), Sealed pressure(S) |
| Pressure range | 0~10bar,16bar,25bar,40bar,60bar,160bar,250bar,400bar,600bar,700bar,1000bar |
| Power supply | 9-32VDC |
| Output signal | 4~20mA ,0~10VDC,0~5VDC,1~5VDC,0.5~4.5 VDC |
| Nonlinearity | ≤0.25% FS (10bar,16bar,25bar) ≤0.05% FS (≥40bar) |
| Non-repeatability | ≤0.1% FS |
| Accuracy | 0.5%FS |
| Long-term stability | 0.15%FS/year |
| Medium temp | -40~+125ºC |
| Operation temp | -40~+105ºC |
| Zero temp. drift | ≤0.02%FS/ºC |
| FS temp. drift | ≤0.02%FS/ºC |
| Response time | ≤1ms(10%~90%) |
| Insulation resistance | ≥1000 MΩ/100V |
| Overpressure | 150%FS (1.5 times FS) |
| Damage pressure | 500%FS (5 times FS) |
| Vibration resistance | 5~1000Hz |
| Shcok resistance | 50g, 20ms |
| Process connections | G1/4, M14×1.5, or other process connections on request |
| Materials | Wetted parts: 17-4PH, non-wettedparts: stainless steel 304 |
| Ingress protection | IP67 |
| Electrical connections | Circular connector M12 x 1,L-connector DIN43650 |

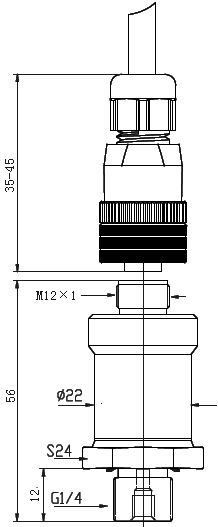

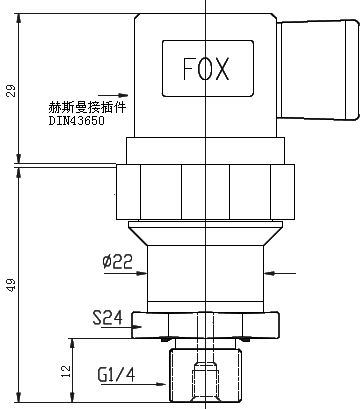

Dimensions in mm

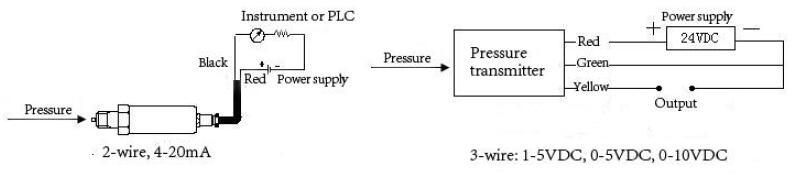

Wiring diagram
Order information
| Model PPM-T322H Pressure Transmitter | ||
| Code | Pressure type | |
| G | Gauge pressure | |
| S | Sealed pressure | |
| A | Absolute pressure | |
| Code | Pressure ranges | |
| M | 0~ X MPa | |
| K | 0~ X KPa | |
| Code | Accuracy | |
| 1 | ±0.5%FS | |
| 2 | ±0.25%FS | |
| Code | Output signal | |
| V0 | mV | |
| A1 | 4~20mA | |
| V1 | 0~5V DC | |
| V2 | 1~5V DC | |
| V3 | 0.5~4.5V DC | |
| V4 | 0~10V DC | |
| A0 | Others | |
| Code | Operation temperature | |
| T1 | -10~70ºC | |
| T2 | -25~85ºC | |
| T3 | -30~125ºC | |
| T4 | -45~150ºC | |
| T0 | Others | |
| Code | Power supply | |
| D1 | 5VDC | |
| D2 | 10VDC | |
| D3 | 24VDC(9-32)VDC | |
| D0 | Other | |
| Code | Process connection | |
| M1 | M20x1.5 | |
| M2 | M14 x1.5 | |
| M3 | M10x1 | |
| G1 | G1/4 | |
| G2 | G1/2 | |
| N1 | 1/4NPT | |
| N2 | 1/2NPT | |
| F0 | Other | |
| Code | Electrical connectiong | |
| W2 | DIN43650 | |
| W3 | Circular connector M12 x 1 | |
| Code | Other | |
| P1 | Commom | |
| P2 | Non-cavity diaphragm | |
| PPM-T322H-G 20M 3 V0 T4 D1 M3 W1 P1 |
