Pipe Repair Clamp H300X500, Pipe Repair Coupling, Pipe Repair Collar, Repair Pipe Clamp for Cast Iron Pipe and Ductile Iron P

PRIMARY PARAMETERS

Model NO.

H300x500

Suitable for

Cast Iron Pipe, Ductile Iron Pipe

Pressure

Pn10/Pn16

Pipe Diameter

Dn300

Clamp Length

500mm

Body Material

Ductile Iron

Gasket Material

EPDM

Surface Treatment

Epoxy Power Coating

Bolts & Nuts

Galvanized Carbon Steel

Trademark

AAA

Transport Package

Wooden Box

Specification

H300x500

Origin

Anqing, China

DETAIL DESCRIPTION

1. We are the supplier of Leaking Pipe Repair Clamps for Water and Gas Supply Pipeline Networks in over 100 Chinese Cities and some foreign countries including UK, Australia, Sri Lanka and so on.

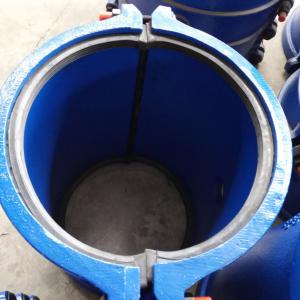

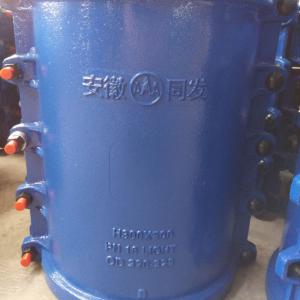

Pipe Repair Clamp H300X500, Pipe Repair Coupling, Pipe Repair Collar, Repair Pipe Clamp for Cast Iron Pipe and Ductile Iron Pipe, Leak Pipe Quick Repair

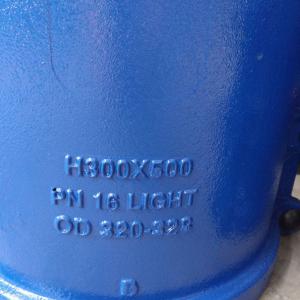

Pipe Repair Clamp H300X500, Pipe Repair Coupling, Pipe Repair Collar, Repair Pipe Clamp for Cast Iron Pipe and Ductile Iron Pipe, Leak Pipe Quick Repair

2. Features of products :

- consist of the two half cast iron tubes with good quality rubber seal inside
- the most econimical and efficient way for the rush repair of the leak or burst of the pipeline.
- no need disassembly from the body of pipeline after repair

3. The list of sizes :

S/N	Suitable for	Size	Nominal Diameter	OD (outside diameter)
W-Pipe	Z-Pipe	C-Pipe	D-Pipe
1	Iron Pipe	Dg40	40	48.3	48.0
2	Iron Pipe	Dg50	50	60.3	60.0
3	Iron Pipe	Dg65	65	76.1	76.0
4	Iron Pipe	Dg80	80	88.5	89.0	93.0	98.0
5	Iron Pipe	Dg100	100	114.0	114.0	118.0	118.0
6	Iron Pipe	Dg150	150	165.0	165.0	169.0	170.0
7	Iron Pipe	Dg200	200	219.0	218.0	220.0	220.0
8	Iron Pipe	Dg250	250	273.0		271.6	274.0
9	Iron Pipe	Dg300	300	325.0		322.8	326.0
10	Iron Pipe	Dg350	350			374.0	378.0
11	Iron Pipe	Dg400	400	426.0		425.6	429.0
12	Iron Pipe	Dg450	450			476.8	480.0
13	Iron Pipe	Dg500	500	530.0		528.0	532.0
14	Iron Pipe	Dg600	600			630.8	635.0
15	Iron Pipe	Dg700	700			733.0	738.0
16	Iron Pipe	Dg800	800			836.0	842.0
17	Iron Pipe	Dg900	900			939.0	945.0
18	Iron Pipe	Dg1000	1000			1041.0	1048.0
19	Iron Pipe	Dg1200	1200			1246.0	1255.0
20	Iron Pipe	Dg1400	1400				1462.0
21	Iron Pipe	Dg1600	1600				1668.0

1	Extended Iron Pipe	Dg80	80	88.5	89.0	93.0	98.0
2	Extended Iron Pipe	Dg100	100	114.0	114.0	118.0	118.0
3	Extended Iron Pipe	Dg150	150	165.0	165.0	169.0	170.0
4	Extended Iron Pipe	Dg200	200	219.0	218.0	220.0	220.0
5	Extended Iron Pipe	Dg250	250	273.0		271.6	274.0
6	Extended Iron Pipe	Dg300	300	325.0		322.8	326.0
7	Extended Iron Pipe	Dg400	400	426.0		425.6	429.0
8	Extended Iron Pipe	Dg500	500	530.0		528.0	532.0
9	Extended Iron Pipe	Dg600	600			630.8	635.0
Note:
1. W-Pipe: welded steel pipeline, Z-Pipe: zinc-plated steel pipeline
C-Pipe: cast iron pipeline, D-Pipe: ducitile iron pipeline.

S/N	Suitable for	Size	Nominal Diameter	OD (outside diameter)
SRCP	PRCP
	Stage 1	Stage 3
1	Concrete Pipe	Z100	100	150
2	Concrete Pipe	Z150	150	200
3	Concrete Pipe	Z200	200	260
4	Concrete Pipe	Z250	250	320
5	Concrete Pipe	Z300	300	380
6	Concrete Pipe	Z400	400	490
7	Concrete Pipe	Z500	500	610
8	Concrete Pipe	Z500-3	500	610
9	Concrete Pipe	Z600	600	720
10	Concrete Pipe	Z800-1	800		920
11	Concrete Pipe	Z800-3	800			940
12	Concrete Pipe	Z900	900		1030	1050
13	Concrete Pipe	Z1000-1	1000		1140
14	Concrete Pipe	Z1000-3	1000			1160
15	Concrete Pipe	Z1200	1200
16	Concrete Pipe	Z1400	1400

1	Extended Concrete Pipe	Zg300-3	300
2	Extended Concrete Pipe	Zg400-3	400

S/N	Suitable for	Size	OD
1	Plastic Pipe	P63	63
2	Plastic Pipe	P75	75
3	Plastic Pipe	P90	90
4	Plastic Pipe	P110	110
5	Plastic Pipe	P125	125
6	Plastic Pipe	P160	160
7	Plastic Pipe	P140	140
8	Plastic Pipe	P160	160
9	Plastic Pipe	P180	180
10	Plastic Pipe	P200	200
11	Plastic Pipe	P225	225
12	Plastic Pipe	P250	250
13	Plastic Pipe	P280	280
14	Plastic Pipe	P315	315
15	Plastic Pipe	P355	355
16	Plastic Pipe	P400	400
17	Plastic Pipe	P450	450
18	Plastic Pipe	P500	500
19	Plastic Pipe	P560	560
20	Plastic Pipe	P630	630
21	Plastic Pipe	P710	710
22	Plastic Pipe	P800	800
