PLC Control CNC Grinding Machine for Stem End
Valve Stem End Grinding Machine is used for grinding tip end face of engine valve. Ranging from Stem diameter 4.5 mm to 13 mm, Head diameter from 17 mm to 65 mm, Length from 70 mm to 220 mm. Our equipment is continually upgraded with the latest technologies in processing engine valve. Proving processing efficiency, ruducing labor intensity and save cost with automated engine valve production line.
Technical Parameter
| Before processing | ||
| processing range | Stem diameter:5-10 mm, Head diameter: 20-50 mm, overall length: 70-150 mm | |
| Raw material | 21-4N,4Cr10Si2Mo, Imported: SUH:3, SUH:35, Hardness: 25-45 HRC | |
| run out of stem end: 0.01mm | ||
| Grinding allowance | within 0.2 mm ( according to the size of valve ) | |
| After processing | ||
| Processing accuracy | Length accuracy | within ±0.02 mm sampiing and use a special inspection tool to measure 50 pieces. CPK≥1.33 |
| Square stem end-stem | ± 0.015 mm Sampling and use a special inspection tool to measure 50 pieces, CPK ≥1.33 | |
| surface treatment | within Ra 0.4, CPK≥ 1.33 | |
| Cycle time | within 6s/piece ( according to stem diameter of engine valve ) | |
| Slider Stroke | X-axis | 260 mm |
| Y-axis | 80 mm |
Machine Structure
1) HT250 machine bed and feeding slider, tempering heat treatment to elimate stress and it is not easy to deformation.
2) High speed electrical spindle. Spindle speed: 4000~8000 rpm/min ( the speed can be adjusted ) spindle of grinding wheel is bearing structure and can ber axial force.
3) Feeding of parts is controlled by double servo motor to achieve the action control of the amount of cutting and automatic cycle.
4) Adjustment the amount of cutting is controlled by touch screen. can set permission password after commission.
5) Speed of CBN Wheel: 80-140 m/s.
6) Transmission system: ball screw and linear guide.
7) Feed guide rail, slider and ball screw are lubricated automatically by electrical fillong oil pump.
8) All sealed sheet metal except for loading & unloading parts ( we can install safety door lock system, it is up to customer requirement.
9) Total power: 16 KW.
10) Water pump: 20L/min Multi-step high pressure pump.
11) Air compression: 0.6-0.8 Mpa

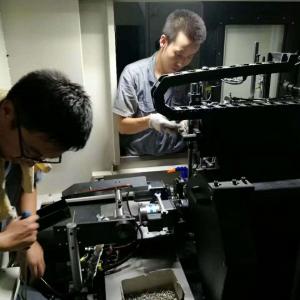

Loading & Unloading mechanism
1) With automatic loading & unloading mechanism.
2) The rest action should be carried out with grinding at the same time except for loading & unloading.
3) The frame should be meet different size valve and easy to adjust.
4) The loading & unloading mechanism has proper protection and safety measures and don't prevent the operatot from changing the fixture, grinding wheel and other operation.
5) With water recovery apparatus device at the blanking way to prevent the fluid from leaking.
6) When the loading & unloading mechanism is out of order, no material or full on frame, the alarm shall be ring and the cycle will be stop automatically.
Application
Our engine valve production line is used for manufacturing and processing engine valve ( inlet valve and exhaust valve ) in motorcycle, cars, truck, lawn machine, engine valve and so on.
Packaging & Delivery
Packaging details: standard export wooden case
Shipping port: Shanghai
Production time: 60-90 working days
FAQ
Q: What is the capacity of engine valve production Line ?
The standard capacity of engine valve is 3500~4000 pieces/8 hours two shaft one day is allowed 7000~ 8000 pieces/2 shaft ( the real capacity is up to the size of engine valve ).
Q: How many people are needed from raw material to ready valve?
We will provide complete engine valve production line from raw material to ready valve. We also provide technical support of manufacturing engine valve. 15~20 people is enough for this line if the staff are good at operation.
Q: How long is the delivery?
After placing an order, When we receive down payment, it will take 3 month to finish
Q: For installation this line your people is needed or we can do by ourselves?
The purchaser can't install and commission this line. But we will assist the purchaser to install. the charges are paid by the purchaser.
Q: What can we do for customer ?
Firstly, We are professional manufacturer for engine valve grinding machine. and we have more than ten years experiences in production engine valve grinding machine. our technology comes from TAIWAN & JAPAN. through those years upgrade and innovation, our technology has mature. Now, we have successfully developed automated engine valve production line and the line has been put into use by our customer and get good priase.
1) We can set up complete engine valve production line according to the customer's demands.
2) We can make upgrade proposal according to the real condition of customer
3) Provide technical training for how to operation and installation.
4) All machines have one year warranty. Within warranty period, except for wearing parts and non-human damage, the seller will repair or change the equipment.
5) We can set up operation standard and technology guidence.

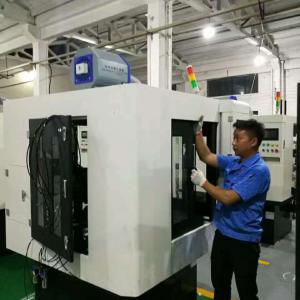

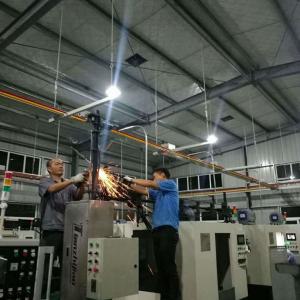

Our Factory
Suzhou Tianzhijiao Precision Machinery Co.,Ltd is specalized in engine valve grinding machine. Our machines can single production and also can automated production line. It is up to customer's needs. Now, our customer includes: FEDERAL-MOGUL POWERTRAIN, JAPAN FUJI OOZX INC., PT.FUJI OOZX INDONESIA, FUJI VALVE ( Guangdong ) Corporation, WORLD GROUP, DAIDOKPGYO ( Shenzhen ) and some famous valve factory in China.
