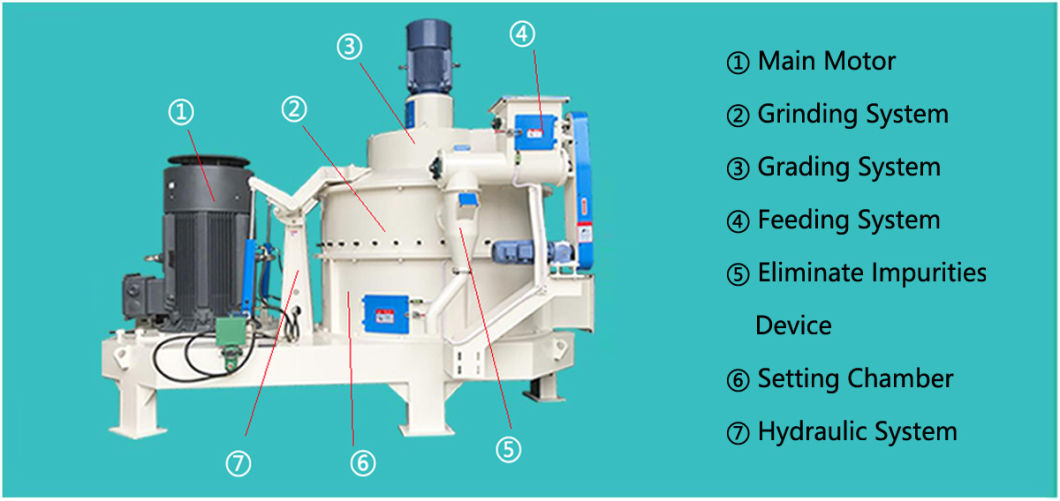

Xin Yuan SWFL 130 Pulverizer Structures
Main Motor:
The driving main motor of famous brand SIEMENS(BEDE) make the machine run efficiently. It's the largest
pulverizer at present with high capacity from 5-7 t/h according to different materials for aquatic feed processing.
Grinding System:
New In the grinding chamber, the patent tooth shape hammer, gear ring and wear-resistant plates enlarge the
using life of the machine. It's convenient to change by special installation.
Grading System:
Individual drive grading impeller for air classification, which makes the powder fineness between 60-200 mesh
by adjusting the speed of air flow, feeding and grading impeller.
Feeding System:
Coarse materials get into the grinding chamber through the feeder. The unique anti-bridge device avoids of
blocking while feeding.
Eliminate Impurities Device:
The patent eliminate impurities device with three air supplement doors help to get rid of iron,stone and hard
particle impurities 100% automatically. In this way, it can avoid damages of the inner structure and save the cost.
Setting Chamber:
In the setting chamber, the bearing with famous brand SKF is fixed by high strength bolts of 12.9 grade to assure
the machine runs continuously and stably.
Hydraulic System:
The hydraulic opening mechanism has got three gears with start-natural-shunt to make it easy and safe to
open the machine. The large observe doors outside the grinding and setting chamber also make it convenient to
check and maintain the inner structure and it's very safe for operating the machine.
Xin Yuan SWFL130 Pulverizer Applications

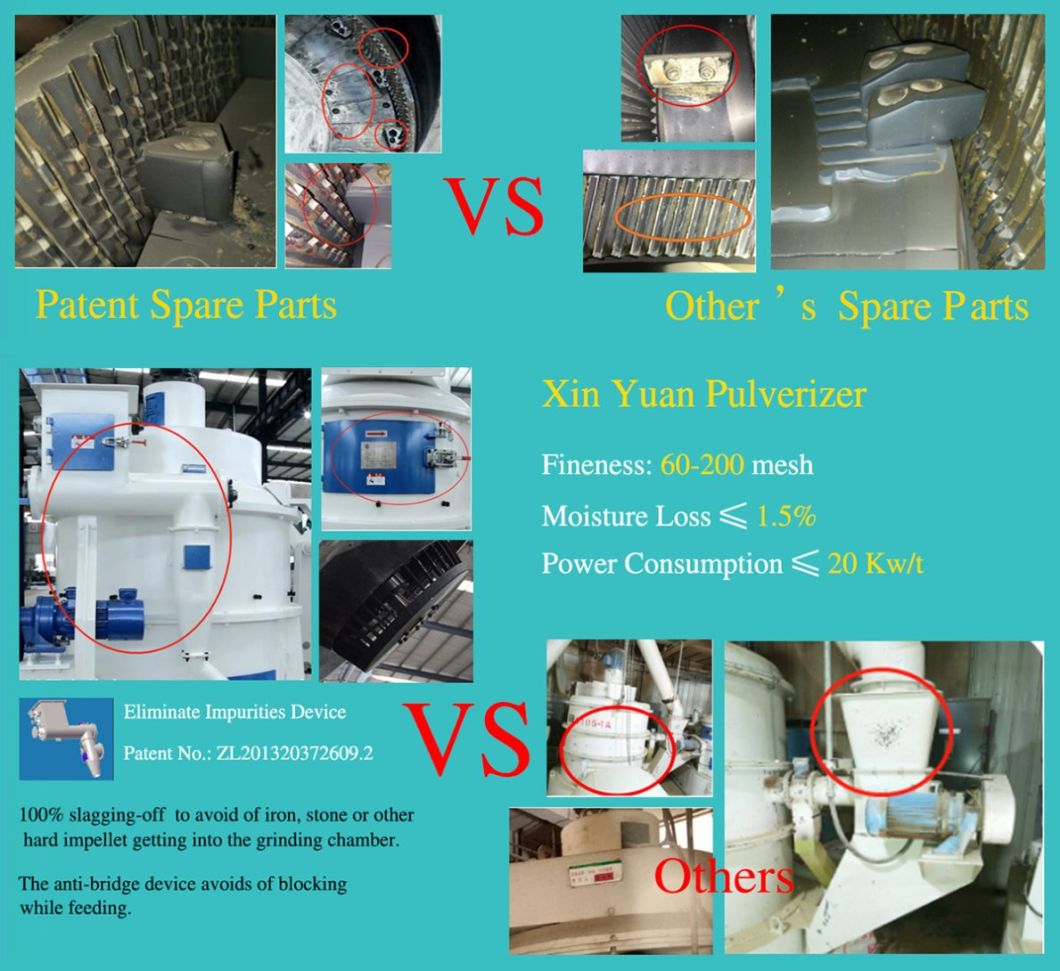

Xin Yuan SWFL130 Pulverizer Advantages
Wear-resistant Plate Shear Type Gear Ring
Patent No.: ZL201320360327.0 Patent No.: ZL201320372647.8
Using Life: ≥ 3000 t/set Using Life: ≥ 7500 t/set
Tooth Shape Hammer Eliminate Impurities Device
Patent No.: ZL201320372580.8 Patent No.: ZL201320372609.2
Using Life: ≥ 3000 t/set 100% get rid of iron, stone, hard & big impurities.
Xin Yuan SWFL Series Pulverizer Parameters

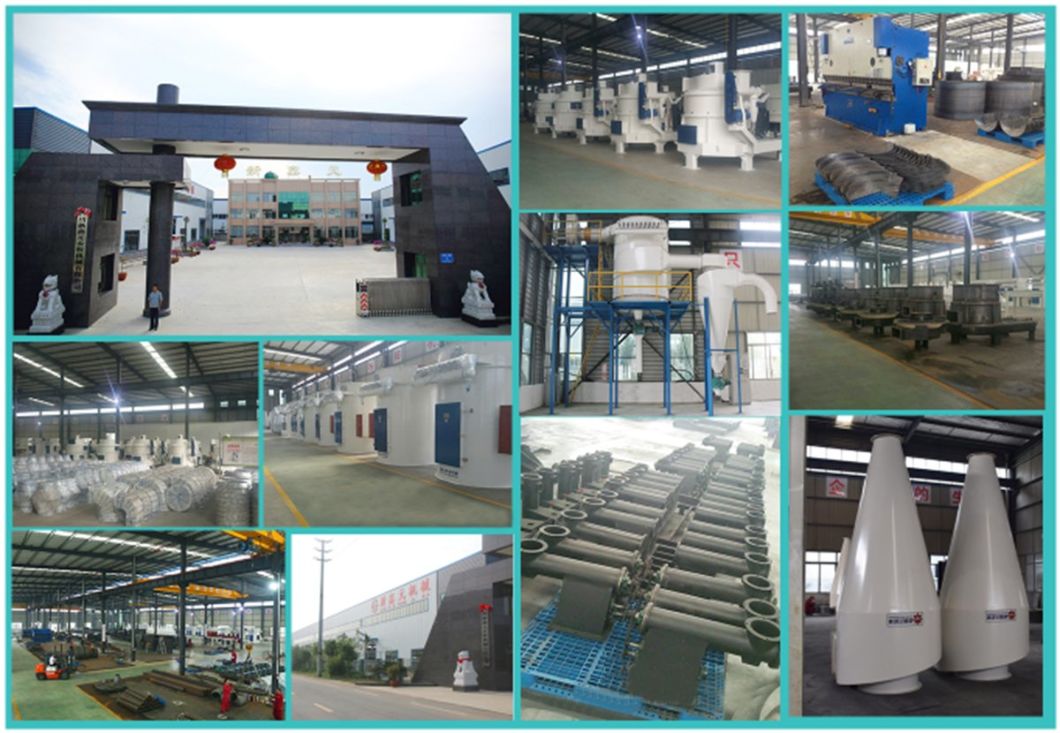

Our Factory and Workshop
Sichuan New Xin Yuan Agriculture and Animal Husbandry Co.,Ltd is a profession enterprise which provides
worldwide manufacture
and service for efficient & energy-saving vertical pulverizers, twin screw extruder, dryer and various spare parts.
Our company was established in 2012 and located in Qingshen industrial park of Sichuan, China. We've got 15
professionals and 90 production workers. More than 375 sets of pulverizers and over 300 times technology
upgrading services has been provided from domestic and overseas so far.
We have kept long-term cooperation with many feed machinery manufacturing enterprises and many large
feed groups , such as Haid Group, New Hope Group, Chai Tai Group, COFCO Group, Alpha Group, Buhler ,
Andritz , etc. Meanwhile, our SWFL series pulverizer and accessories have been sold and exported overseas to
Vietnam, Thailand, Malaysia, Philippines, Indonesia, India, Egypt,etc.

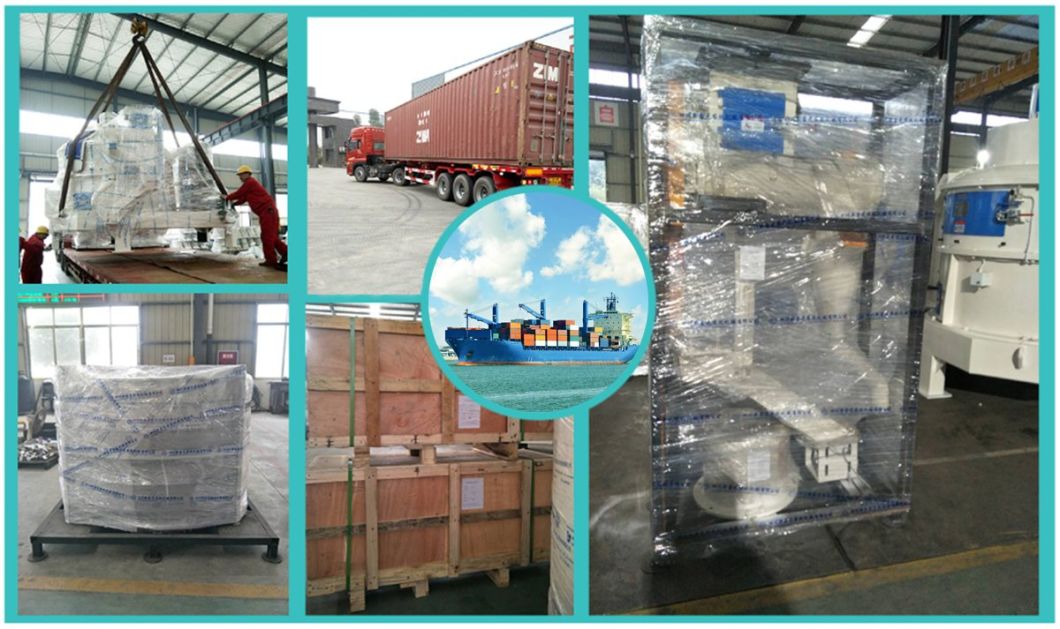

Delivery and Packages
Delivery: From Shanghai port by sea, FOB, CIF, CNF clients port.
Packages: Wooden Case/ Iron Case/ Pallet.
FAQ:
1. Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in our workshop before shipment.
2). We have got 7 national patents for pulverizer by our R&D engineers.
3). The hammer, gear ring and wear-resistant plates are added alloy to enhance the
using life of machine.
4). We have cooperated with many large feed groups overseas. Our feed machines run
stably and play good performance in their workshops.
2. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we can provide engineers for installation and free training for client's workers.
Our after-sale personnel will inspect and maintain annually to ensure our pulverizers run in
normal condition and play good performance.
3. Where is your factory located? How can I visit there?
Answer: Our factory is located in Meishan City, Sichuan Province, China. It is nearby Chengdu.
You can fly to Chengdu Shuangliu International airport first, and we can ask our driver to
pick you up at the airport.
If you are interested in our products, please leave messages and click "send" now!
Main Motor:
The driving main motor of famous brand SIEMENS(BEDE) make the machine run efficiently. It's the largest
pulverizer at present with high capacity from 5-7 t/h according to different materials for aquatic feed processing.
Grinding System:
New In the grinding chamber, the patent tooth shape hammer, gear ring and wear-resistant plates enlarge the
using life of the machine. It's convenient to change by special installation.
Grading System:
Individual drive grading impeller for air classification, which makes the powder fineness between 60-200 mesh
by adjusting the speed of air flow, feeding and grading impeller.
Feeding System:
Coarse materials get into the grinding chamber through the feeder. The unique anti-bridge device avoids of
blocking while feeding.
Eliminate Impurities Device:
The patent eliminate impurities device with three air supplement doors help to get rid of iron,stone and hard
particle impurities 100% automatically. In this way, it can avoid damages of the inner structure and save the cost.
Setting Chamber:
In the setting chamber, the bearing with famous brand SKF is fixed by high strength bolts of 12.9 grade to assure
the machine runs continuously and stably.
Hydraulic System:
The hydraulic opening mechanism has got three gears with start-natural-shunt to make it easy and safe to
open the machine. The large observe doors outside the grinding and setting chamber also make it convenient to
check and maintain the inner structure and it's very safe for operating the machine.
Xin Yuan SWFL130 Pulverizer Applications
Xin Yuan SWFL130 Pulverizer Advantages
Wear-resistant Plate Shear Type Gear Ring
Patent No.: ZL201320360327.0 Patent No.: ZL201320372647.8
Using Life: ≥ 3000 t/set Using Life: ≥ 7500 t/set
Tooth Shape Hammer Eliminate Impurities Device
Patent No.: ZL201320372580.8 Patent No.: ZL201320372609.2
Using Life: ≥ 3000 t/set 100% get rid of iron, stone, hard & big impurities.
Xin Yuan SWFL Series Pulverizer Parameters
Model | Output(t/h) | Main motor power(kw) | Grading motor power(kw) | Feeding motor power(kw) | Weight(kg) | Specification (mm) |
SWFL110 | 3.5-4.5 | 110 | 11 | 1.5 | 5600 | 3910*1890*2860 |
SWFL130 | 5.0-7.0 | 132 | 15 | 1.5 | 6500 | 4040*2098*3153 |
SWFL150 | 6.0-12.0 | 160 | 18.5 | 1.5 | 7500 | 4240*2307*3196 |
SWFL170 | 8.0-15.0 | 220 | 18.5 | 1.5 | 8000 | 4540*2515*3183 |
Our Factory and Workshop
Sichuan New Xin Yuan Agriculture and Animal Husbandry Co.,Ltd is a profession enterprise which provides
worldwide manufacture
and service for efficient & energy-saving vertical pulverizers, twin screw extruder, dryer and various spare parts.
Our company was established in 2012 and located in Qingshen industrial park of Sichuan, China. We've got 15
professionals and 90 production workers. More than 375 sets of pulverizers and over 300 times technology
upgrading services has been provided from domestic and overseas so far.
We have kept long-term cooperation with many feed machinery manufacturing enterprises and many large
feed groups , such as Haid Group, New Hope Group, Chai Tai Group, COFCO Group, Alpha Group, Buhler ,
Andritz , etc. Meanwhile, our SWFL series pulverizer and accessories have been sold and exported overseas to
Vietnam, Thailand, Malaysia, Philippines, Indonesia, India, Egypt,etc.
Delivery and Packages
Delivery: From Shanghai port by sea, FOB, CIF, CNF clients port.
Packages: Wooden Case/ Iron Case/ Pallet.
FAQ:
1. Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in our workshop before shipment.
2). We have got 7 national patents for pulverizer by our R&D engineers.
3). The hammer, gear ring and wear-resistant plates are added alloy to enhance the
using life of machine.
4). We have cooperated with many large feed groups overseas. Our feed machines run
stably and play good performance in their workshops.
2. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we can provide engineers for installation and free training for client's workers.
Our after-sale personnel will inspect and maintain annually to ensure our pulverizers run in
normal condition and play good performance.
3. Where is your factory located? How can I visit there?
Answer: Our factory is located in Meishan City, Sichuan Province, China. It is nearby Chengdu.
You can fly to Chengdu Shuangliu International airport first, and we can ask our driver to
pick you up at the airport.
If you are interested in our products, please leave messages and click "send" now!
