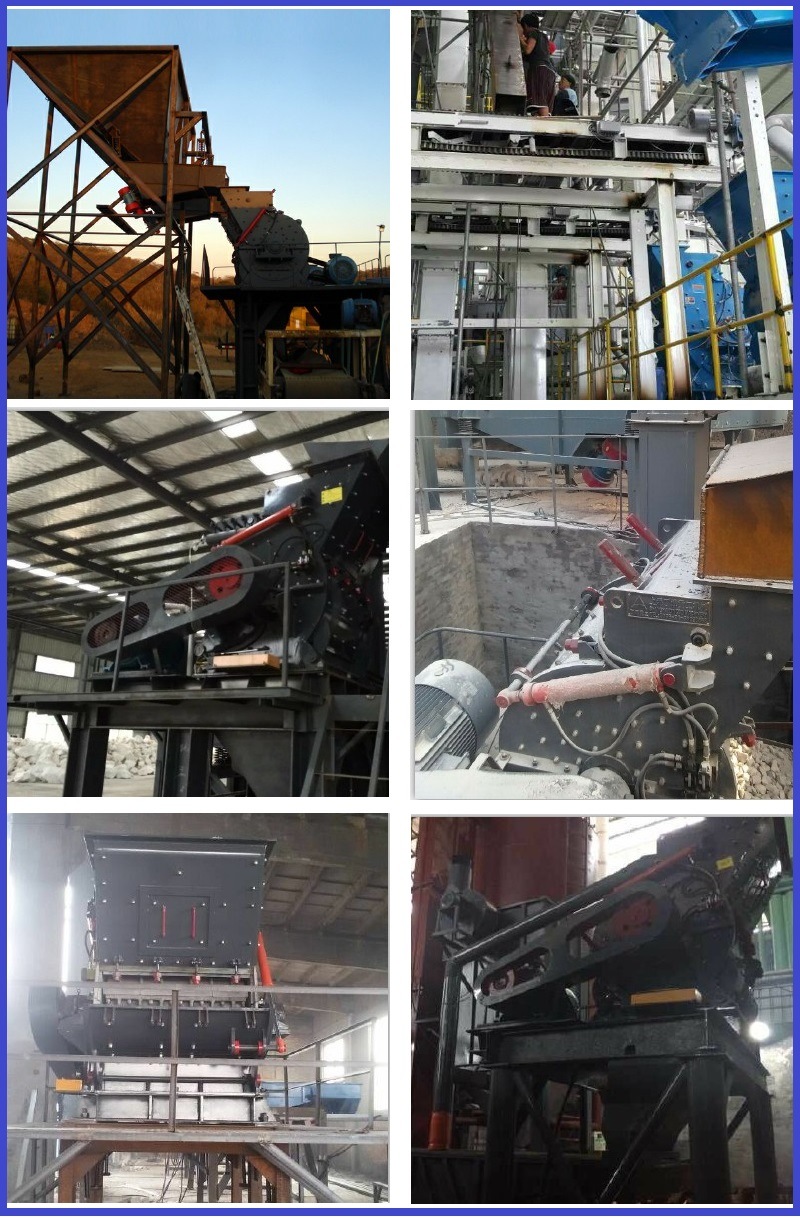

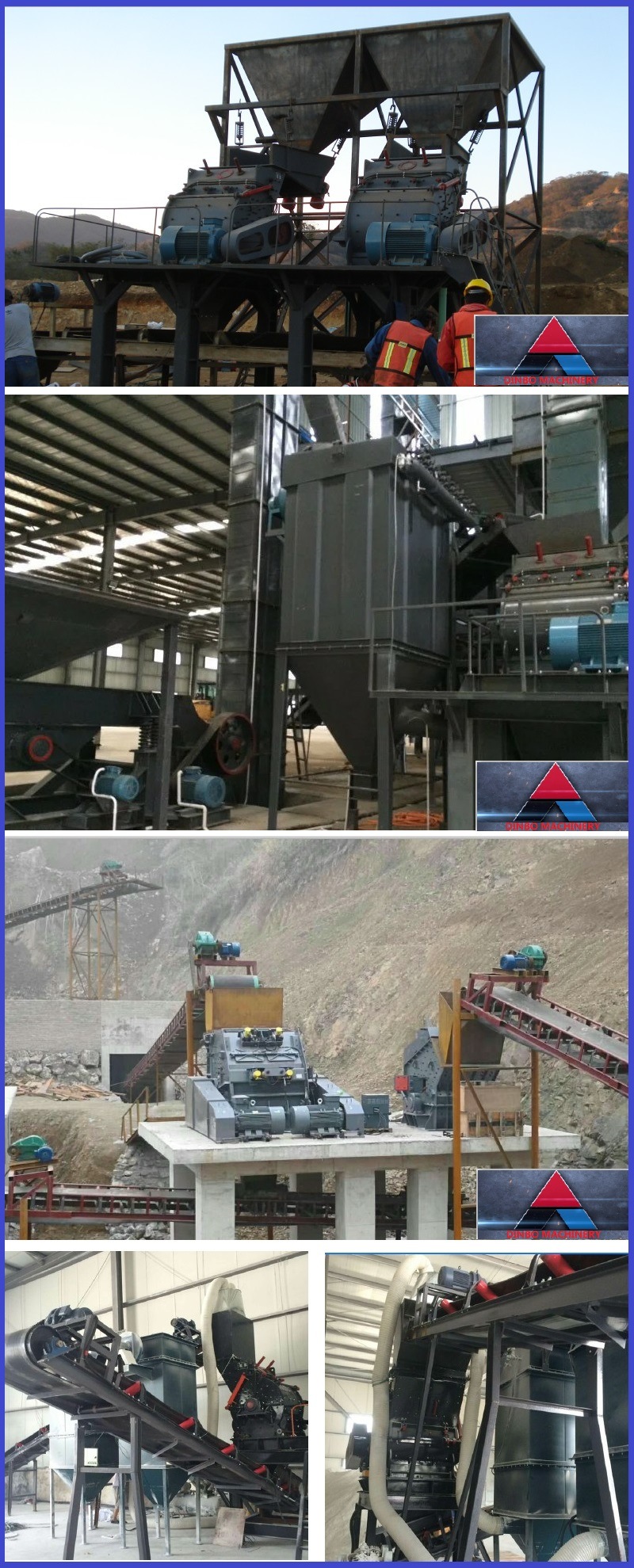

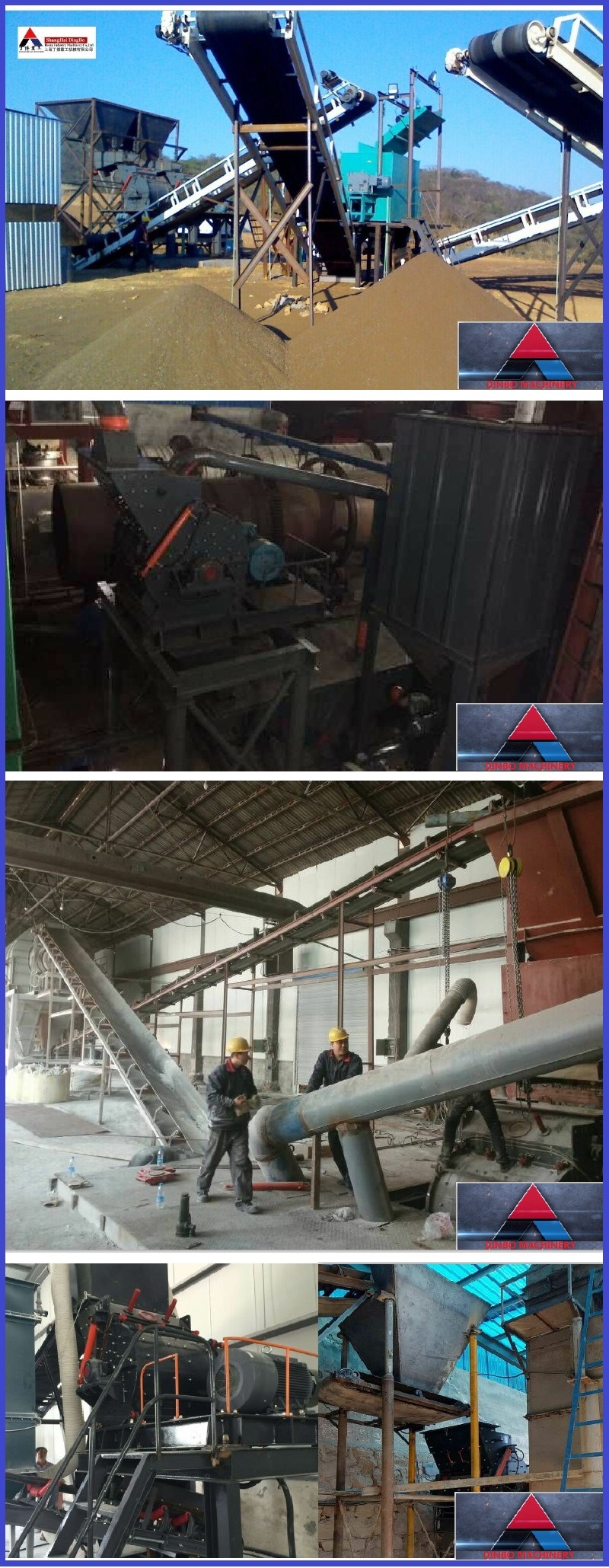

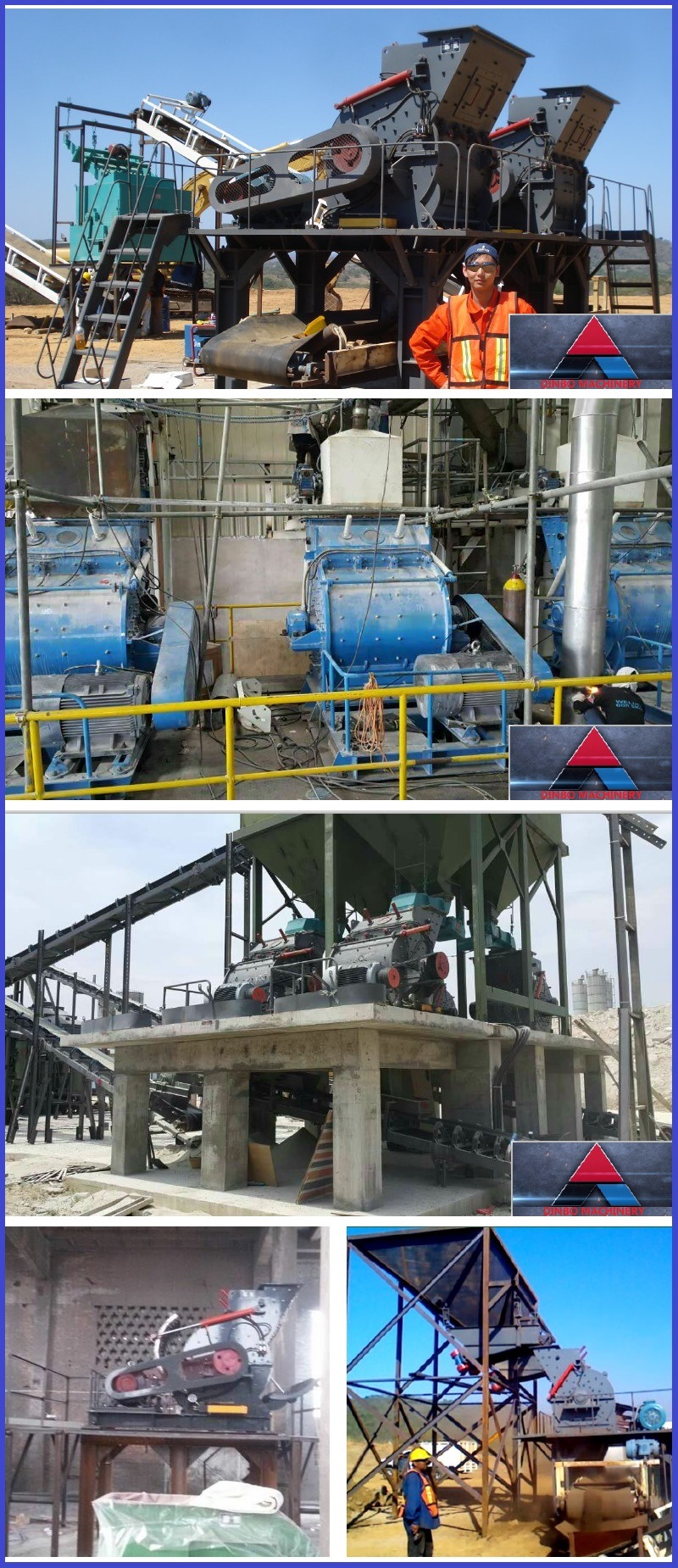

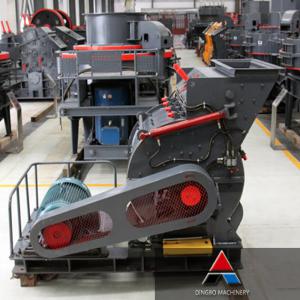

Europe Type Hammer Crusher Rough Hammer Mill
Description Of PC Series Grinding Mill:
Advantages and Features Of This Mill Machine:
1.High production capacity and high crushing ratio
2.low power consumption, umiform particle size
3.Mechanical structure is simple,compact and lightweight
4.Low investment cost, management, and conveniet
Working Principle Of Our Grinding Mill

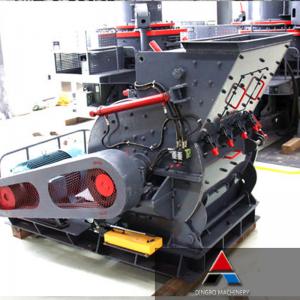

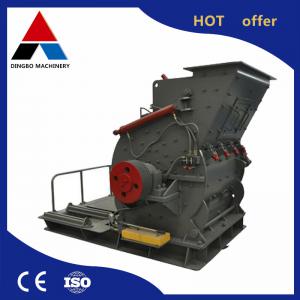

The Coarse Grinding Mill casing, rotor, bearing the hammer and the grate bars and other components. Upper and lower case in two parts, welded together by a steel plate after cutting, the remaining parts bolted into one. Set with high manganese steel liner inside the case, to facilitate replacement of worn; Its array of rules installed on the spindle distribution of the hammer, hammer and rotary table and through the rotor shaft formed. Host through the motor, V-belt driven spindle, so that the rotor rotates, hammer by the centrifugal force generated by rotation around the stretch to, bulk materials from the feed inlet into the crushing chamber, the high-speed movement of the hammer will be crushed. Broken by passing the material under.
Grinding Mill Pre-sale Services:
DingBo's technical support team which is throughout the world and have the professional knowledge level will help you to solve the problems that you meet in the using process of the mining and construction equipment.
We will accompany the you to understand equipment from the components manufacturing to the whole process of the whole machine production, detailed introduces the composition of equipment structure,so that you can choose the most suitable equipment
As a good adviser and assistant of clients, we can enable them to get rich and generous returns on their investments:
Train technical support team for clients;
Introduction the equipments for clients;
Select equipment model;
Deign and manufacture products according to clients' special requirement;
Grinding Mill During Sales:
Help clients to draft solving plans.
Product by the standard of technology strictly
Shipment by the contract in time
To provide comprehensive after-sales service
We'll send installation team in customer site, from the foundation construction, equipment installation, equipment commissioning and operating guidance for a package of services strategy. No matter inside and outside the warranty period, the company is to provide timely and thoughtful site maintenance, to safeguard the rights and interests of customers, is exempted from the customer's worries .
We will provide in operational training including how to reduce the maintenance frequency, prolong the service life of equipment and reduce loss, improve the efficiency of production operations such as guidance services, combined with the situation machine for customers to understand the equipment structure, working principle, design and basic maintenance and fault handling method .
We provide on-site service including check equipment status inspection and site conditions, provided free of charge to redesign services (especially in the most economic and reasonable configuration of existing equipment). We pay attention to environmental protection at the same time, reduce waste and environmental damage, solve the problem of noise and dust emissions in production, to bring you a double protection of economy and the environment .
| Model | PC4008-75 | PC4012-90 | PC4015-132 |
| Rotor diameter /mm | 750 | 900 | 1150 |
| Rotor length/ mm | 800 | 1200 | 1500 |
| Rotor speed r/min | 800-1000 | 800-1000 | 550-800 |
| Feed head size/mm | 320× 930 | 400× 1200 | 500× 1500 |
| Max feed size/mm | < 50 | < 50 | < 100 |
| Fineness/mm | 0-3 | 0-3 | 0-8 |
| Processing t/h | 10-30 | 30-60 | 60-100 |
| Motor Power/Kw | 55-75 | 75-90 | 110-132 |
| The number of hammer | 18 | 32 | 32 |
| Dimensions L*W*H/mm | 2310*1665*1610 | 2840*2100*2020 | 3720*2650*2540 |
