Whole Set Ceramic Sand Production Equipment

Product Description  Ceramic sand is a kind of products of ceramic particle , which has a high fracturing intensity ,mainly used for oilfield as downhole proppant , The usage is to increase the output of oil and gas. So ceramic sand is a kind of gr

Technical Feature

  • Reference to The Form
  • Standard Export Packing
  • L/C, T/T, D/P
  • Ceramic Sand Production
  • ISO9001,ISO14000
  • More Than 30 Years
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$100~300

PRIMARY PARAMETERS

Design
by Our Professional Engineer
Technical Parameters
See Technical Table
Output
Can Be Customized
Testing
We Offer
Trademark
ZK
Specification
ISO9001, ISO14000, CE
Origin
Zhengzhou, Henan, China

DETAIL DESCRIPTION

Product Description



Ceramic sand is a kind of products of ceramic particle , which has a high fracturing intensity ,mainly used for oilfield as downhole proppant , The usage is to increase the output of oil and gas. So ceramic sand is a kind of green and environmental protection products . Ceramic sand made of high quality bauxite and other additive material, granulating and calcining to increase the strength and density. It's a substitute of natural quartz sand, glass sand, metallic sand and other low intensity proppant ,Ceramic sand is the best proppant to increasing oil and natural gas output. In brief, the process of manufacturing ceramic sand is crushing→dosing→grinding →granulating→calcining cooling →screening packing ..

Following is the description ceramic sand process:

1.crushing The size of bauxite from mine is around 300~500mm, low moisture, After two-stage crushing which is composed by Jaw crusher and hammer crusher, the size of bauxite will be around 25mm.

2. Dosing Bauxite, manganese powder, and other additional material will be transferred to belt conveyor through belt weigher to make sure the suitable proportion .If the moisture of bauxite or other material is more than 6% need to be drying at first .

3. Grinding In grinding process ,the main equipment is ball mill and separator to make a close-circuit grinding system .The granulator required the material size will be lower than 300mesh .

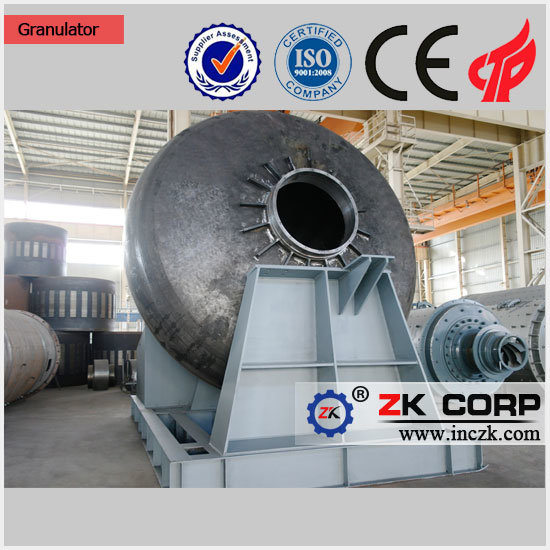

4. Granulator Raw material powder after grinding stored in hoppers .generally there have 2-3 hoppers, it can be discharged separately, also can be discharged with many hoppers collocation. Raw material powder will be transfer into a small silo, the silo has screw metering device or belt weigher .The material will be conveying to granulator, meanwhile the water will be spraying to granulator by pipeline pump. When granulator rotating, the raw material can be made into various particle size Raw ceramic sand will be transported to rotary sceen by belt conveyor, qualified sand will be calcined in rotary kiln, and the oversize will returns to raw material grinding process. The granulator system is totally automatic, continuously, matching with bag-type dust collector, can purification the exhaust air.

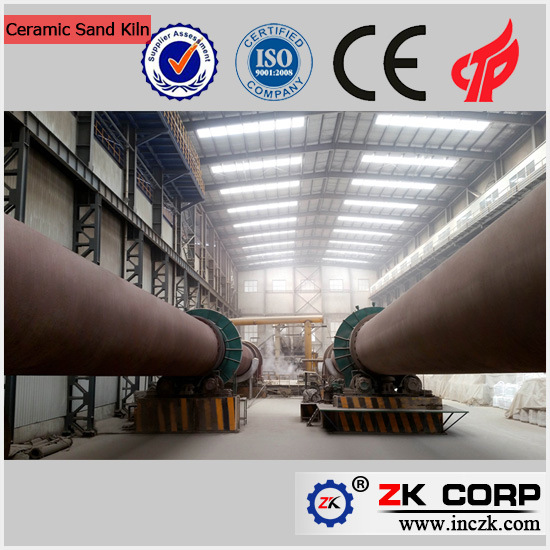

5.Calcining Raw ceramic sand be calcined in rotary kiln , with the revolution and slope of rotary kiln, calcined ceramic sand move toward to the kiln head, meanwhile, pulverized coal spray into the kiln burner from kiln head, raw ceramic sand will be calcined into ceramic sand with high intensity in the rotary kiln.
Whole Set Ceramic Sand Production Equipment





6. Pulverized coal preparation Pulverized coal preparation use ball mill or vertical mill, which can drying the coal with hot wind from kiln hoodsl. Use separator can adjust the fineness of pulverized coal at will; it provides sufficient conditions for full burning of pulverized coal.

7.Fineshed product cooling The cooling of ceramic sand genergally use rotary cooler, it is simple and reliable when working, secondary air of cooler absolutely enter to the kiln, multi-channel burner, can save a lot of energy. The temperature of ceramic sand after cooler is very low, can be touched by hand.

8.Screening Ceramin sand after the cooler can be directly transported to multistage vibrating screen, it can be divided into many particle grade according to requirements.

Ceramic sand specification

Model1: 0.45-0.9mm(20 mesh-40 mesh) high intensity and middle density

Model2:  0.9-1.25mm (16 mesh-20 mesh) high intensity and middle density
Model 3: 1.0-1.70mm (12 mesh-18mesh) high intensity and middle density
Model 4:  0.224-0.65mm (40mesh-60mesh) high intensity and middle density
9.Packing Ceramic sand after screening will be transported to different silos , the silos connected with packing machine , finished products will be transferred to storage house to prepare for delivery. All dust points in the process need match with dust collector to purification the exhaust air .


Whole Set Ceramic Sand Production Equipment
Our Services

We can provide complete technology solutions and whole set production equipments for ceramic sand plant of capacity 10000-30000 tons per year . Our professional engineer can make the design according to project situation to save energy consumption by 35% .


Company Information

Henan Zhengzhou Mining Machinery Co., Ltd is located in Wulong Industrial Park of Zhengzhou Xingyang which is the capital of Henan Province. It is at the junction of 310 State

Road and Xingmi Road, close to the highway, railway station, West Zhongyuan Road, downtown area of Zhengzhou and Zhengzhou International Airport. The transportation condition is

very convenient. The main products of company include: ball mill, rotary kiln, vertical preheater, cooler, crusher, metallurgical coke oven, magnetic separator, flotation machine, classifier,

feeder, bucket elevator, preheater, dust collector, elevator, drier, and other equipments relate to metallurgy, cement, lime, mineral processing, refractory, chemical industry.

The products of Henan Zhengzhou Mining Machinery Co., Ltd have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico,Armenia, Africa, South America and other countries and regions.
Whole Set Ceramic Sand Production Equipment




FAQ



In order to give you a responsible quotation, you can inform us the following information:

1. What's the material you are going to deal with?

2. What's the granularity of the material?

3. What's the granularity of the final products are you going to achive?

4. What's the producing capacity you are going to achieve?

Our engineers will suggest you the most suitable one for you according to your information.
