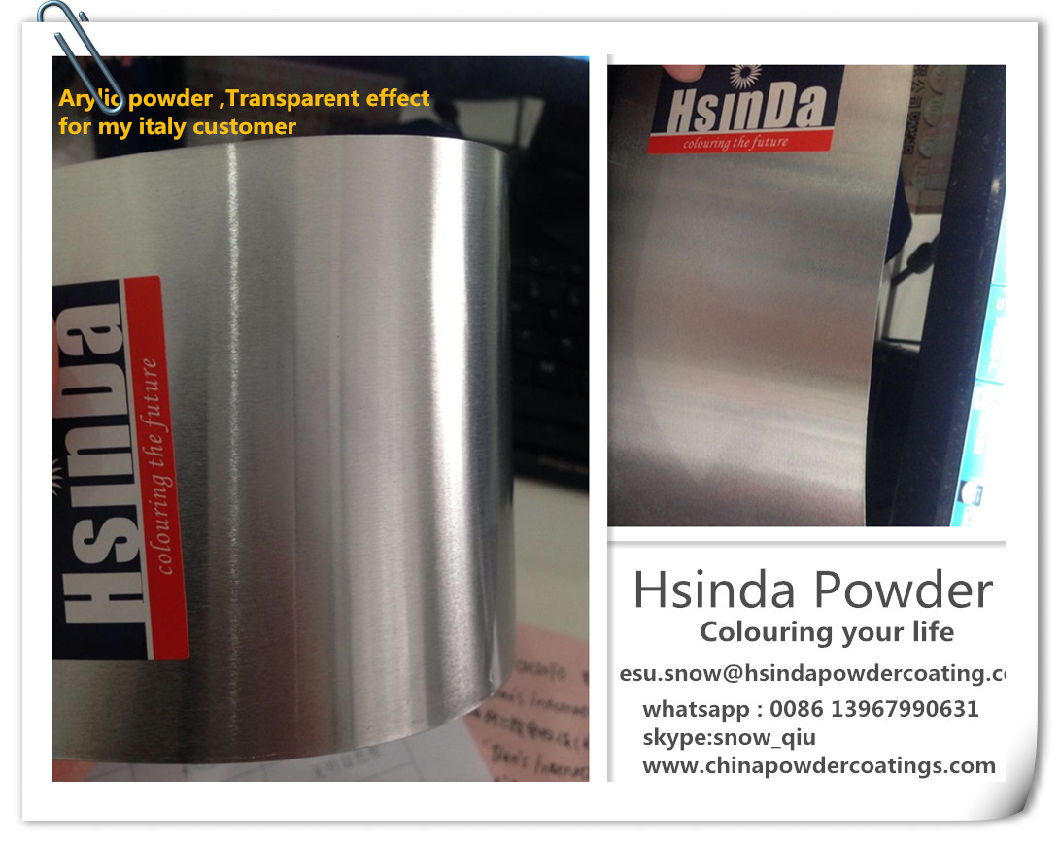

1. Pictures of Product
2. Product details:
Product Details | |
Type | Epoxy Powder Coating; Polyester Powder Coating; Epoxy-Polyester Powder Coating |
Color | RAL and PANTONE or customized |
Surface Finish | transparent |
Gloss level | acrylic |
Particle Size | Average 32-42μm |
Specific Gravity | 1.2-1.7g per cubic meter |
Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
film thickness | Not less than 100μm |
Application Recommendation | |
Application Voltage | 60-90 KV |
Gun to Component Distance | 15-30CM |
Curing Temperature | 180-200ºC,10 min-15 min |
Powder coated Film Mechanical Properties | |
Adhesion | Cross-cut(2mm),no loss of adhesion |
Impact Resistance | Direct impact 50kg/cm |
Pencil Hardness | 1H-2H |
Cupping Test | 6mm Mandrel |
Bending Test | 5mm |
Powder Coated Film Chemical Resistance | |
Salt Spray Test | 5% NaCl Solution for 500 hours - No change |
Acid Resistance | 5% HCL for 48 hours dip test - No change |
Alkali Resistance | 5% NaOH for 48 hours dip test - No change |
Storage Stability | |
Store in ventilated, dry, clean room, temperature < 25ºC | |
Relative humidity 50-65% | |
Away from direct sunlight, fire, heat | |
For best performance, use within 6 months |
4. More Products:
Company Information
1. Introduction of Company:
Chengdu East Union High-Tech New Materials Co.,ltd .
u Business Type: Manufacturer, Trading Company
u Year established: 2010
u Company Certifications:Supplier Assessment Certificate; ISO9001;SGS
u Main products: Epoxy powder coating, Polyester powder coating, Epoxy- polyester
powder coating etc.
u Production Line: four advanced large-scale production lines, two experiment
production lines
u Monthly capacity: 400 tons
u Export market: Domestic Market, Africa, South America, Western Europe, Mid East etc.
u Advantage: Well- advanced manufacturing equipment, professional testing facilities,
and excellent research group.
2. Why Choose US?
We are factory ,Our Powder Brand ''HSINDA''
we manufacture powder coatings that add value to our customer's products - protection, function, color, effect,gloss and texture.
A better finish. For a better world.
3, Our Powder Coating Advantage:
(1) Spray ratio is 90%;
(2) 1KG of powder coating can spray 8-10 square meter;
(3) Powder Coating adhesive force is stronger 8-10 years;
(4) Powder Coating is not easy to fade in 5-8 years;
We can do more
Worried about Powder Quality?Delivery Time?--No.It's no problem
We are a Trade Assurance Supplier .
100% refund if the orders are not meeting the delivery or quality terms we agreed.
Trade terms | FOB, CIF,CRF,CNF |
Payment terms | T/T, L/C , West Union ,Moneygram , Paypal etc |
Payment condition | 30% deposit in advance,70% balance before shipment |
Delivery time | 3-7 days after deposit |
Packing | Inner packing:polyethylene bag Outer packing:paper carton |
Net Weight:20Kgs/25kgs; Gross Weight:21kg s/26kgs | |
shipping | By sea, by air and by express delivery |
