Brief introduction
BT-9300ST is an intelligent dual lens particle size analyzer which adopts integrated design, and all of the operations can be completed automatically under the control of the computer. It has particular functions included auto test, auto alignment, auto water supply, auto drainage, auto bubble removing, auto cleaning, etc. It adopts high performance imported semiconductor laser and life time is greater than 25000 hours; adopts anti-dry ultrasonic dispersing technology, so opening ultrasonic will not damage the instrument when circulating pool without water. The instrument has outstanding characteristics including accuracy and good reliability, good repeatability, easy operating, fast test speed, etc. It is a new generation of particle size analyzer that integrates the technologies of laser, computer and photoelectron, and especially suits the laboratories of enterprises, universities and research institutes to use.
Applications
1.Non-metal powder: Calcium carbonate, talcum powder, kaolin, zirconium silicate, wollastonite, graphite, konilite , tourmaline, mica, barite, gypsum, bentonite, diamond, quartz, diatomite, feldspar, tremolite, clay, garnet, vermiculite, titanium pigment, etc
2.Metal powder: aluminum powder, iron powder, magnesium powder, molybdenum powder, copper powder, zinc powder, rare metal powder and various alloy powders etc.
3.Other powders: pharmaceutical, pesticide, abrasive, food, cement, ceramics, soil, pigment, scientific research teaching, oil exploration, geological analysis, the river sediment, electronic materials, chemical materials, military materials, battery materials, various emulsion, coating, etc.
Specifications
| SizeRange: | 0.1-1000 um |
| Sample Inflow Method: | Built-in automatic circulating and dispersing system |
| Repeatability: | <1% (CRM D50) |
| Accuracy: | <1% (CRM D50) |
| Measuring Principle: | Mie scattering theory |
| Laser: | optical fiber semiconductor laser |
| Operation System: | Win XP/ Win 7 |
| ConnectionPort: | USB or RS232 |
| Photo Detector: | 86 PCS |
| Ultrasonic Power: | 50 W |
| Tank Capacity: | 500 ml |
| Circulating Flow Rate: | 500-2500 ml / min |
| Voltage: | 220V, 50/60 Hz |
| Outer Dimension: | 640*420*400mm |

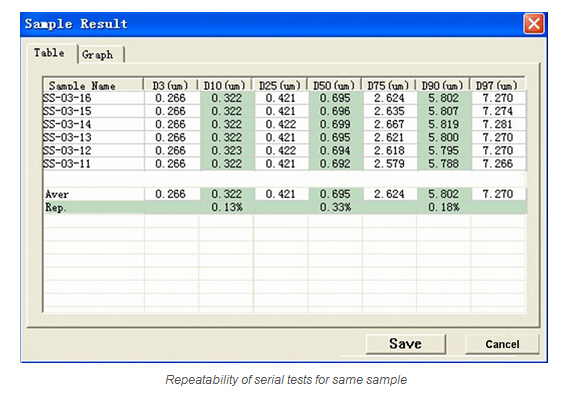

Good repeatability
Reasons for good repeatability:
Laser, detector and signal transmission system are stable and reliable.
Stable and effective dispersing system.
Automatic alignment system keeps the instrument always in optimum condition.
Sampling rate can reach 3500 times/second, and mass data can effectively reduce the influence of repeatability caused by little abnormal data.
Good accuracy
Reasons for good accuracy:
Adopts dual lens optical system invented by Bettersize, which improves the precision of measurement greatly.
Photodetectors reach 86 pcs, plus high performance software, can carry out auto test accurately no matter it is single peak, double-peak or multi-peak samples.
Complete sample preparation system includes circulation, ultrasonic dispersing, stirring, auto water supply, auto drainage and auto cleaning.
Use standard sample to verify and result is identical with nominal value.
Compare with test results of overseas advanced laser particle size analyzer: good consistency.
