Application

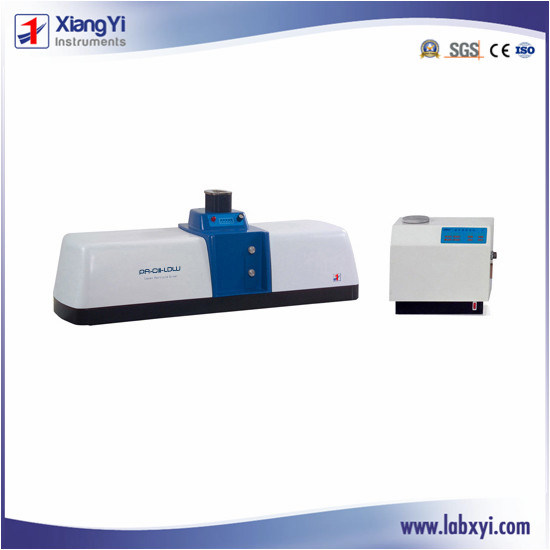

PA-CIII-LDW Auto Sampling Dry & Wet Dispersion Particle Size Analyzer , dry dispersion mode can be used to measure the samples that can't be dispersed in liquid but in air, the wet dispersion mode can be used to measure the samples dispersed in liquid.
Principle
Uses the principle of laser light scattering to determine particle size distribution. Our instruments own the advantages of wide measurement range, good repeatability, simple operation and etc. through our system integration and optimization for optics, mechanics, electronics and computer.
Report Items
Particle size distribution table, particle size distribution curve, median diameter, Characteristic particle size, width coefficient, SSA, industrial segmented percentage of particles, > 80μm percentage (fineness), other synthesis parameters of particle size , etc.
Features
Software functions
Measuring Range: 0.1-1000μm
Sample Feeding: dry and wet dispersion
Repeatability: <3%
Accuracy of Stepper Motor: 0.5μm
Pump: 200W, max speed: 5000rpm
Motor Power of Dry Sampling System: 2W, stepless control
Measurement Duration: 1-2minutes
Number of Detectors: 54
Light Source: He-Ne lase, 2.0 Mw, 0.6328 μm
Environmental Requirement: Temperature: 5-35°C, Humidity: <85%
Configuration
PA-CIII-LDW Auto Sampling Dry & Wet Dispersion Particle Size Analyzer , dry dispersion mode can be used to measure the samples that can't be dispersed in liquid but in air, the wet dispersion mode can be used to measure the samples dispersed in liquid.
Principle
Uses the principle of laser light scattering to determine particle size distribution. Our instruments own the advantages of wide measurement range, good repeatability, simple operation and etc. through our system integration and optimization for optics, mechanics, electronics and computer.
Report Items
Particle size distribution table, particle size distribution curve, median diameter, Characteristic particle size, width coefficient, SSA, industrial segmented percentage of particles, > 80μm percentage (fineness), other synthesis parameters of particle size , etc.
Features
- Adopt unique scattered light detection around a sphere surface (patent no.:95223756.3), after lens (also known as "reversal" or "converging light") Fourier transform structure, place large angle detectors on proper spherical surface, to realize the accurate focusing of large angle scattered light.
- Use integrative laser emitter (patent no.:00228952.0), effectively reduce the thermal deformation of laser tube, the influence of outside mechanical vibration on the stability of the instrument. Stepper accuracy of automatic centering system can reach 0.5 micron, the user's operation is more convenient
- Wet sample feeding system adopts booster pump, top speed can reach 5000 rpm, can effectively realize the circulation of large particles.
- Vibration motor of dry sample feeder system is adjustable, to realize effective control of beam obstructions
- Measurement window material uses high quality optical materials, window components adopt full stainless steel material, wear-resisting, easy to clean, and maintenance is convenient.
- Light path system uses fully-enclosed design, preventing dust pollution and outside light pollution.
Software functions
- Borland Visual C++ development environment, concise and user friendly operating interface.
- Automatic Search of communication port
- Automatic & manual measurement of full compatible operation display.
- Easy switch among different types of reports.
- Repair damaged photocell by software
- Auto clear of Electric noise.
- Sample parameters editing, selecting and saving function.
- Chinese and English report.
- Customer size grading function.
- Free switch of control software between simulation model and control measurement.
- Dynamic display of all test process by process bar.
- Password protection for key information.
- Multiple ways of selecting "measurement parameters".
- Multiple document formats.
- Operating log and measuring log function.
- Data input function.
- Reports can be exported as Word, Excel format or other text format files;
- Statistics of multiple documents.
- Two distribution models: Rosin-Ramler, multi-wave crest;
- Two report models: General report, statistics;
- Two accumulative directions: small to large, large to small;
- Single step adjustment
- Single step control of the sample feeder
- Safety password function
Measuring Range: 0.1-1000μm
Sample Feeding: dry and wet dispersion
Repeatability: <3%
Accuracy of Stepper Motor: 0.5μm
Pump: 200W, max speed: 5000rpm
Motor Power of Dry Sampling System: 2W, stepless control
Measurement Duration: 1-2minutes
Number of Detectors: 54
Light Source: He-Ne lase, 2.0 Mw, 0.6328 μm
Environmental Requirement: Temperature: 5-35°C, Humidity: <85%
Configuration
| SN | Item description |
| 1 | Main host 1 set |
| 2 | Loop injection system 1 set |
| 3 | dedicated software 1 pc |
| 4 | Quiet pump 1 set |
| 5 | Cold and dry machine 1 set |
| 6 | Vacuum Cleaner (BF-500) 1 set |
| 7 | Transport Packaging 1 set |
| 8 | Air purification device 1 set |
| 9 | Polyethylene hose 4 m |
| 10 | Events lift lever 1 set |
| 11 | Dedicated injector tube 2 pcs |
| 12 | Nine-pin signal line 2 pcs |
| 13 | Power Line 2 pcs |
| 14 | Power socket board 1 pc |
| 15 | Cylinder (10,100ML) each one |
| 16 | Dropper 1 pc |
| 17 | Plastic bottle 1 pc |
| 18 | Wash ears ball 1 pc |
| 20 | Sample Spoon 1pc |
| 21 | VGT-1730T Ultrasonic Cleaner |
