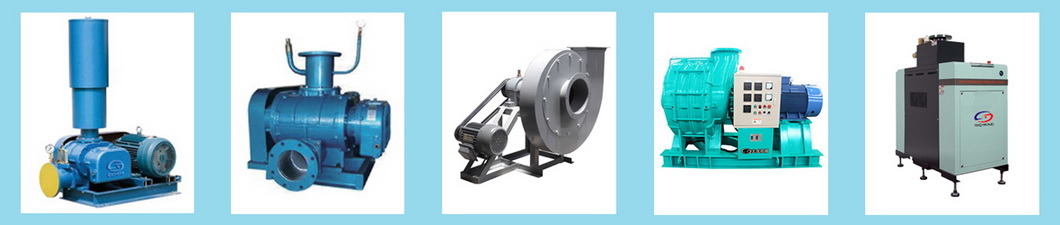

CE, ISO9001, SGS Approved roots blower, centrifugal blower, turbo blower Manufacturer
Product Introduce
DICHENG BLOWERS include DSR, DSR-G Tri-lobe roots blowers, DSR-V roots vacuum pump, DS-L, DRRF Twin-lobe roots blowers, DSG high speed roots blower, DFSR roots steam compressor, DH rotaty blowers, DCB Centrifugal blowers, C multistage centrifugal blowers and DC air suspension turbo blowers, the parametert range is air capacity 0 to 13500 m3/min, Pressure -49 to 98 kpa. Our blowers are mainly used in Waste water, Cement & lime, Aquaculture, Bulk material handling, Dairy, Vacuum excavation, Chemical Industry, Pulp & paper, Power generation, Milling & baking and other Blower application.

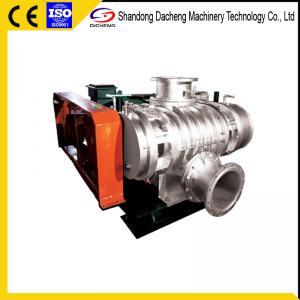

DICHENG Roots Blowers
DICHENG Roots Blowers adopts the advanced technology of Japan,
the pressure is from -49Kpa to 98Kpa.
The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.
This air blower is mainly applied to such trades as water treatment, air transport, mine, vacuum packaging, aquaculture and etc. Our products export to Southeast Asia, Europe, North and South America and etc.
| Model | Air capacity | Pressure | Model | Air capacity | Pressure |
| DSR Roots Blower | 0.78 ~ 188.70m³/min | 9.8 ~ 58.8Kpa | DSR-G Roots Blower | 0.45 ~ 172.4m³/min | 63.7 ~ 98Kpa |
| DSR-V Roots Vacuum Pump | 0.86 ~ 58.65m³/min | -9.8Kpa ~ -49Kpa | DSG Roots Blower | 0.6 ~ 95.5m³/min | -49 ~ 98Kpa |
| DFSR Roots Steam Compressor | 5 ~ 130m³/min | 58.8 ~ 80Kpa | DS-L Roots Blower | 18.3 ~ 434m3/min | 9.8 ~ 49Kpa |
| DRRF Roots Blower | 38.9 ~ 224.9m3/min | 9.8 ~ 98Kpa |

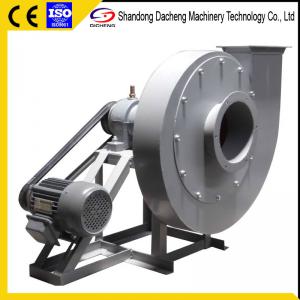

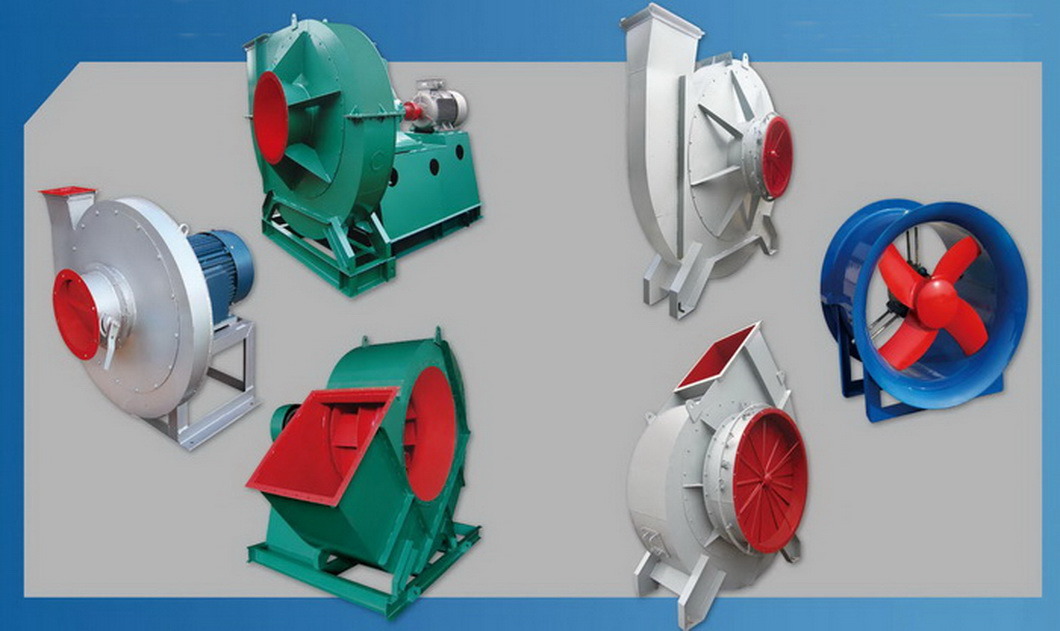

DCB Centrifugal Blower/Fan
DICHENG centrifugal blowers contain more than 100 series and can operate with multiple blowers to meet customers' various air volume and pressure requirements. The blowers can be made by high-quality steel, stainless steel, glass steel or other corrosion-resistant materials according to customer requirements. It is suitable for various occasions and is widely used in boilers, workshops, mines, textiles, oil fields, chemicals, kilns, metallurgy, building materials and other industries. The centrifugal blowers produced have been inspected by the Import and Export Inspection and Quarantine Bureau and exported to all countries in the world and have been trusted by customers from various countries.
| Model | Air capacity | Pressure | Model | Air capacity | Pressure |
| DCB4-2x79 | 12700 - 438000m3/h | 716 - 2609Pa | DCBY4-73 | 16156 - 810000m3/h | 868 - 5423Pa |
| DCB9-26 | 2198 - 123090m3/h | 3407 - 16250Pa | DCB9-19 | 824 - 63305m3/h | 3253 - 15425Pa |
| DCBG4-73 | 16156 - 810000m3/h | 1400 - 7218Pa | DCB4-79 | 1970 - 226500m3/h | 706 - 3334Pa |

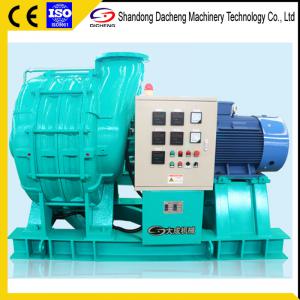

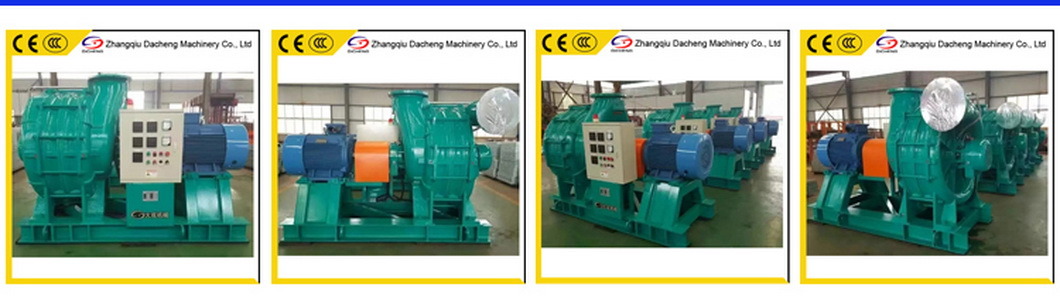

C Multistage Centrifugal Blower
ACHENG MACHINERY offers a full range of multistage centrifugal blowers with 20 models to choose from. We have the right blower for your application today and our Research and Development department is developing new models to meet your needs tomorrow.
Product performance ranges up to 98Kpa pressure or to -40Kpa vacuum and flows from 35 to 220 m³/min. Dacheng manufactures blower and process control systems as well as provides complete blower packages with accessories to meet a wide variety of applications.
Model | C35~C60 | C65~C90 | C100~C150 | C160~C220 |
Air Capacity (m3/min) | 35~60 | 65~90 | 100~150 | 160~220 |
Pressure (Kap) | -49~78.4 | -49~88.2 | -49~98 | -49~98 |
Rotating Speed (rpm) | 3550 | 3550 | 3550 | 3550 |
Inlet Diameter (mm) | 200 | 300 | 350 | 400 |
Outlet Diameter (mm) | 150 | 250 | 300 | 350 |

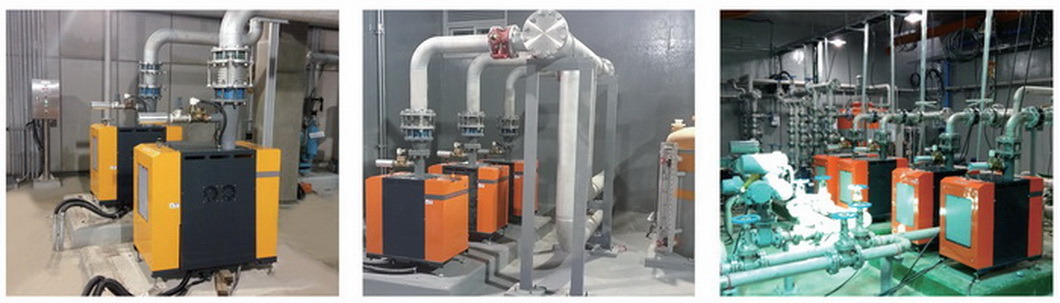

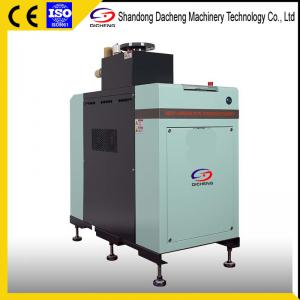

DC Air Suspension Turbo Blower
DICHENG DC Series Air suspension turbo blower is developing with TNE Korea Co., Ltd from Korea. The Core components(PMSM) and super high speed controller are imported from Korea. The air capacity is from 6 m3/min to 320 m3/min, the pressure is from 40 Kpa to 150 Kpa. The advantages of the air suspension turbo blower are air suspension bearings, aviation aluminum alloy three-way flow impeller, closed loop air cooling system, modular control and detection system, Anti-surge protection and etc
| Model | Air capacity | Pressure | Model | Air capacity | Pressure |
| DC500 | 210 to 320m3/min | 60 to 100Kpa | DC400 | 174 to 275m3/min | 60 to 100Kpa |
| DC300 | 135 to 260m3/min | 40 to 100Kpa | DC250 | 108 to 220m3/min | 40 to 100Kpa |
| DC200 | 88 to 172m3/min | 40 to 100Kpa | DC150 | 68 to 132m3/min | 40 to 100Kpa |
| DC100 | 45 to 89m3/min | 40 to 100Kpa | DC75 | 34 to 66m3/min | 40 to 100Kpa |
| DC50 | 15 to 49m3/min | 40 to 150Kpa | DC30 | 9 to 29m3/min | 40 to 150Kpa |
| DC20 | 6 to 18m3/min | 40 to 150Kpa |
Blower Application
| Water Treatment | Aquaculture | Powder and granules transportation |
| Be used in water treatment plant for water purification and sediment mixing | Be used in a variety of fish pond for oxygen supply and mixing, and also for aquariums and live fish tank | Powder or granules (such as plastic materials, etc.) can be transported by pressure or vacuum |
| Incinerator | Ballast pump | Sandblast |
| Air combustion and exhaust emissions | Used for chemical liquid unloading and other ballast pumps | Used as air source for blast jet |
| Booster | Compost fermentation | Cereals Transportation |
| Used for high-pressure exhaust to make the gas into tiny molecules | High-pressure air take into the livestock manure tank to increase contact area of livestock manure and air , also apply to sewage treatment | Cereals such as wheat are transported from the rotary pilot valve with air |
| Pipe clearing | Sauna | Plating Bath |
| Used to remove dirt and iron dust during pipeline replacement or overhaul | Used for the sauna to provide air bubbles, mainly used for hospitals, hotels and etc. | Use air to stir the electrolyte to keep the electrolyte circulation, and disperse the attached blister to make plating quickly, spread evenly |
| Produce line drying | Car wash dry | Smoke exhaust |
| Quickly remove the water or oil on the cleaned items | Dry the car after washing | Exhaust smoke quickly to reduce pollution |
| Stripping from mold | Air cushion of Cut off machine | Dry air knife |
| Easy to remove the finished product after stamping | Increase buoyancy, easy to move | Use the blower to blow off the tiny dust and water droplets on the circuit board |
| Feed paper/cloth | Washing machine blow dry | Gas /heavy fuel injection |
| Collect plastic, cloth, paper and other scrap generated after trimming | Dried bottles after washing, suitable for food industry | Provide high pressure (2000 mmAq) and sufficient air volume |
Processing Workshop
FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
3. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
4. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
5.What are your terms of payment?
1. TT 40% AS THE ADVANCE PAYMENT AND TT 60% AFTER INSPECTION BEFORE SHIPPING.
2. 100% IRREVOCABLE L/C AT STGHT.
