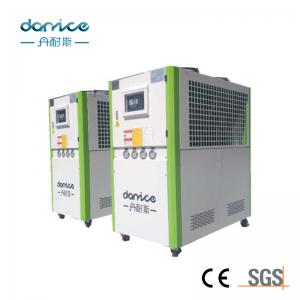

DNC-15AD air cooled chiller with scroll compressor
Specifications: Model | DNC-15AD | |||
Nominal cooling capacity | Kcal/h 50Hz/60Hz | 38270/45924 | ||
Kw 50Hz/60Hz | 44.5/53.4 | |||
Max power consumption | Kw | 17.45 | ||
Full load | AMP | 42.4 | ||
Power source | 3pH - 380V/415V - 50Hz /60NZ 3pH -200V/220V - 50Hz /60NZ | |||
Refrigerant | Type | R22/R407c/134A/404A/410A | ||
Control | Capillary/external balance of thermal expansion valve | |||
Compressor | Type | Hermetic scroll/Piston | ||
Power | Kw | 7×2 | ||
Condenser | Type | Efficient aluminum finned copper sleeve+low noise external rotor fan | ||
Air volume | M3/h | 15000 | ||
Fan motor | Kw | 0.6×2 | ||
Evaporator | Type | Tank coil/Dry shell and tube /Stainless steel plate evaporate | ||
Tank volume | L | 270 | ||
Coolant flow | M3/h | 7.65 | ||
Inlet and outlet connection(BSP) | Inch | 2 | ||
Pump | Power | Kw | 2.2 | |
Max flow rate | M3/h | 25.2 | ||
Max head | M | 28 | ||
Safety devices | Compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection, traffic protection, phase sequence/phase loss protection, low level protection, frost protection | |||
Dimension | mm | 1860*850*1900 | ||
Weight | Kg | 580 | ||
Notes: 1. Cooling capacity is based on: Chiller water inlet and outlet water temperature of 12ºC/7ºC, the cooling water inlet and outlet water temperature of 30ºC/35ºC
2. Scope of work: Chilled water temperature range: 5ºCTO35ºC; Chiller water out of the water temperature: 3ºCTO8ºC
The cooling temperature is not higher than 35ºC environment
The above can be customized according to customer requirements to produce
Specification dimension above are subject to change without notice
Our Services:
ØWith decades years professional experience in refrigeration industry;
ØOEM/ODM services available, new design updates regularly;
ØWe offer all of products with 12 months warranty;
ØPrompt reply, fast delivery, professional after-sales service.
FAQ:
1. How to choose a proper Chiller?
Tip1. The cooling capacity.
Tip2. The inlet and outlet water temperature, and the environment temperature.
Tip3. The power.
Tip4. The rifrigeration you need.
Tip5. Other special requirments.
2. If the cooling capacity of Chiller bigger is better?
No.
The use of cooling capacity too large, will not only result in the waste of resources, but also the machine itself will produce more noise, therefore we must choose a appropriate chiller.
