Features Of Belt Driven Screw Air Compressor
1 . Air end with high-efficiency
2. Double Screw with low noise, Super Silenced Enclosure

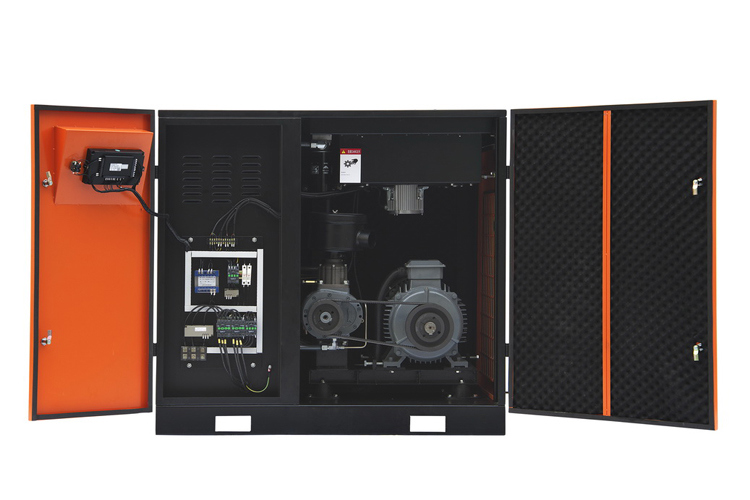

3. Elegant compact design. Fully open access door to inner parts for easy service.
4. 100% Continuous duty operation. Load/No Load operation
5. High quality CE Certificate industrial electric motors. ISO,CE,UL Certificate
6. Easy to use and read LCD control panel
7. High temperature, high pressure and anti-rotation shutdown
8. Energy efficient operation
9. 5 micron, water-resistant air filtration material
10. 1year full machine warranty,3years air end warranty.
11. Supply the machine with different working voltage according to customer's request,
such as: 380Volt,3phase,50hz
420Volt,3phase,50hz
380Volt,3phase,60hz
220Volt,3phase and 60hz, etc.
| AIRHORSE SCREW AIR COMPRESSOR (BELT DRIVEN) | |||||||||||
| Model | AHB-7A | AHB-10A | AHB-15A | AHB-20A | AHB-25A | AHB-30A | AHB-40A | AHB-50A | AHB-60A | AHB-75A | AHB-100A |
| Free air deliver/ Discharge pressure (m3/min/Mpa) | 0.85/0.7 0.75/0.8 | 1.2/0.7 1.1/0.8 0.9/1.0 0.7/1.2 | 1.6/0.7 1.5/0.8 1.3/1.0 1.1/1.2 | 2.5/0.7 2.3/0.8 2.1/1.0 1.9/1.2 | 3.2/0.7 2.9/0.8 2.6/1.0 2.2/1.2 | 3.8/0.7 3.6/0.8 3.2/1.0 2.8/1.2 | 5.2/0.7 5.0/0.8 4.5/1.0 3.8/1.2 | 6.8/0.7 6.2/0.8 5.6/1.0 4.9/1.2 | 7.3/0.7 7.0/0.8 6.0/1.0 5.6/1.2 | 10.0/0.7 9.1/0.8 8.5/1.0 7.6/1.2 | 13.5/0.7 12.6/0.8 11.2/1.0 10.0/1.2 |
| Free air deliver/ Discharge pressure (CFM/PSI) | 30/102 27/116 | 42/102 39116 32/145 25/174 | 57/102 53/116 46/145 39/174 | 88/102 81/116 74/145 67/174 | 113/102 102/116 92/145 78/174 | 134/102 127/116 113/145 99/174 | 184/102 177/116 159/145 134/174 | 240/102 219/116 198/145 173/174 | 258/102 247/116 212/145 198/174 | 353/102 322/116 300/145 269/174 | 477/102 445/116 396/145 353/174 |
| No.of compression stage | single stage | ||||||||||
| Ambient temperature | -5--+45°c | ||||||||||
| Cooling model | Air --Cooling | ||||||||||
| Discharge temperature (°c) | Ambient temperature+15°c | ||||||||||
| Lubricant(L) | 16 | 18 | 30 | 65 | |||||||
| Noise level(Db) | 62±2 | 64±2 | 62±2 | 68±2 | 72±2 | ||||||
| Drive method | Multivee belt | ||||||||||
| Electricity (V/ph/Hz) | 380/3/50 | ||||||||||
| Power (KW/HP) | 5.5/7 | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 | 75/100 |
| Starting method | Y-ΔStarter | ||||||||||
| Dimension: length/ width/ height(mm) | 800* 720* 950 | 860* 740* 960 | 1100* 850* 1160 | 1400* 950* 1300 | 1500* 1000* 1420 | 1730* 1170* 1700 | 1820* 1250* 1760 | ||||
| Weight(kg) | 128 | 240 | 400 | 420 | 600 | 620 | 680 | 980 | 1050 | 1600 | 1800 |
| Air outlet pipe diameter (inch/mm) | 3/4" | 1" | 1 1/2" | 2" |
Product display

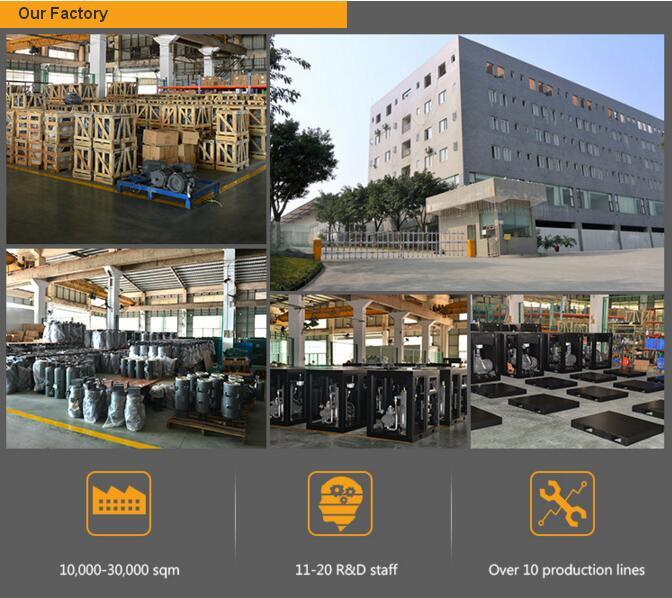

Guangzhou AirHorse Compressor Co., Ltd.
• Professional manufacturer of air compressor system equipment
• Main products include Screw Air Compressor & Piston Air Compressor
• Cutting-edge technology & leading techniques: original German air end with SKF bearing, Siemens/ABB electricity system and spare parts of other world-famous brands. To ensure reliability, high performance, low noise and long life span

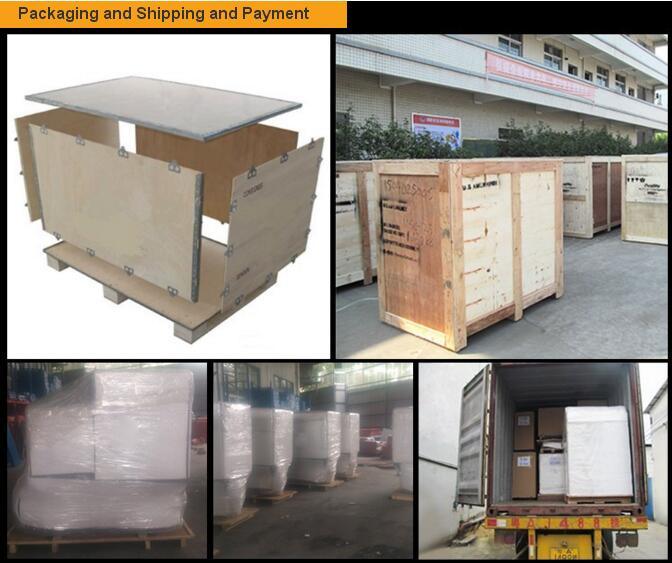

Packaging and Shipping
Our Service
After-sale Service
• Any questions or requests before, during or after sales, we would like to help you any time and will find you the best solution in 24 hours.
• Warranty: One year for the whole machine Genuine spare parts will be provided with best price.
• Over board engineer service is available.
Special Customized Service
1) Full OEM
• Quantity: at least 5 pcs
• In this plan, we will do all the changes (Color, name plate and logo) as your need, and will not charge extra fee.
2) Half OEM
• Quantity: no limit
• Under this program, we can make the necessary alteration (name plate and logo) but we will charge some extra fee for the name plate, as the name plate factory has the MOQ.
3) Logo OEM
• Quantity: no limit
• Only the logo will be changed to yours, and no extra fee will be charged.
Overseas Engineer Service
• We are available to send our engineer for aboard service. Only need you to arrange the accommodation, transportation and translator. Extra cost for each will be discussed based on local price level.
Q1: Are you factory or trade company?
A1: We are factory.
Q2: What the exactly address of your factory?
A2: Our company is located in AirHorse Industrial Park, Zengcheng District, Guangzhou, Guangdong, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about product package?
A5: We pack our products strictly with standard seaworthy case.
Q6: What about the voltage of products?
Can they be customized? A6: Yes, of course. The voltage can be customized according to your equirement.
Q7: Which payment term can you accept?
A7: 40% T/T in advanced, 60% T/T against the B/L copy.
Q8: How long will you take to arrange production?
A8: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q9: Can you accept OEM orders?
A9: Yes, with professional design team, OEM orders are highly welcome.
Q10: Which trade term can you accept?
A10: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
