Advantages of our fiber optic cable:
1. Good supply capacity(100KM-200KM each day)
2. Fast delivery time
3. Complied to ISO9001 quality system
4. 100% testing before shipment
5. 2-12cores for option
6. self support type or not self support type for option
7. indoor and outdoor for option
8. armored and non-armored Cable for option

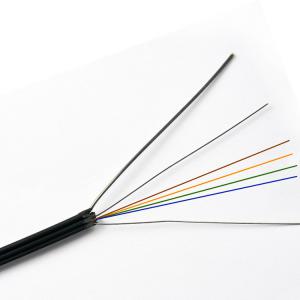

Characteristic:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission
property.
Two parallel strength members ensure good performance of crush resistance to protect the fiber.
Simple structure,light weight and practicability
Novel flute design,easily strip and splice,simplify the installation and maintenance
Delivery length:
2KM/reel, 1KM/reel,0.5KM/reel,other length available on request
Cable Sheath marking:
White color printing at each meter distance of cable sheath
The standard printing contents are as below, alternative contents available on request.
? Meter mark
? Model name of cable
? Fiber count
? Manufacturer name (alternative name and/or brand available on request)
? Manufacture date

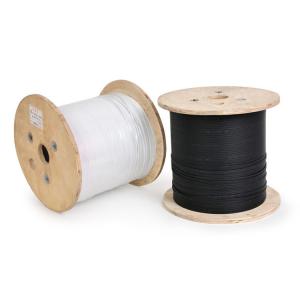

Labelling of wooden reel
The standard label contents are as below (alternative labelling available on request).
? Model name of cable
? Fiber count
? Length of cable packed on reel
? Gross weight KGS
? Total no. of reel of the batch of cargoes
? Manufacture month and year
Specification of the indoor cable:
| Cable type | 3.0 | 2.0 | 1.8 | 1.6 |
| Cable dimension(mm) | 2.85±0.1/5.8±0.2 | 1.95±0.1/4.0±0.2 | 1.80±0.1/3.7±0.2 | 1.65±0.1/3.6±0.2 |
| Cable weight(kg/km) | 14 | 8 | 7.8 | 7.6 |
| TBF diameter(µm) | 900±50 | 600±50 |
| Tensile strength(N) | Long term | 100 |
| Short term | 200 | |
| Crush resistance(N/100mm) | Long term | 100 |
| Short term | 500 | |
| Bending Radius(CM) | Dynamic | 20×H(H:Cable axis) |
| Static | 10×H(H:Cable axis) |
| Fiber type(core/cladding dimension) | 9/125, 50/125, 62.5/125 |
| SM 9/125 | OM2 50/125 | OM1 62.5/125 | |
| 1310/1550(nm) | 850/1300(nm) | 850/1300(nm) | |
| Attenuation(dB/km) | ≤0.4/0.3 | ≤3.5/1.5 | ≤3.5/1.5 |
| Minimum Bandwidth(MHZkm) | ------ | ≥400/400 | ≥160/500 |
| Storage Temperature | -20ºC+60ºC |
| Working temperature | -20ºC+60ºC |
Indoor/Outdoor cable inside 12fiber or 24 fiber mini distribution armored cable
| 12 fiber | 24 fiber | |||
| Out diameter | 6.0MM | 6.0MM | ||
| Jacket Color | Black or customized | Black or customized | ||
| Weight /KG | 40kg/km | 40kg/km | ||
| Temperature range | -40ºC~+80ºC | -40ºC~+80ºC | ||
| Tensile Strength | During installation | 800N | During installation | 800N |
| In service | 600N | In service | 600N | |
| Compressive strength | ≥100KGf/100MM | ≥100KGf/100MM | ||
| Attenuation | 1310nm | 0.35dB/km | 850nm | 3.0dB/km |
| 1550nm | 0.25dB/km | 1300nm | 1.0dB/km | |
| Mini bend radius | ≥30D | ≥30D | ||
| Jacket Material | PVC, LSZH ,OFNP, OFNR, | PVC, LSZH ,OFNP, OFNR | ||
| Metal tube size | 3.8mm to 3.9mm for the out diameter, 2.8 to 2.9mm for the inside diameter. | |||
| Fiber Type | SM9/125, G657A1, G657A2, OM1. OM2,OM3, OM4 | |||
| Fiber Brand | YOFC, OFS, CORNING |
Application
1. widely used for FTTA/FTTH/FTTB installation
2. Data cable in distribution networks
Key Features:
1. Rodent-protected, steel armoured
2.For vertical applications
3.For direct connector assembly
4.Halogen free and self-extinguishing
5.Low fire load for high safety requirements
6.Longitudinal and transversal watertight cable

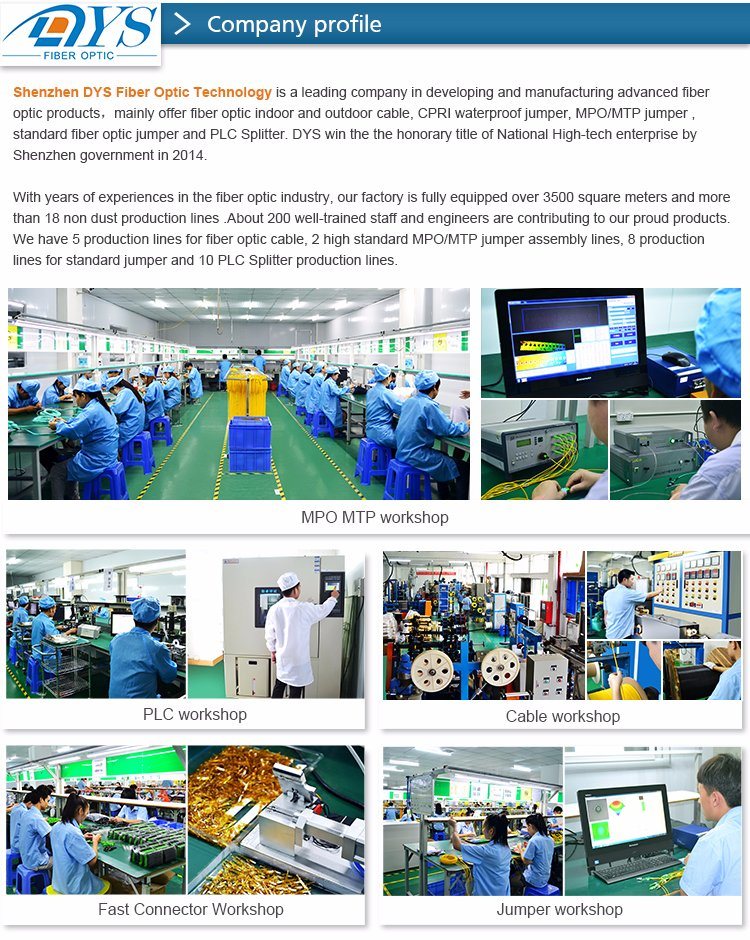

Company Competitive Advantage
DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.

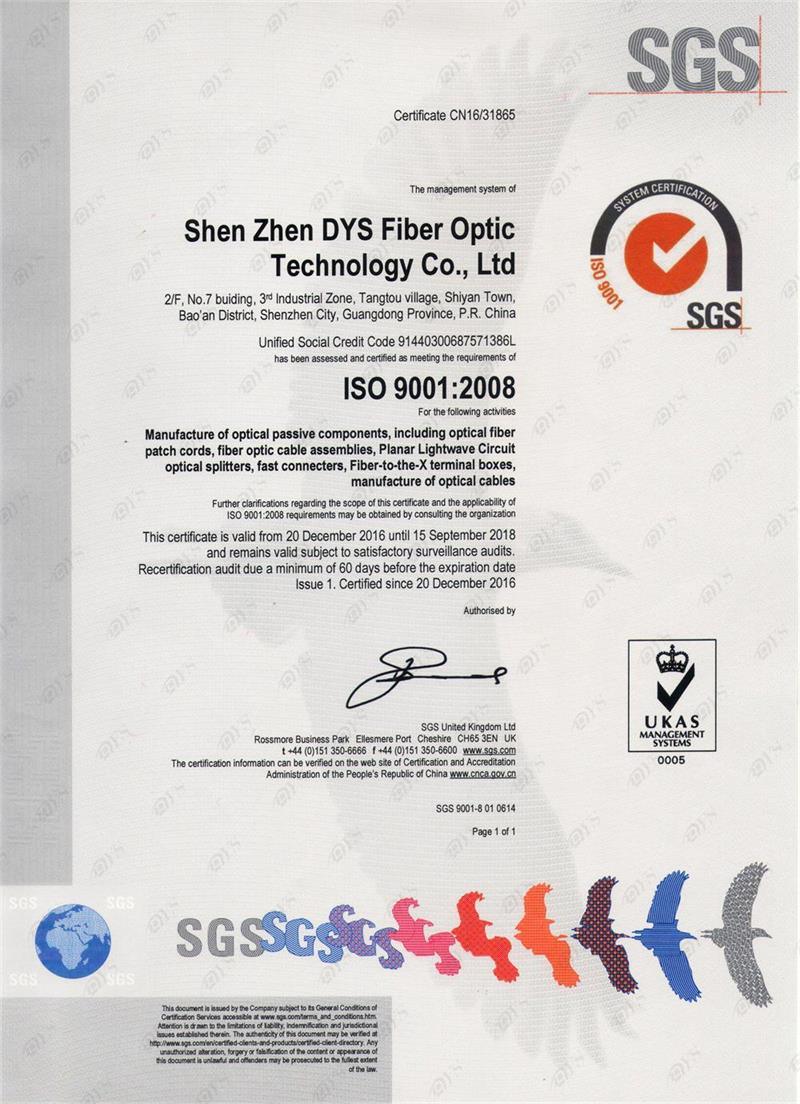

Certificate of qualification

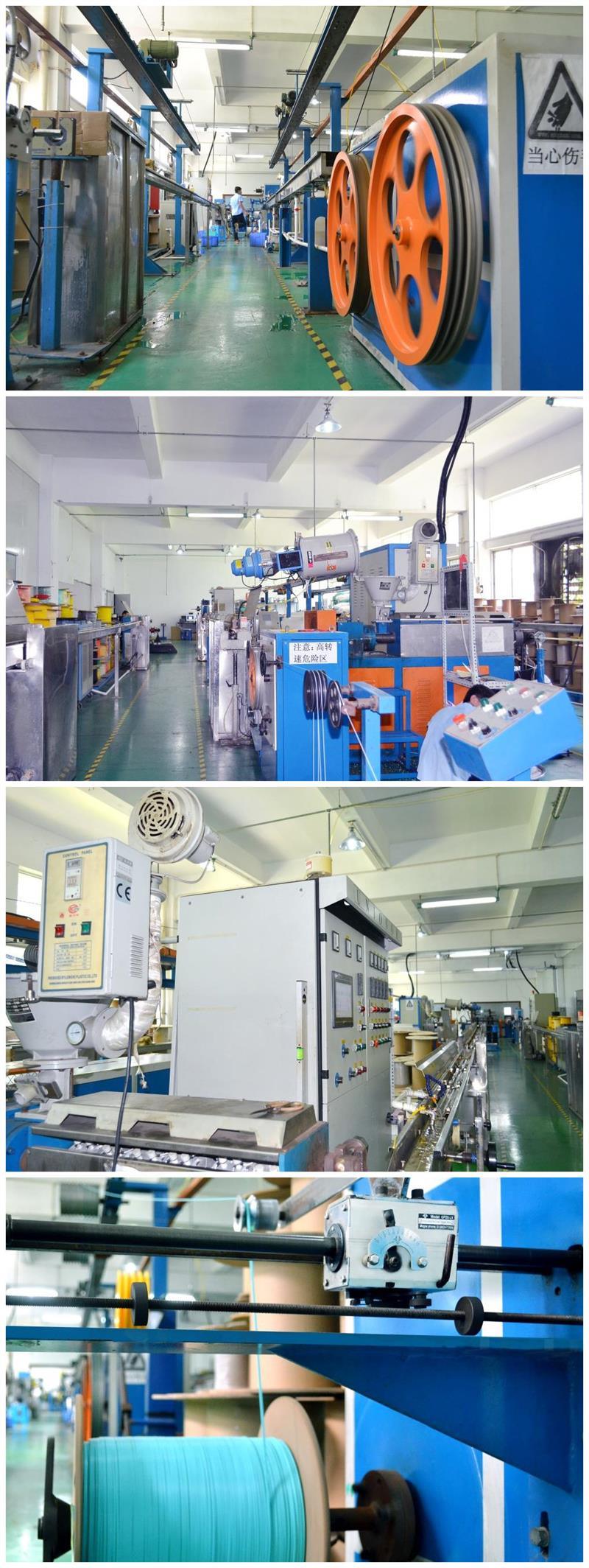

Production line:
Trade terms: EXW,FOB, CFR,CIF,FCA and so on
Payment terms: T/T, L/C, Western Union, Paypal(for sample order)
Sample policy:
Samples will be offered to you free of charge for some items.
