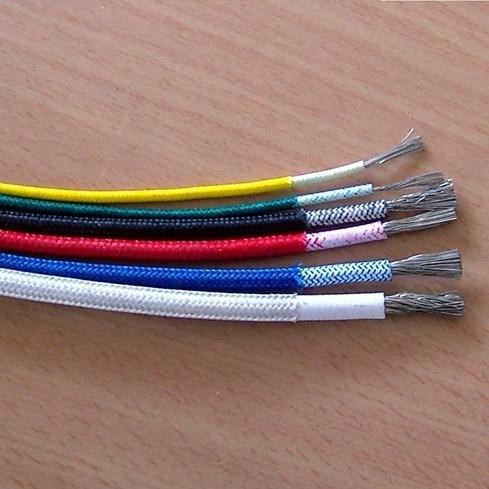

UL AWM 3122 high temperature resistant wire
Nominal voltage: 300V
Temperature range: -60~+200º C
The standard for reference: UL758, UL1581, UL62
Conductor: 26-12AWG tinned copper
Sheath: Fiber glass
Insulation: Silicone rubber
Test by UL VW-1 and CSAFT-1
USE: Internal wire of appliance or electronic equipment of cooker where exposed to high temperature
Certificate NO: UL E216252, CSA 229260
| spec AWG | spec AWG No/mm | Conductor diameteer mm | Insulation thickness mm | Insuation diameter mm | Braid thickness mm | Nominal diameter mm | Max diameteer mm |
| 10 | 35/0.45 | 3.12 | 0.70 | 4.52 | 0.15 | 4.82 | 5.12 |
| 12 | 19/0.50 | 2.5 | 0.60 | 3.7 | 0.15 | 4.00 | 4.30 |
| 14 | 41/0.25 | 1.96 | 0.50 | 2.96 | 0.15 | 3.26 | 3.46 |
| 16 | 7/0.50 | 1.5 | 0.39 | 2.28 | 0.15 | 2.58 | 2.78 |
| 18 | 7/0.40 | 1.2 | 0.39 | 1.98 | 0.15 | 2.28 | 2.48 |
| 20 | 7/0.32 | 0.9 | 0.39 | 1.68 | 0.15 | 1.98 | 2.18 |
| 22 | 7/0.254 | 1.762 | 0.39 | 1.54 | 0.15 | 1.84 | 2.04 |
| 24 | 7/0.20 | 0.60 | 0.39 | 1.38 | 0.15 | 1.68 | 1.88 |
| 26 | 7/0.16 | 0.48 | 0.39 | 1.26 | 0.15 | 1.56 | 1.76 |
