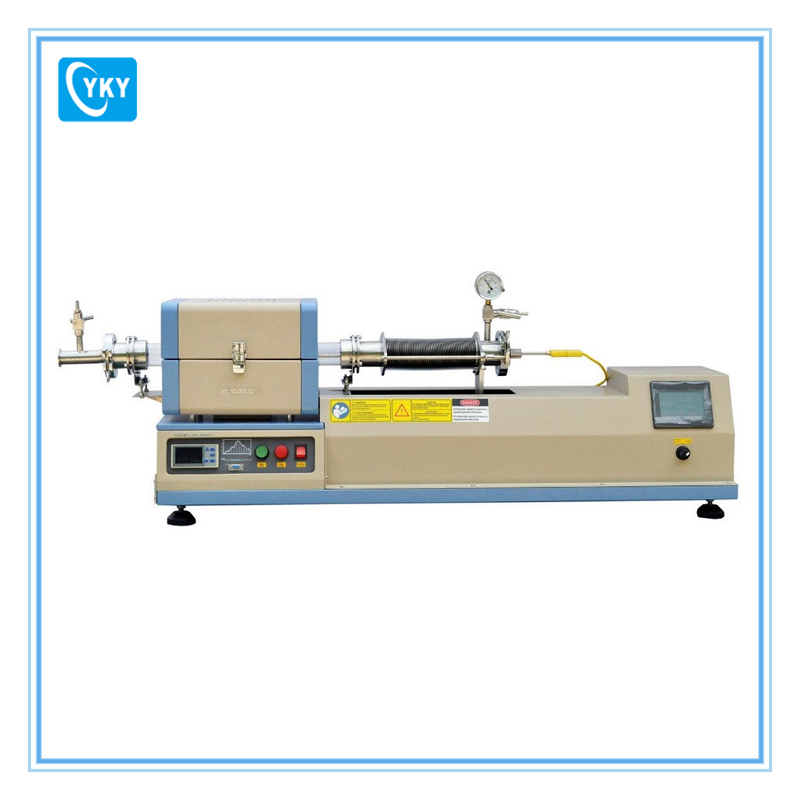

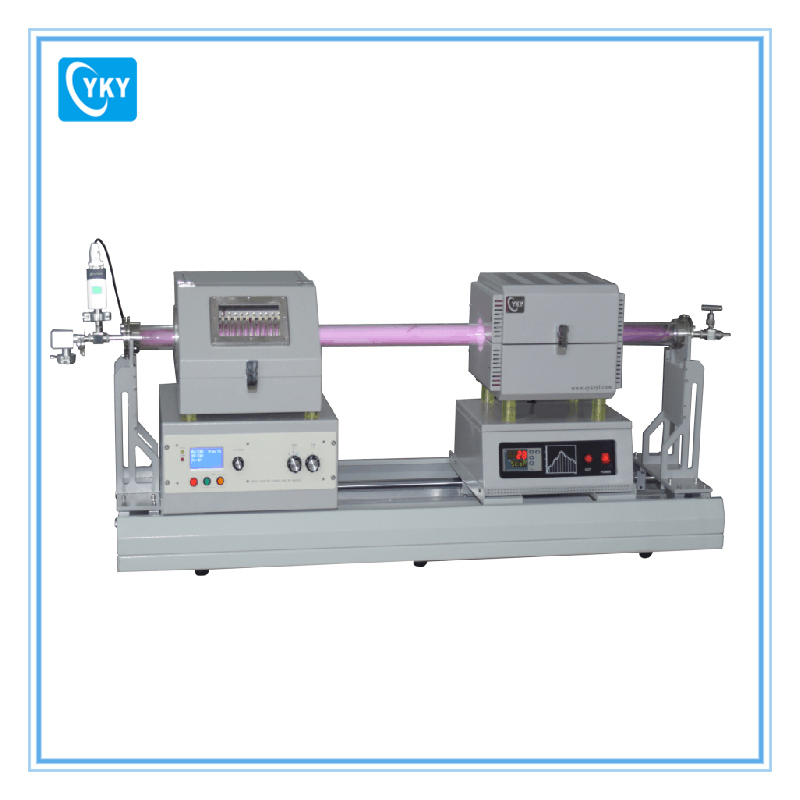

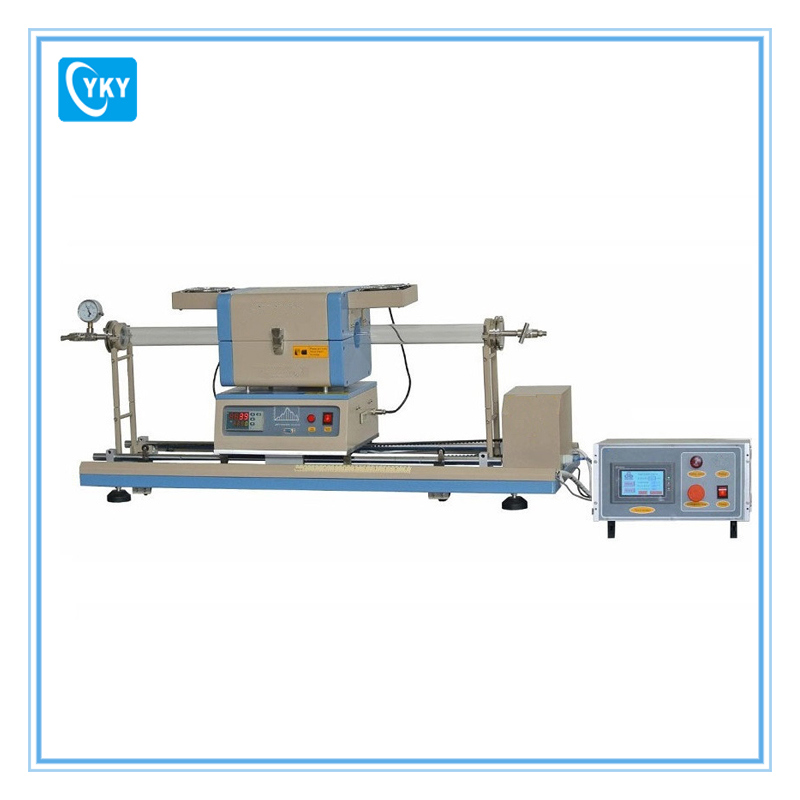

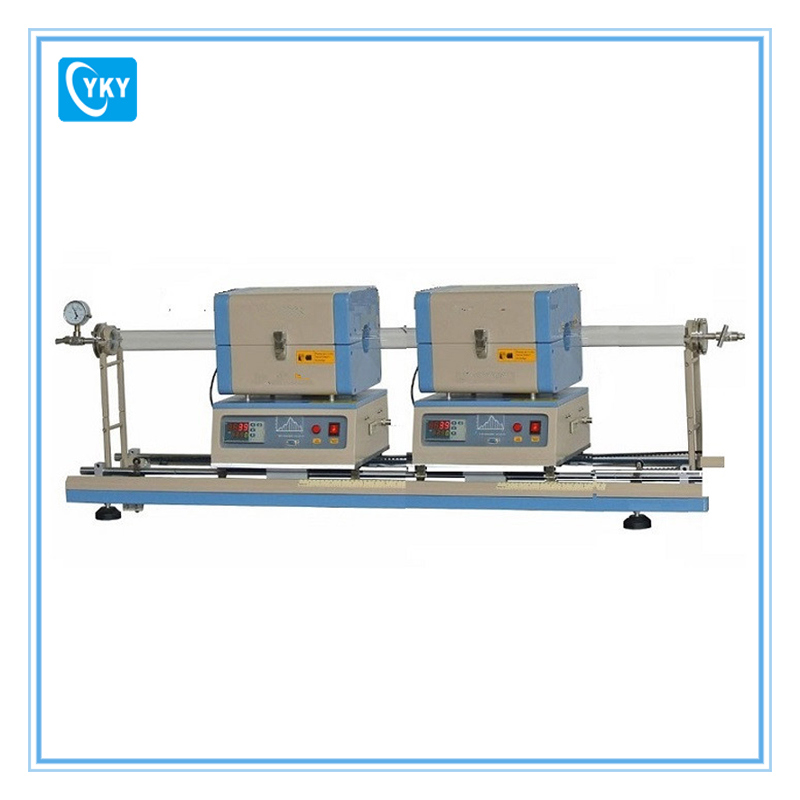

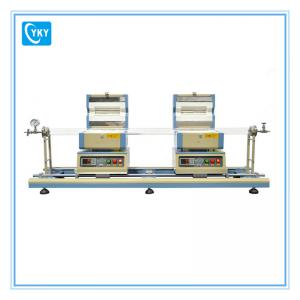

Horizontal Directed Crystallization (HDC) Tube Furnace, 1100°C Max. - OTF-1200X-50-DSL
Introduction
OTF-1200X-50-DSL is a horizontal sliding 2" tube furnace with variable speed from 1 mm/sec - 100 mm/sec
and programmable repeating time. This furnace is designed for directional growth of longer single wall nano
carbon tube (SWCT) by CVD method. It can also be used for horizontally growing low melting point metallic single
crystal under vacuum and inert gas as Bagdasarov or HDC method). The complete system includes 30 segments
precision temperature controller, 2"OD x 36"L Quartz tube and vacuum flanges with 1100°C max. working temperature.
Specification
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and customized lab equipment.Welcome you come to visit us.
Introduction
OTF-1200X-50-DSL is a horizontal sliding 2" tube furnace with variable speed from 1 mm/sec - 100 mm/sec
and programmable repeating time. This furnace is designed for directional growth of longer single wall nano
carbon tube (SWCT) by CVD method. It can also be used for horizontally growing low melting point metallic single
crystal under vacuum and inert gas as Bagdasarov or HDC method). The complete system includes 30 segments
precision temperature controller, 2"OD x 36"L Quartz tube and vacuum flanges with 1100°C max. working temperature.
Specification
| Furnace Structure | Double layer steel structure with dual air cooling fans One precision bear linear sliding system installed under table to drive tube furnace back forward at variable speed 6" color touch screen speed control can program moving direction, moving speed and repeating travel time Vacuum flanges and a digital vacuum gauge are installed for immediate use. |
| Power | 1.5 kW |
| Voltage | AC 110V Single Phase, 50/60 Hz |
| Max. Temperature | 1100°C (<1 hour) with flowing gas |
| Continuous Temperature | 1000°C |
| Heating Zone Length | Heating Zone: 8" (200mm), single zone. Constant Temperature Zone: 2.3" (60mm) (+/-1°C) @ 1000 °C Temperature Gradient: Can be created depended on temp. profile and adjust by thermal block and cooling fan |
| Speed Control | Precision DC motor drives furnace moving 6" color touch screen controller will: The lower speed controlled range is available upon request at extra cost. |
Processing Tube | High purity fused quartz tube Size: OD: 2" x ID: 1.8." x Length: 39" (50mm OD x 46mm ID x 1000mm L) Two foam ceramic blocks are included which must be placed inside tube to avoid heat radiation damaging O-rings |
| Temperature Controller & Sliding Control | 30 programmable segments for precise control of heating rate, cooling rate and dwell time Temperature Accuracy: +/ - 1°C Built-in over temperature alarm and protection allows for operation without attendant Two K type thermal couples are included. One is built in furnace to control furnace temperature, and another is inserted into tube to monitor sample's real temperature profile |
| Vacuum Flanges | Vacuum sealed flange with SS needle valves and vacuum gauge are included for immediate use |
| Vacuum Level | Limited by pump 10E-5 torr can be reached by molecular pump 10E-2 torr by a mechanical pump. |
| Sliding Rails / Table | Double sliding rail made by Cr plated steel Sliding length: 1200 mm |
| Dimensions | 315 x 300 x 380mm (tube furnace alone) 1200 x 400 x 530mm (Furnace + sliding system) 360 x 180 x 300mm (speed control box) |
| Net Weight | 100 kg |
| Shipping Package Size | 70" x 45" x 45" |
| Shipping Weight | 350 lbs |
| Compliance | CE Certified |
