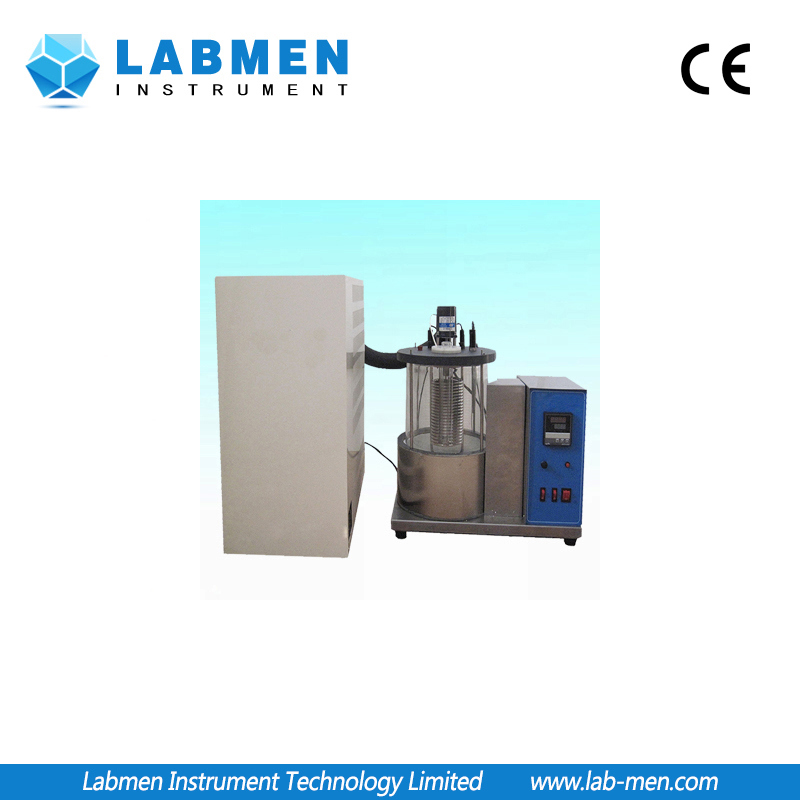

FPTL216 Apparatus for determination of freezing point for Freezing Point of Aviation Fuels and cloud & crystallization point for light petroleum products, conforms to the ASTM D2386 Standard Test Method for Freezing Point of Aviation Fuels. The apparatus covers the determination of the temperature below which solid hydrocarbon crystals may form in aviation turbine fuels and aviation gasoline. And also can detect the cloud & crystallization point of the light petroleum products.
Features
1.The apparatus adopts LCD to show temperature value, high precision temperature control, easy to adjust.
2.The apparatus adopts Dewar cold bath, which features transparent function and good thermal insulation property.
3.H lighting device facilitate observation of the sample in cold bath.
4.The apparatus adopts advanced compressor as refrigeration device which got big cooling capacity and speed.
5. Using magnetic stirrer to ensure a constant agitation condition.
6. Reasonable structure with beautiful shape and easy operation.
1.2 Specification
Technical parameters
Rated voltage | AC220V±10% 50Hz |
Power | 1200W |
Heating power | 800W |
Cryostat volume | 8L |
Temperature control method | LCD |
Temperature control range | Room temperature~-68ºC |
Temperature control precision | ±0.1ºC |
Sensor | Pt100(platinum resistor) |
