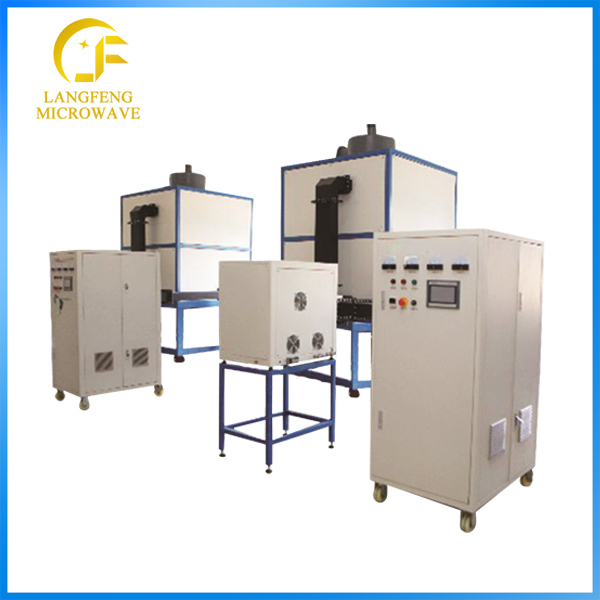

Microwave sewage treatment equipment - LFWG20L
The equipment with wastewater treatment system can be used for high concentration chemical wastewater in waste water treatment plants and sewage water treatment plant, wastewater, municipal wastewater, municipal sewage and industrial waste water. Microwave wastewater treatment technology is the use of microwave thermal effects and non-thermal effects of absorbing select "sensitizer" to microwave energy transfer contaminants from water chemical reaction induced by physical and chemical effects of pollutants in water degradation, transformation, accelerate the body the solid, liquid separation. In order to achieve the purpose of purification of sewage, water treatment is a new revolution in the field, with water microwave technology sewage treatment, no secondary pollution, can be completely reused in industrial water treatment process.
More microwave lab experiments videos, please contact us .
Device group technical parameters:
- Microwave equipment consists of: microwave generator, microwave heating chamber, sewage pipes, control and detection systems, racks and cooling systems.
- Equipment working environment:
Apparent power:27KVA
Ambient temperature: 0 ~ 35 ºC
Relative humidity: ≤85%
No flammable, explosive gases, corrosive gases, less dust
- Microwave system configuration and parameters:
Microwave power: 20 kW
Magnetron: CK - 611-1 1PCS.
Microwave power: split type microwave source.
Waveguide combination: BJ - 9,1set
Cooling mode: magnetron circulating water cooling (soft water).
Cooling water flow rate: magnetron need 30 l/min.
Note: the equipment needed for cooling water circulating device provided by the customer
The whole machine size: 1700 mm * 2300 mm * 3500 mm (length x width x height)
Resonant cavity flow pipe coated 5 mm polystyrene,imported diameter DN125,outlet diameter DN150
Water Treatment:90m³/h
- Control and detection systems
Water temperature protection system: Avoid high water temperature affect the life and efficiency of the magnetron
Microwave source light device: with real-time monitoring of the work of the microwave source and over-temperature condition.
Microwave power regulation: 0-20 kw stepless adjustable
PLC programmable automatic control, touch screen man-machine interface operation, communication with the upper machine.
Application:
The equipment can be used for high concentration chemical waste water, waste water, municipal waste water, municipal sewage and variety industrial waste water.Microwave waste water treatment technology is the use of microwave thermal effects and non-thermal effects of absorbing select "sensitizer" to microwave energy transfer contaminants from water chemical reaction induced by physical and chemical effects of pollutants in water degradation, transformation, accelerate the body the solid, liquid separation.In order to achieve the purpose of purification of sewage, water treatment is a new revolution in the field, with water microwave technology sewage treatment, no secondary pollution, can be completely reused.
Characteristics:
- Microwave energy waste water treatment technology enables waste water treatment project in size (small footprint, is the traditional 1 / 10-1 / 30), has a short process, small footprint, diversified, short construction period, can be saved current waste water treatment works long distance buried large quantities Sewer, blocking the source of pollution; eliminate pollution due to human life and production activities on the rivers and lakes caused fundamentally.
- Sewage treatment investment units of low intensity, low overall energy consumption, low operating costs; to municipal waste water, for example, the cost of waste water treatment sewage treatment microwave is 0.8 yuan / ton, the cost of conventional water treatment sewage treatment fee is 1.6 RMB / ton, and energy saving is double.
- Municipal sewage and various industrial waste water treatment, not influenced by environmental temperature and raw sewage pollutant concentration.
- Effluent effect is good, the process can be free to control the start and stop. Microwave kill cyanobacteria special effect, can completely remove pollutants in waste water to kill pathogens.
- Realize the sustainable use of water and waste water reuse, the polluted rivers and lakes water into the safety of the industrial and agricultural green water.
- Microwave energy treatment of high concentration waste water benzene, phenol, to meet emission standards.
- It can be high concentrations of poor biodegradability of waste water deep treatment.
- Quick flocculation and sedimentation speed, improved breaking speed and effectiveness.
- Miniaturization microwave sewage treatment system.
- The device can be used with a variety of conventional methods such as chemical methods, membrane technology combined to achieve a better practical requirements, reduce pollution and improve the environment, water reuse, help to achieve circular economy.
- Warm reminder: If this type of device does not meet your requirements, we can be customized according to the requirements of development and design with the parameters you provided, to provide you with a detailed microwave treatment system solutions.
1.Microwave oven warranty for 3 years from the date of the acceptance of formal, microwave magnetron: 1 year, except consumable goods (sagger,heat insulation barrels), life-long maintenance.
2.During the warranty period if product appear failure, we should be answer within 24 hours after the buyer inform related issues, providing services such as consulting, repair and replacement parts for free. And record on the failure related issues. If cannot be ruled out the fault within 72 hours, will provide free technical personnel door-to-door service, the expenses shall be borne by us arising out of it.
3.During the warranty period, all kinds of equipment failure shall promptly provide free maintenance consulting services to non-human damage of all kinds of parts, supplier shall promptly replaced free of charge.
4.Equipment demand side appears difficult to resolve the fault after the warranty period, our company to ensure the long-term provision of technical services, and provide related accessories.
5.Once the contract is concluded, that is, into an endless after-sales service.Before the equipment acceptance, we will provide related equipment technical data (product specification, certification, electrical specification, infrared thermometer operation instruction, packing list, etc.), free on-site installation and debugging, technical training, until the buyer completely control.
6.After Microwave acceptance, our company will be based on customer needs to do research, professional solutions of microwave equipment related technical consulting, microwave technology development support etc.After the warranty expires, we still provide the technical support, product technology upgrade, spare parts supply, product regular tour service.Make sure that our products, in good condition for a long time.
