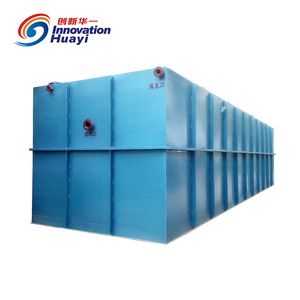

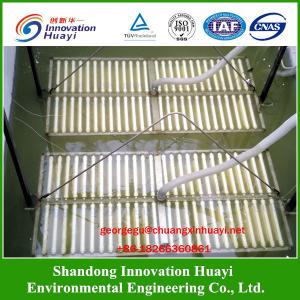

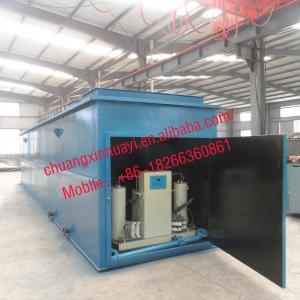

he membrane bioreactor is a perfect combination of a membrane filtration process with the biotechnology. The MBR system works effectively in blocking activated sludge and macromolecular organics that used to be done by a secondary sedimentation tank.
Advantages of Membrane Bioreactor
(1) The MBR treatment system has a great processing capacity for waste water and sludge, leading to reliable and clean treated water. Generally, the COD of domestic sewage is reduced to 50mg/l by the MBR plant, reaching the effluent standard and able to irrigate plants.
(2) Since the SRT (Sludge Retention Tine) is long enough for complete reaction in the MBR tank, the residue sludge amount is remarkably decreased, which in turn cuts sludge treatment cost.
(3) Secure and reliable operation is realized in this membrane bioreactor thanks to the application of a fully-automated electrical control system and malfunction alarm system.
(4) Coated with high-quality anti-corrosion material, the system is resistant to rust, acid, friction, alkali and corrosion for at least 12 years.
(5) The integrated design makes sure the membrane bioreactor system has few wearing parts and easy installation and operation.
(6) Mounted underground, the membrane bioreactor occupies zero floor space. The upper ground is saved for other uses, like green belts, etc.
Application of Membrane Bioreactor
The MBR system finds application in these following places
(1) Hotels, restaurants, hospitals, scenic area
(2) Communities, towns, schools, business parks
(3) Stations, airports, docks, shipbuilding plants, slaughterhouse
Technical Parameters of MBR System
According to the wastewater handling capacity, there are totally 9 models of MBR plants for customers to choose. The sludge retention time is designed to be 8 hours. Plus, customization service is offered upon request.
Company Information

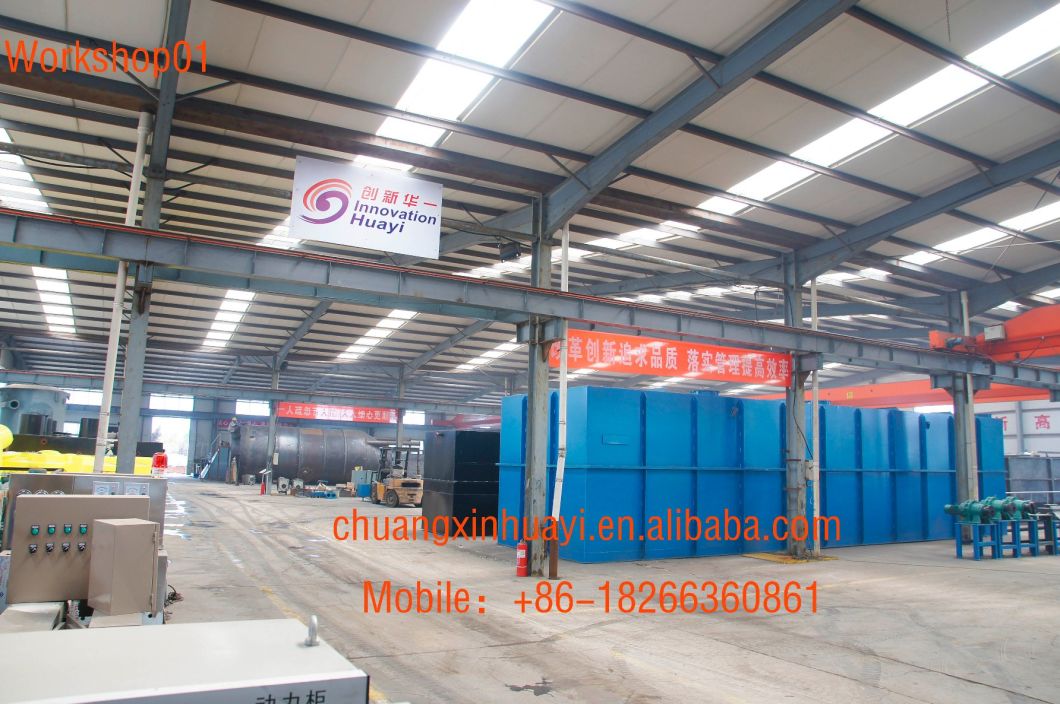

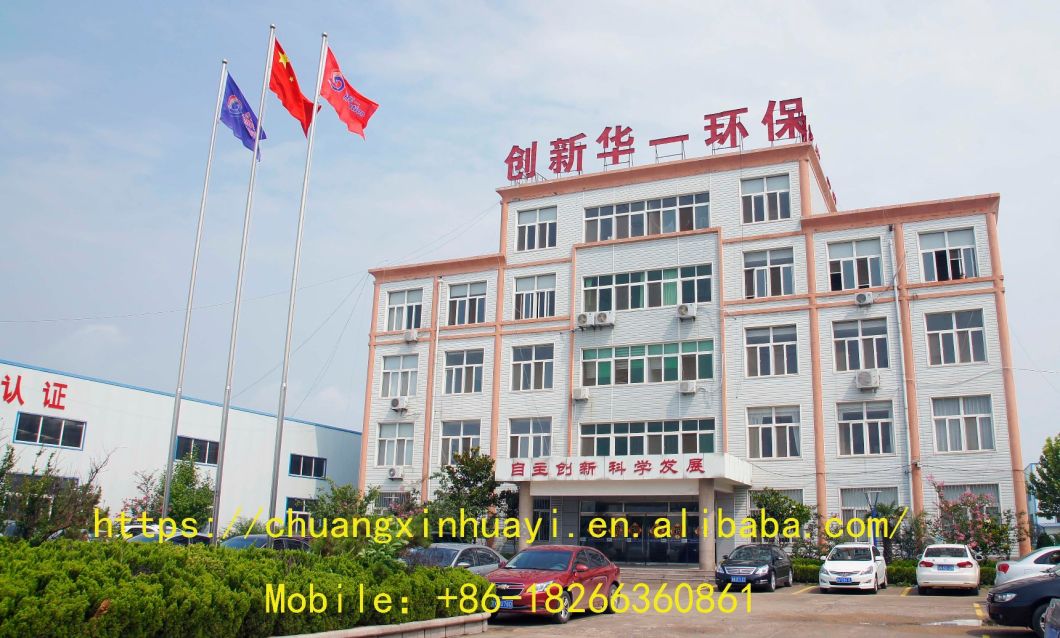

As being a pioneer and advocator of sustainable development, Shandong Innovation Huayi Environmental Engineering Co., Ltd specializes in the design and manufacture of various environmental protection machines. With advanced manufacturing facilities of over 60,000 square meters and a convenient location near Qingdao Port and Rizhao Port, we sell our high quality products all over the world fast and quickly. In addition to great condition ecofriendly machines, we are equipped with more than 20 patient and skilled customer service workers to provide comprehensive and promote solutions, from pre-sales to after-sales. Up to now, we have successfully passed ISO9001: 2008 Quality Management System Certification, German TÜV Certificate and have been titled as the leading enterprise in environmental protection industry in Shandong Province.
We hire a team of top notch R&D employees, including 5 senior engineers and over 30 technician workers that have a rich experience of machinery installation and adjustment. Such powerful technological support assures our products have a high level of decontamination and show zero threats to the environment.
So far, environmental protection machines by Huayi have been sold to over 29 provinces and exported to Asia, Africa and South America etc.
Advantages of Membrane Bioreactor
(1) The MBR treatment system has a great processing capacity for waste water and sludge, leading to reliable and clean treated water. Generally, the COD of domestic sewage is reduced to 50mg/l by the MBR plant, reaching the effluent standard and able to irrigate plants.
(2) Since the SRT (Sludge Retention Tine) is long enough for complete reaction in the MBR tank, the residue sludge amount is remarkably decreased, which in turn cuts sludge treatment cost.
(3) Secure and reliable operation is realized in this membrane bioreactor thanks to the application of a fully-automated electrical control system and malfunction alarm system.
(4) Coated with high-quality anti-corrosion material, the system is resistant to rust, acid, friction, alkali and corrosion for at least 12 years.
(5) The integrated design makes sure the membrane bioreactor system has few wearing parts and easy installation and operation.
(6) Mounted underground, the membrane bioreactor occupies zero floor space. The upper ground is saved for other uses, like green belts, etc.
Application of Membrane Bioreactor
The MBR system finds application in these following places
(1) Hotels, restaurants, hospitals, scenic area
(2) Communities, towns, schools, business parks
(3) Stations, airports, docks, shipbuilding plants, slaughterhouse
Technical Parameters of MBR System
According to the wastewater handling capacity, there are totally 9 models of MBR plants for customers to choose. The sludge retention time is designed to be 8 hours. Plus, customization service is offered upon request.
| Model | Handling capacity (m3) | Dimensions (m) | Flow rate of air blower (m3/min) | Weight (t) | Power of pump (W) |
| CXMBR0.5 | 0.5 | 3 ×1.5 ×2 | 0.2 | 1.5 | 1.1 |
| CXMBR1 | 1 | 4 ×1.5 ×2 | 0.4 | 1.7 | 1.1 |
| CXMBR2 | 2 | 4 ×2 ×2 | 0.8 | 2.5 | 1.1 |
| CXMBR3 | 3 | 6.5 ×2 ×2 | 1.3 | 3.5 | 1.1 |
| CXMBR5 | 5 | 10 ×2 ×2 | 2.1 | 4.5 | 2.2 |
| CXMBR8 | 8 | 13 ×2.5 ×2 | 3.3 | 7.5 | 2.2 |
| CXMBR10 | 10 | 13 ×2.5 ×2.5 | 4.2 | 8.4 | 3 |
| CXMBR12 | 12 | 15.5 ×2.5 ×2.5 | 5.0 | 12.6 | 4 |
| CXMBR15 | 15 | 16 ×2.5 ×3 | 6.3 | 14.8 | 4 |
Company Information
As being a pioneer and advocator of sustainable development, Shandong Innovation Huayi Environmental Engineering Co., Ltd specializes in the design and manufacture of various environmental protection machines. With advanced manufacturing facilities of over 60,000 square meters and a convenient location near Qingdao Port and Rizhao Port, we sell our high quality products all over the world fast and quickly. In addition to great condition ecofriendly machines, we are equipped with more than 20 patient and skilled customer service workers to provide comprehensive and promote solutions, from pre-sales to after-sales. Up to now, we have successfully passed ISO9001: 2008 Quality Management System Certification, German TÜV Certificate and have been titled as the leading enterprise in environmental protection industry in Shandong Province.
We hire a team of top notch R&D employees, including 5 senior engineers and over 30 technician workers that have a rich experience of machinery installation and adjustment. Such powerful technological support assures our products have a high level of decontamination and show zero threats to the environment.
So far, environmental protection machines by Huayi have been sold to over 29 provinces and exported to Asia, Africa and South America etc.
