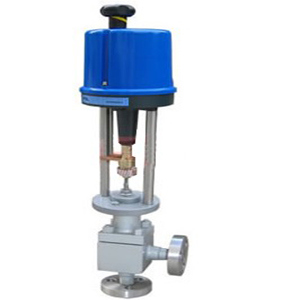

Electric High Pressure Angle Type Forged Control Valve (GZDLS)

PRIMARY PARAMETERS

Model NO.

GZDLS

Connection

Flanged, Butt Welded

Trademark

GOOLE, OEM

Transport Package

Plywood Case

Specification

CE, SGS

Origin

Wenzhou, Zhejiang, China

HS Code

8481804090

DETAIL DESCRIPTION

ZDLS Electric Actuated High Pressure Angle Type Single Seat Flow Control Valve

Brief Introduction
ZDLS Electric Actuated High Pressure Angle Type Single Seat Flow Control Valve adopt top-guided structure. It has following advantages: Precise valve body , S-Pattern Flow Port, Small Pressure Drop, Big Adjusting Range and High Precision of Flow Cv Value. The Dis-guiding area is big. It also has strong aseismic performance. The sealing performance is conformed to Standard GB/T4213-92.
Such control valve uses small, strong and high precision electric actuator with On-Off Function or with 4-20mA DC or 1-5V direct current signal to realize valve's proportional action, which is more suitable for the working condition required reliable and high sealing performance, High Temperature or Low temperature or High Pressure.
Such Angle Control Valve is mostly applied to control the flow capacity of High viscosity medium and the slurry or fluid with Particles, etc. PN220/PN320 Angle Type High Pressure Control Valve is a special valve mainly designed for the high pressure system in which Cavitation errossion occured easily.

Standard technical specification
Valve Body
Type:  Straight Through Single Seat Cast Steel Globe Valve
Size: DN20-300
Pressure: PN16~PN100, Class 150LB ~ Class 600LB
Connection: RF(Standard), Threaded, Welded
Flange Facing:  Raised Face
Face to Face dimension: GB12221-89
Material: WCB, 304,316
Bonnet Type: Gland
Packing:  V tupe PTFE,  Flexible Graphite
Gasket: Plain Type, PTFE, SS+Graphite

Valve Trim
Disc: Single Seat Plug Type
Sleeve: Metal Sealing(Equal Percentage, Linear)
       RPTFE (Equal Percentage, Linear)

Actuator
Type: Electric Actuator
Model: 381LSA/XA-08,  381LSA/XA-20,  381LSB/XB-30,  381LSB/XB-50, 381LSC-65, 381LSC-99
381LSC-160, 381LSC-260
Valve Action: Direct Action, Reaction (Force)
Controlling Action: Proportional Linear Controlling or ON-OFF Controlling.
Input Signal: 4~20mA DC or 1~5V DC
Power: AC220V, 50HZ
Output Signal: 4~20mA DC
Power Consumption: A Type-50VA, B Type--150VA, C Type-220VA
Protection Level: IP55
Wire Connection: Normal S Type--G1/2", Explosion-Proof X Type---G3/4"
Ambient Temperature: Normal---10 Deg C~ 60 Deg C, With Space Heater---35 Deg C~ 60Deg C, Explosion-Proof X Type--- -10Deg C ~40 Deg C
Ambient Humidity: Normal S Type--Below 95%, Explosion-Proof X type--45%-85%
Explosion-Proof: ExdIIBT4

Performance
Raded KV Value: Refer to Table 1
Flowing Features: Linear, Equal Percentage
Adjusting Range: 50:1
Leakage Rate: Metal Sealing should be below 0.01% ANSI B16.104-1976 Class IV
            Soft Sealing should be below 0.00001% ANSIB16.104-1976  Class VI
Allowable Deviation: 1%

Table 1: Kv Value & Action Time:

DN	Seat Dia	KV	Motor Model	Output Thrust	Rated Stroke	Action Time
mm	mm	Linear	Equal %	N	mm	s
20	20	6.9	6.3	381LSA-08/20	800/2000	16	3.8/7.6
25	25	11	10
32	32	17	16	381LSB-30/50	3000/5000	25	7.2/14.7
40	40	27	25
50	50	44	40
65	65	69	63	381LSB-50/SC-65	5000/6500	40	2.5/14.3
80	80	110	100
100	100	176	160
125	125	275	250	381LSC-99/160	10000/16000	60	30/60
150	150	440	400
200	200	690	630

Table 2: External Dimension & Weight:

DN	L	A	B	D	R	H1	H6	H2	H3	H4	H5	Weight (Kg)
mm	PN16/40	PN63	460	PN16/40	PN63	PN16/40	PN63	PN16/40	PN63	PN16/40	PN63/100
20	95	115	460	230	225	177	107	119	123	135	490	373	459	10	13	10	13
25	100	115	460	230	225	177	107	119	123	135	490	373	459	12	16	12	16
32	105	130	460	230	225	177	114	122	134	142	490	495	459	15	19	15	19
40	115	130	460	230	225	177	132	140	152	160	490	495	459	17	26	17	26
50	125	150	460	230	225	177	137	157	157	177	490	495	429	18	27	18	27
65	145	170	530	230	225	177	164	169	191	196	540	700	520	34	43	34	43
80	155	190	530	230	255	177	174	179	201	206	540	700	520	46	69	46	69
100	175	215	530	230	255	177	189	200	216	227	540	700	520	54	85	54	85
125	200	250	630	260	310	226	213	230	240	257	625	725	570	76	120	76	120
150	225	275	630	260	310	226	243	250	270	277	625	725	570	79	125	79	125
200	275	325	630	260	310	226	298	304	325	331	625	725	570	100	150	100	150

Why Choose Us?
1. Manufacturer
We are manufacturer of control valve for 16 years, our factory is located in Shaoguan, which in the north of Guangdong Province. We offer OEM/ODM service, and also we have our own band "GOOLE". Our products has won the trust from the customer as our high qulity and good after-sales.

2. High quality
In early days, 15 years ago, we introduce a full set of control valve production technology from Germany. We've been the OEM suplier for German brand valve. It just cost you 50% price to buy the same type same technical standard products compared with German products. GOOLE stick to the concept of 'Quality First, Credit Uppermost, products has been certified by CE, CQC, TUV, ISO14001,etc.

3.Good After-sales
Our sales will reply you as soon as possible for any question about valves.  We will track the customer product usage, if customer find any problem, our engineer will follow up at first time. For the accessories, we offer the best price.

FAQ
1. Q:Can we print our logo on your products?
A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.

2.Q:What measures you can provide to ensure our our deal?
A: We are the trade assurance supplier on Made-in-china.com. If you place an trade assurance order, you will receive 100% refund of the trade assurance amount for order not meeting agreed
delivery or quality terms.

3.Q:How can I start a new trade assurance order?
A:You can make it as follow:
    1) Find a Trade Assurance supplier and negotiation your order terms
2) Confirm your contract on Made-in-china.com
   3) Submit your initial payment by T/T .
   4) Enjoy Trade Assurance protection up to your covered amount .

4. Q:Does the trade assurance support any amont of order?
A: No, this service just support the order of more than $1000.

5.Q:What's your after-sale?
A: We offer 12 months warranty service, and we also sell the valve parts.

If you have any related inquiry, kindly send us detailed specifications, we will send you our best offer together with GA Drawings or E-Catalogs.
