Product Features
- Dynamic/static armature made of Germany stainless steel material, fast response
- Mold of pilot seat is made by top-level supplier, high precision for plastic parts
- Spool one-time-machined from superior aluminum alloy rod , by high precision Japan CNC
- Valve body use 6061-T6 aluminum alloy ,ensuring clean and rigid thread
- Special mini filter is designed on pilot exhaust port, cleaner inner air
- Integral coated coil by thermosetting BMC, IP65 protection, low temperature rise, longer life
- Machining + Assembly + Testing automation production streamlines, high stability and consistency
- Function various 5/2, 3/2, 5/3, solenoid control, air control, size ranges 1/8"-1/2 .

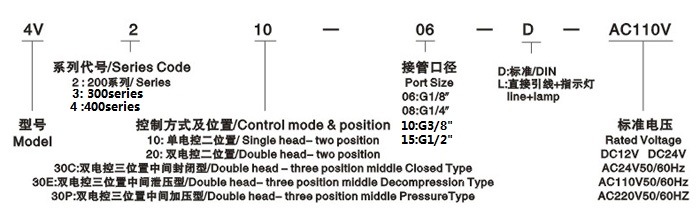

| Model | 4V110-06 | 4V210-08 | 4V310-10 | 4V410-15 | |
| 4V120-06 | 4V220-08 | 4V320-10 | 4V420-15 | ||
| 4V130-06 | 4V230-08 | 4V330-10 | 4V430-15 | ||
| Orifice Size(mm) | 12mm(Cv=0.67) | 16mm(Cv=0.89) | 30mm(Cv=1.68) | 50mm(Cv=2.79) | |
| Port Size | G1/8" | G1/4" | G3/8" | G1/2" | |
| Acting Type | Internal pilot or external pilot | ||||
| Working Medium | Air (to be filtered by 40μm filter element) | ||||
| Valve Type | 5 port 2 position and 5 port 3 position | ||||
| Operating Pressure | 0.15-0.8Mpa(21-114psi) | ||||
| Proof Pressure | 1.5Mpa(215psi) | ||||
| Max. Pressure Resistance(kgf/cm2) | 12 | 10.5 | |||
| Operating Temperature(°C) | -20~70°C | ||||
| Material of body | Aluminum alloy | ||||
| Voltage | AC220V,AC110V,AC24V,DC24V,DC12V | ||||
Product Details

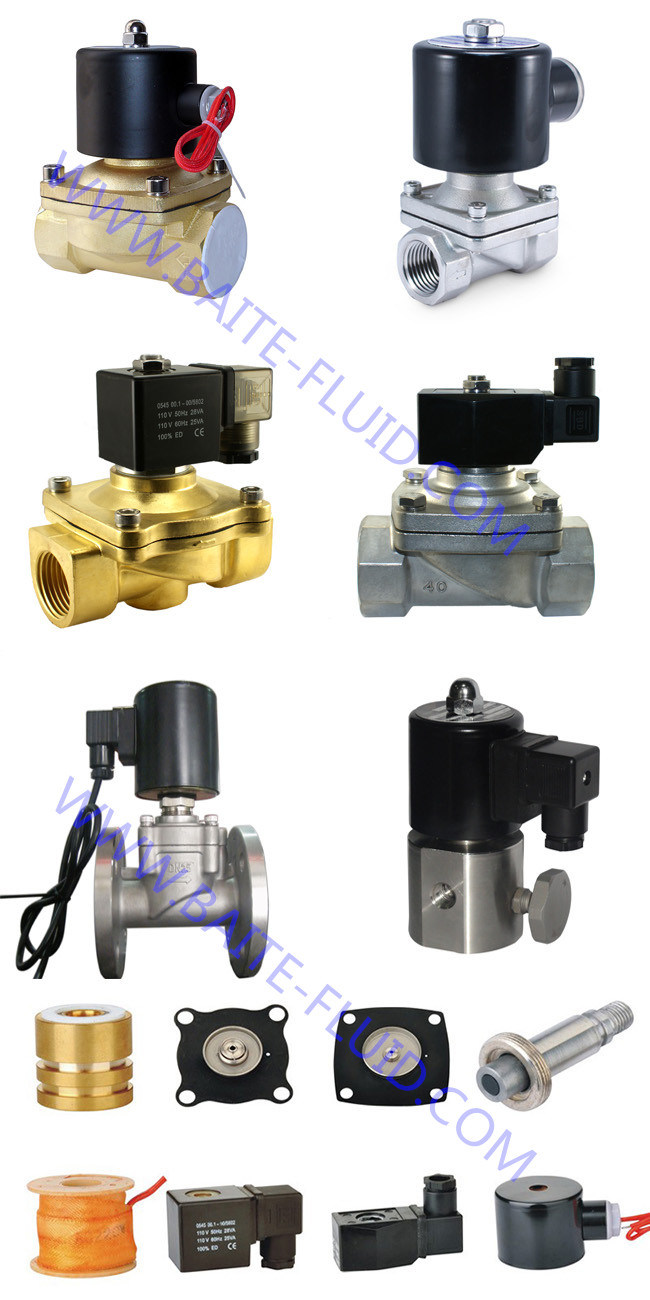

Related Products
Production Workshop
Quality Assurance
Main Equipment:
automatic coil winding machine, precision automatic die-casting machine, precision extrusion machine, forging machine, CNC machine, milling machine, turning and milling machine, four-axle CNC milling machine, injection machine, vulcanizing machine, surface treatment, electro coating line, automatic painting line, sealing parts pressing machine, as well as 200 testing devices like projectors, direct-reading spectrometer, 3D measuring apparatus, salt spray testing machine, and 10 automatic processing lines.
Perfect Inspection Process:
Raw material inspection (5steps)- Raw materials testing is to ensure the raw material conforming to the order requirements.
Process testing(10steps)-Each processing step testing is to guarantee each step product qualified.
Factory testing(6steps)-Assure 100% product qualified rate to meet customer's requirements
