Strict Quality Control High Pressure Flange Drilling ANSI Bellows Globe Valve

 GG25 PN10 PN16 CAST IRON GLOBE VALVE DIN STANDARD API Globe Valves, ANSI, BS, DIN, JIS PN10/PN16 cast iron globe valve,ANSI / MSS-SP-85 Cast Iron Globe Valves ,ANSI Cast Iron Globe Valve  ,Cast Iron/Ductile Iron Globe Valve DIN3202 F1 PN16Prod

Technical Feature

  • Ningbo, China
  • 50000PCS/Year
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Manual
  • Ductile Iron
  • Through Way Globe Valve
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

DETAIL DESCRIPTION

Strict Quality Control High Pressure Flange Drilling ANSI Bellows Globe Valve

 GG25 PN10 PN16 CAST IRON GLOBE VALVE DIN STANDARD API Globe Valves, ANSI, BS, DIN, JIS PN10/PN16 cast iron globe valve,ANSI / MSS-SP-85 Cast Iron Globe Valves ,ANSI Cast Iron Globe Valve  ,Cast Iron/Ductile Iron Globe Valve DIN3202 F1 PN16
Strict Quality Control High Pressure Flange Drilling ANSI Bellows Globe Valve



Product Feature

  • Simple structure, manufacture and maintenance is more convenient
  • Low friction force of sealing surface, good sealing performance and long sevice life
  • Wide range of pressure application, not only for low pressure, but also for high pressure

Specifications

Design and Manufacture

MSS SP-70

Face to face

ANSI B16.10

Flange end

ANSI B16.10

Nominal Pressure (PSI)

250/125

Shell Test (PSI)

350/875

Seal Test (PSI))

200/500

Body Material Bonnet Material

Cast iron ASTM A126 CL.B

Disc

Cast iron ASTM A126 CL.B+Bronze B62/Brass B16 / Stainless Steel 2Cr13

Stem

Brass B16 / Stainless Steel 2Cr13

Seat ring

Bronze B62/Brass B16 / Stainless Steel 2Cr13

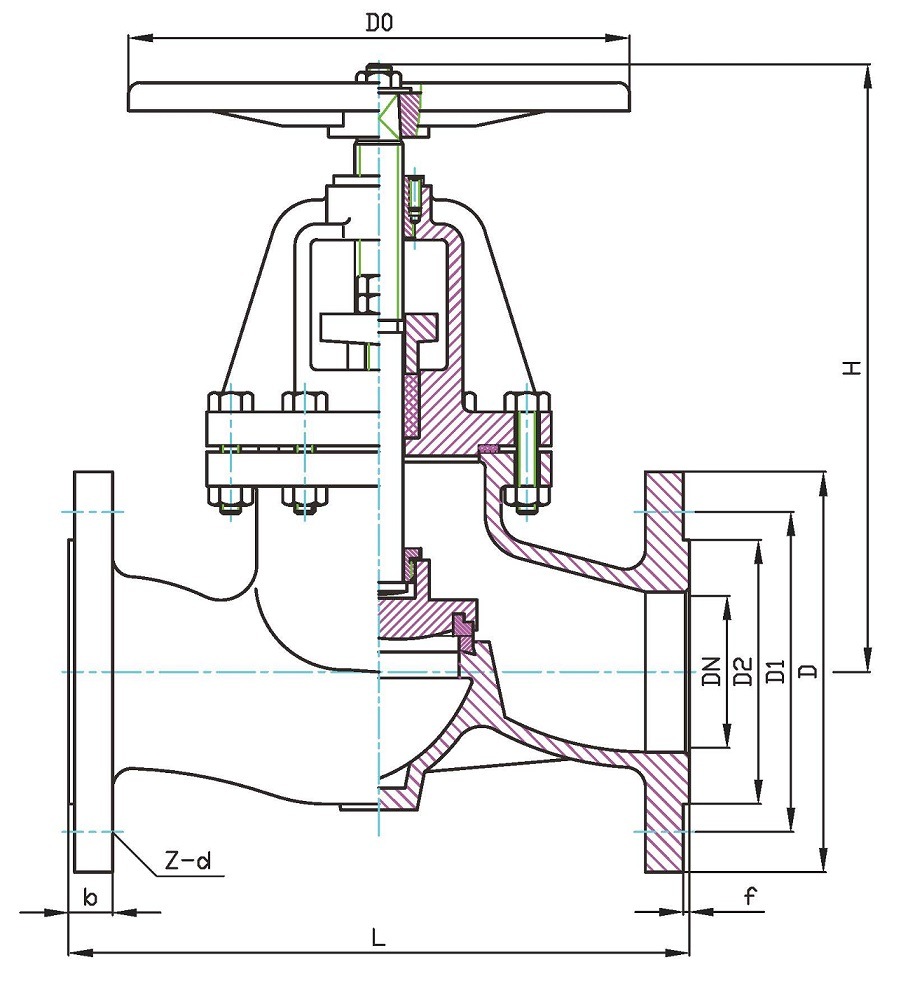

Overall Dimension

Strict Quality Control High Pressure Flange Drilling ANSI Bellows Globe Valve



SizeDLbHD1Z-d
DN15891081218860.54-16
DN209811712193704-16
DN251081271220179.54-16
DN3211714013228894-16
DN401271651523598.54-16
DN5015220316245120.54-19
DN6517821617.5270139.54-19
DN8019124119297152.54-19
DN10022929224337190.54-19
DN125254330243822168-22
DN15027935625.5417241.58-22
DN20034349529440298.58-22
DN25040662230.551936212-25
DN3001836983257943212-25


Packaging & Delivery

Packaging Details
Bubble pack for Multi-purpose cast iron gate valve with prices stem extension. Outside packing are plywood cases. Or as per the request of customers.
Delivery Time
Shipped in 30 days after payment

Strict Quality Control High Pressure Flange Drilling ANSI Bellows Globe Valve

Strict Quality Control High Pressure Flange Drilling ANSI Bellows Globe Valve



Why Choose US


We control the material of PTFE(Teflon) and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
