Electric Control Valve for High Pressure Steam
Product Description
2016 New Grat electric Proportional control valveProduct Description
Features
1.The characteristics of flow control.
2.Long service life.
3.The patent positioning technology.
4.Miniature design.
5.Good seal performance.
6.The valve owns a self-cleaning function to effectively guarantee the piping circulating.
7,High modulation precision.
8.The new technology for Direct Debugging Switch(DDS) in electric actuators.
Technical parameters
Valve size: DN15-DN200(Please contact us for the larger diameter information.)
Body ratings: PN1.6MPa
Body connections: Flange
Seat form: PTFE Soft seal
Body material: SUS304 SUS316 WCB
Stem material: SUS304 SUS316 WCB
Action time: 15S, 30S(optional)(0-90°)
Power supply: AC220V, AC380V, DC24V
Control signal: 4~20mA, 0~5V
Output signal: 4~20mA 0,~5V
Operating pressure: PN1.6Mpa, PN2.5Mpa, PN6.4Mpa
Medium Temp. ≤220ºC
Ambient Temp. ≤50ºC
Flow coefficient(CV): Please download the data on our website for reference.(Custom flow coefficient depends on the customer's requirement.) Applicable medium: Food, lubrication, fibrous fluid, water, oil, gas.
Dead zone: 0.5%
Repeatability error: 0.5%

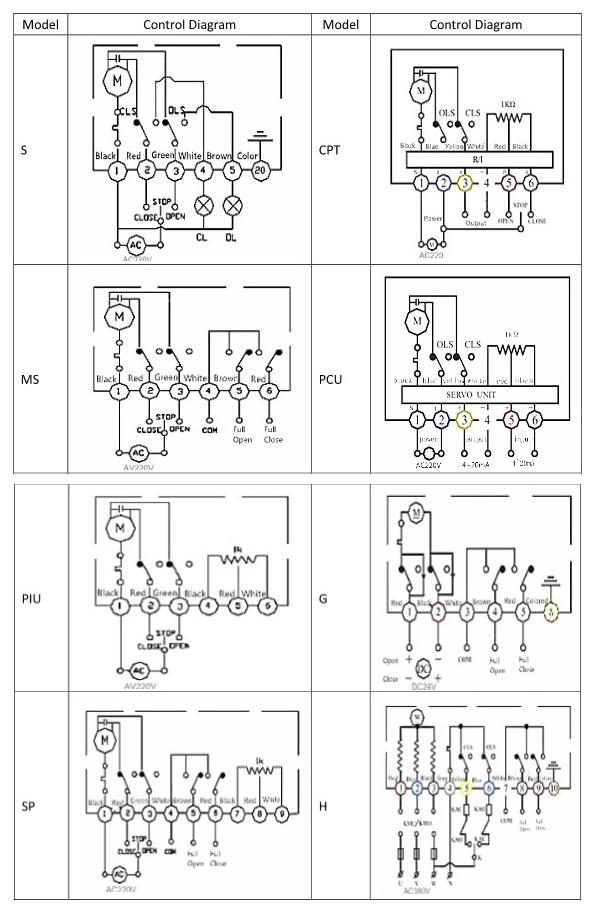

Installation Diagram
Packing & Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
Our Services
1.Professional consultation
2.24 hours response after sale.
3.One year warranty.
4.Safe packing for shipment.
Welcome sample order.

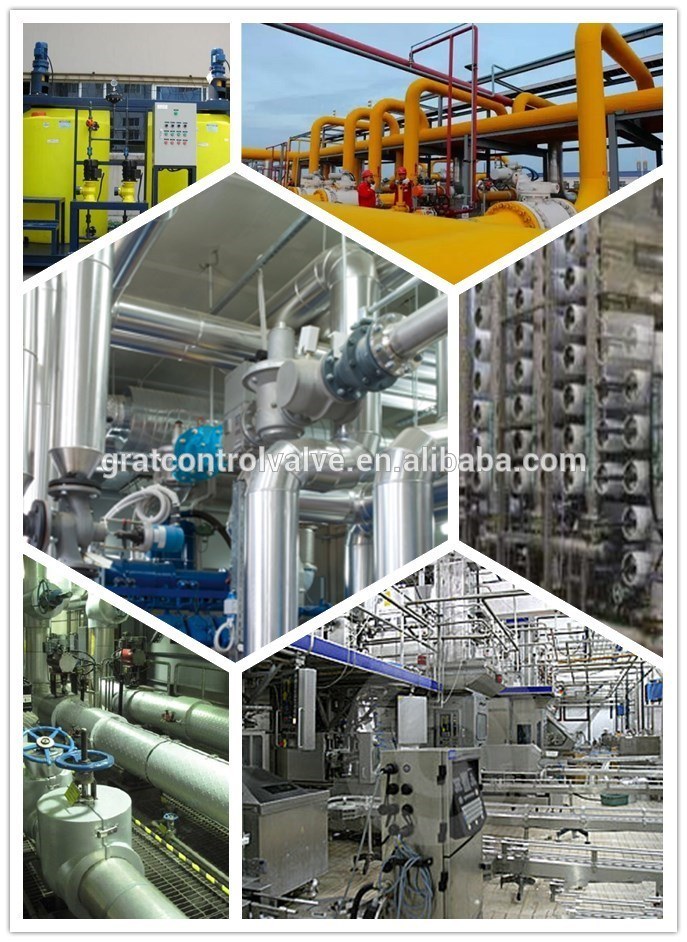

Application:
