portable mining hydraulic geotechnical rotary core Drilling rig Machine
Description of Drilling rig Machine

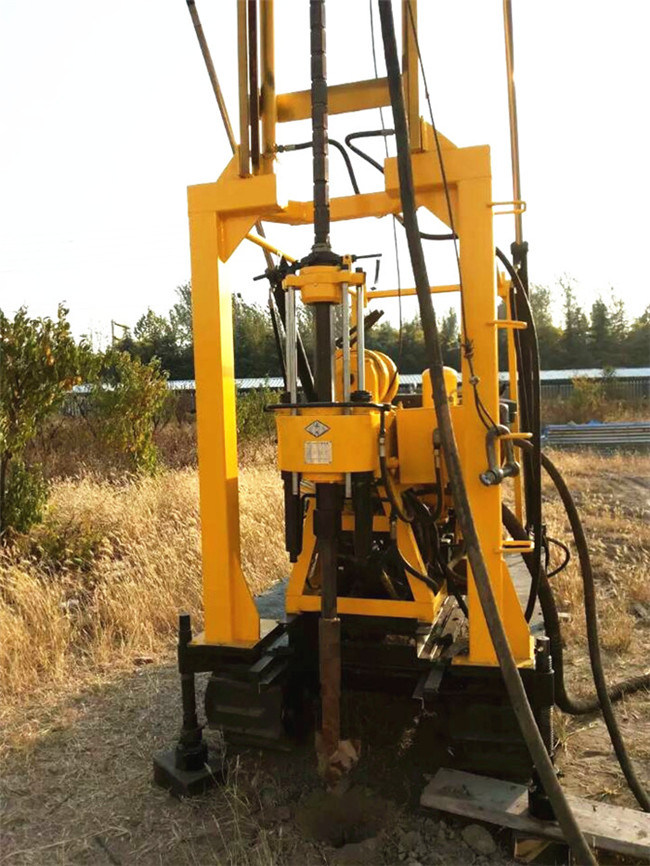

XYD Drilling rig Machine crawler drilling machine or track mounted drilling rig is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.
Feature of Drilling rig Machine
Our services
1.Any inquiries will be replied within 12 hours.
2.Professional manufacturer, Welcome to visit our factory at any time.
3.High quality, fashion designs, reasonable & competitive price and fast lead time.
4. Protection of your sales area, ideas of design and all your private information.
5.Shipping:We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, China air post.You also can choose your own shipping forwarder.
Company Information
Description of Drilling rig Machine

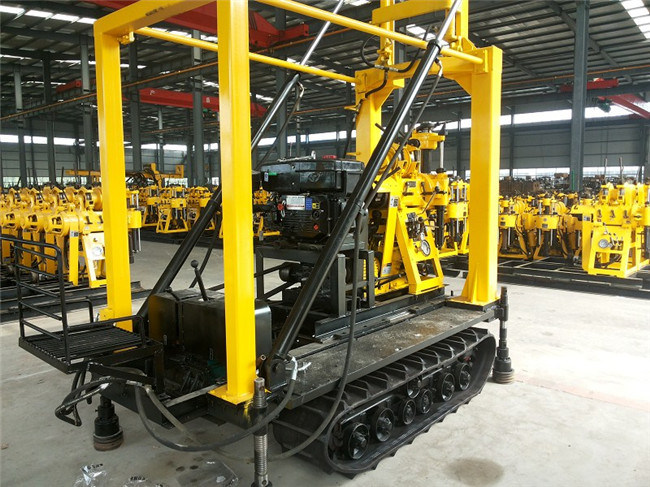

XYD Drilling rig Machine crawler drilling machine or track mounted drilling rig is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.
Feature of Drilling rig Machine
- Hydraulic control drill mast,save time and worker labor.
- Four hydraulic jacks with max. height 1.3m,the machine can be loaded on to and unloaded from truck.
- Rubber track is with lighter weight,and does not hurt urban road.
- Electric-start diesel engine reduces the operator's labor intensity.
- Mud pump:BW160 mud pump,with bigger flow displacement and pressure,easy maintenance.
- 6.Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.
| The Drilling rig Machine parameters | |||
| Model | XYD-130 | XYD-180 | XYD-200 |
| Drill hole depth | 130m | 180m | 200m |
| Maximum opening diameter | Φ75-Φ220mm | Φ75-Φ220mm | Φ75-Φ325mm |
| Final hole diameter | Φ75mm | Φ75mm | Φ75mm |
| Drill pipe diameter | Φ42-60mm | Φ42-60mm | Φ42-60mm |
| Borehole inclination | 90°- 75° | 90°- 75° | 90°- 75° |
| Power(diesel engine) | 13.2/2200kw/r/min | 13.2/2200kw/r/min | 15/2200kw/r/min |
| Size | 3.8*1.95*2.7m | 3.8*1.95*2.7m | 3.8*1.95*2.7m |
| Vertical shaft | |||
| Vertical spindle speed | 142,285,570r/min | 130,480,730,1045r/min | 64,28,287,557r/min |
| Vertical stroke | 450mm | 450mm | 450mm |
| Crawler chassis | |||
| Crawler size/piece | 350*90*48mm | 350*90*48mm | 350*90*48mm |
| Climbing angle | 20° | 20° | 20° |
| Moving speed | 10km/h | 10km/h | 10km/h |
| Hydraulic landing leg valid height | 1300mm | 1300mm | 1300mm |
| Rig | |||
| Rated load | 18t | 18t | 18t |
| Effective height | 6.5m | 6.5m | 6.5m |
| Mud pump | |||
| Model | BW160 | BW160 | BW160 |
| Flow | 160L/min | 160L/min | 160L/min |
| Maximum pressure | 1.3Mpa | 1.3Mpa | 1.3Mpa |
| Reciprocating frequency | 165times/min | 165times/min | 165times/min |
| Inlet hose diameter | Φ51mm | Φ51mm | Φ51mm |
| Outlet hose diameter | Φ32mm | Φ32mm | Φ32mm |
