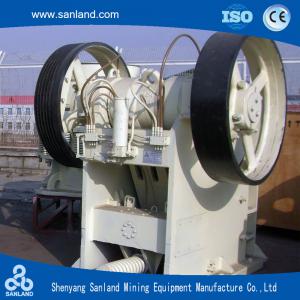

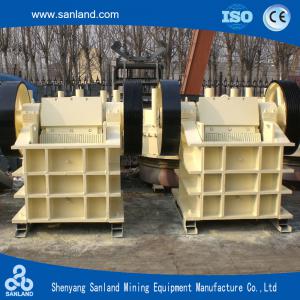

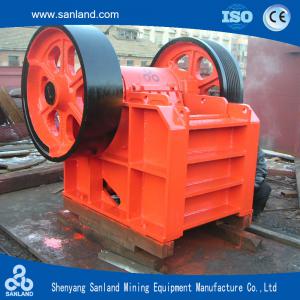

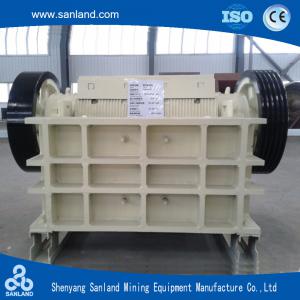

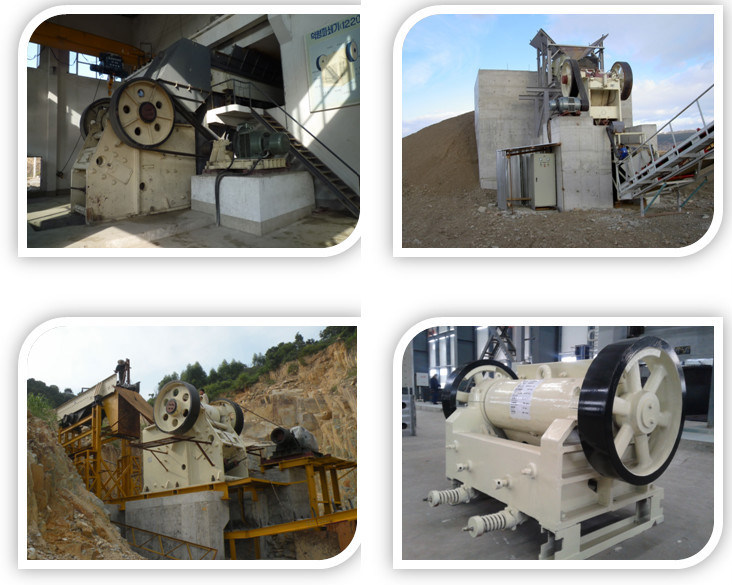

As One of the most popular stone-crushing equipments in the world, Jaw Crusher is ideally suitable for primary and secondary crushing. This series jaw crusher has a feature of large crushing ratio, uniform product granularity, simple construction, reliable operation, easy maintenance, low operating cost. This crusher is widely used in mining, smelting, building materials, roads, railways, water conservancy, chemical industry and many other departments, meanwhile all kinds of materials.
PRODUCT FEATURES
1.U.S. crushers, made by Sanland with American Terex technology;
2.High crushing ratio, even output granularity, simple structure, reliable performance and convenient in maintenance;
3.Environmentally friendly, high capacity and low cost;
4.Bearings made with SKF technology.
PRODUCT PARAMETERS
| Type | Size | Feed opening | Max feed | Setting adjustment range(mm) | Capacity | Motor Type | Power | Voltage | Machinery Weight(t) | Overall dimension(m) |
| (mm) | lump size | (m3/h) | (KW) | (V) | ||||||
| (mm) | ||||||||||
| STPEF0204 | 250×400 | 250×400 | 210 | 20-60 | 5-20 | Y180L-5 | 15 | 380 | 2.325 | 103×1.02×1.14 |
| STPEF-X0207 | 250×750 | 250×750 | 210 | 20-60 | 20 | Y225M-6 | 30 | 380 | 6.3 | 1.48×1.91×1.5 |
| STPEF-X0210 | 250×1000 | 250×1000 | 210 | 20-60 | 10-23 | Y2805-6 | 37 | 380 | 7.72 | 1.48×2.34×1.54 |
| STPEF-X0212 | 250×1200 | 250×1200 | 210 | 15-50 | 13-38 | Y280S-8 | 37 | 380 | 7.5 | 1.6×2.2×1.3 |
| STPEF0406 | 400×600 | 400×600 | 340 | 60±30 | 18 | Y225M-6 | 30 | 380 | 6.56 | 1.56×1.74×1.59 |
| STPEF0507 | 500×750 | 500×750 | 400 | 75±25 | 40.5 | YR280M-6 | 50 | 380 | 10.57 | 3.50×1.94×2.21 |
| STPEF0609 | 600×900 | 600×900 | 500 | 100±25 | 60 | JR75-8 | 75 | 380 | 16.9 | 2.57×3.72×2.37 |
| STPEF0710 | 750×1060 | 750×1060 | 630 | 110±30 | 110 | YR280M-6 | 90 | 380 | 24.01 | 3.1×2.6×2.95 |
| STPEF0912 | 900×1200 | 900×1200 | 750 | 130±35 | 180 | JR126-8 | 110 | 380 | 44.13 | 5.00×4.47×3.28 |
| STPEF1113 | 1066×1219 | 1066×1219 | 950 | 100-200 | 240 | YR355M2-8 | 160 | 380 | 51.35 | 3.6×2.99×3.32 |
| Catalogue | mm Feeder opening | mm Max Feeder | mm Discharge size | m3/h Capacity | (Motor) | |||||
| Type | Width | Length | opening | Normial size | Adjusting range | Model | kw Power | r/min Speed | v Voltage | |
| STPEJ 0609 | 600 | 90 | 500 | 100 | ±25 | 60 | YR315M-8 | 75 | 740 | 380 |
| STPEJ 0912 | 900 | 1200 | 750 | 130 | ±35 | 180 | JR126-8 | 110 | 730 | 380 |
| STPEJ 1215 | 1200 | 1500 | 1000 | 155 | ±40 | 310 | YR450-12 | 160 | 492 | 3000/6000 |
| STPEJ 1521 | 1500 | 2100 | 1300 | 180 | ±45 | 550 | YR500-12 | 250 | 490 | 3000/6000 |
| (kg)Weight Type | Weight Exclude motor | Feameass'y | swingass'y | Pitmainshaftass'y | mainshaftass'y | counterass'y | shell | swing | pitman | max part weight | |
| top | bottom | ||||||||||
| STPEJ0609 | 25900 | 10750 | 5100 | 1320 | 6400 | 8500 | 3300 | 1185 | 8500 | ||
| STPEJ0912 | 55363 | 27000 | 11845 | 2775 | 10916 | 20000 | 6783 | 1345 | 20000 | ||
| STPEJ1215 | 110380 | 53790 | 22610 | 5815 | 15100 | 6920 | 24500 | 18500 | 15200 | 3203 | 24500 |
| STPEJ1521 | 187660 | 93020 | 41670 | 12630 | 24075 | 7195 | 25000 | 27000 | 27000 | 6756 | 45000 |
SANLAND PROFILE
1. Sanland is a manufacture of all types of cone crusher, high effectivity crusher mining, Impact crusher, Feeder, Screen, ball mill and all Mining equipment and the spare parts.
2. Sanland under license American Symons technology to produce Symons cone crusher (Include 2Ft, 3Ft, 4Ft, 4 1/4Ft, 5 1/2Ft, 7Ft Symons cone crusher) and Gyradisc crusher 36'',48'',66''and So on. Under license No.:85BMSJ/200254MR.only one in China, all the spare parts that we offered is the same as Nordberg Symons Parts.
3. We export full crushing line to Chile, Kazakstan, Congo, Saudi Arabia, and other countries. We offer perfect sales service for customers, we have experience for commissioning the line.
PACKING AND SHIPMENT
Packing: Container for machines and spare parts by woonden case or as your demands
Shipment: 15-20 working days for New order,7-10 days for Ready goods
SANLAND SERVICE
We are committed: to provide the best quality and most efficient first-class after-sale service for the customers.
Our company has a professional service team, after the equipments arrive at the scene, our service staff will conduct on-site operational training and operational guidance for the direct users, and our experts can provide you the wear analysis service, maintenance and other considerations to improve quality, reduce costs, guide the user installation, commissioning the machines, and after the machines are normal operation at all, our service staff will return. All the spare parts that the customer needs, we will arrange the spare parts to be reached on the customer site within 24 hours.
