Twin Screw Plastic Recycling pelletizing Machine/Granulator/compounding extrusion plant
1. Representative Material:
*Mixing nature-changing:
PE, PP, PS+SBS, PA+EPDM, PP+NBR, EVA+silicon rubber;
PE, PA, PC, CEP+ABS(alloy), PBT+PET, PP+PE
Filling nature-changing:
PE, PP, EVA, Calcium carbonate, talcum powder, titanic powder;
ABS, PC, PS, Aluminum hydroxide, magnesium hydroxide, antimony oxide;
PP, PA, ABS+ferrous powder, sulphuric powder, ceramic powder
Functional machine pellets:
PP, PA, ABS, PBT+anti-burning agent and other auxiliary agents: Combustion-supporting machine pellets;
PS+starch: De-composing machine pellets, PE+fog-preventing dipper, stabilizer: Dual-prevention machine pellets; PE, EVA, ABS+carbon black: Black machine pellets
Colored machine pellets:
PE, PP, ABS, AS, PA, EVA, PET+pigment and auxiliary
Intensified glass fibres and carboon fibres:
PP, PBT, ABS, AS, PA, PC, POM, PPS, PET+long fires, small fibres, crystals
Various cables:
HDPE, LDPE, LLDPE, MDPE, EVA, PVC, PP, Lnsulating cables;
PE peroxide silicon
2. Characteristics of this Twin Screw Plastic Recycling pelletizing Machine/Granulator/compounding extrusion plant
*PP/PA/PC Plastic Granulator Of Plastic Extrusion Machine use innovated design of heater tightened style, it insures high efficiency of heat transfer and high longevity of heater.
*PP/PA/PC Plastic Granulator Of Plastic Extrusion Machine has Various modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelletizing etc.
*The screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistant and high functions
*The screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different materials properties and requirements in consideration of the versatility in each general applications.

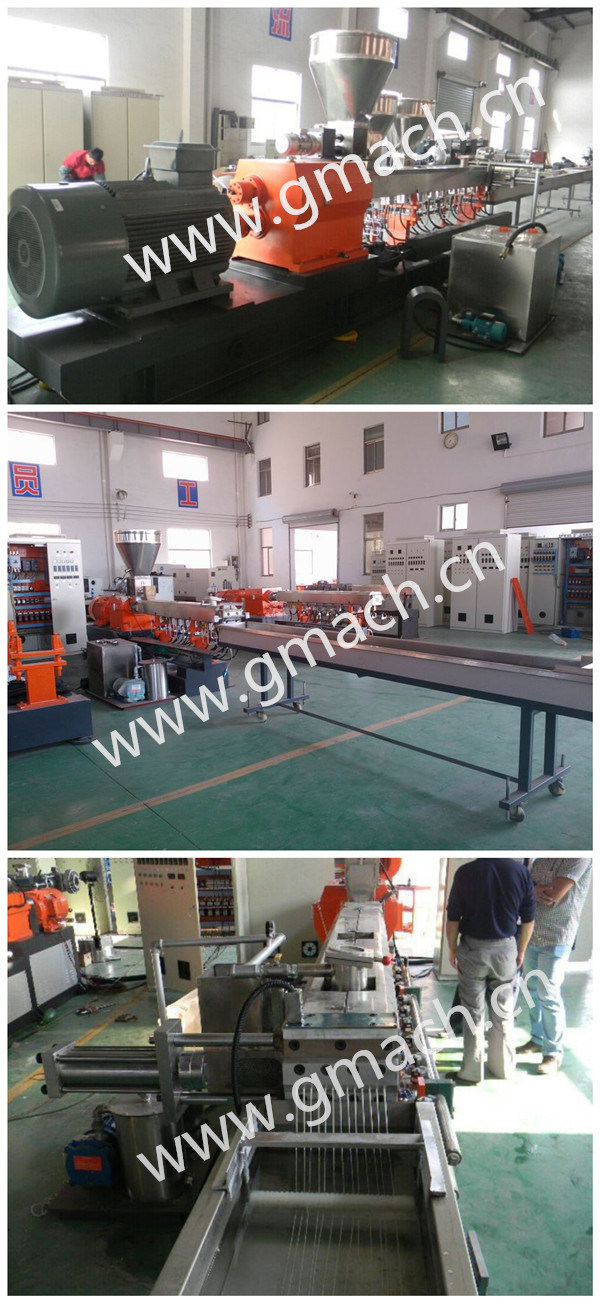

Pictures of this Twin Screw Plastic Recycling pelletizing Machine/Granulator/compounding/extrusion plant
Types and parameter
| Type | Diameter (mm) | L/D | Screw speed (r/min) | Power (kw) | Torque grade (N.m) | Specific Torque (T/A3) | Capacity (kg/h) |
| GM-TS-18 | 18 | 32~60 | 600 | 2.2 | 17 | 5.0 | 0.5~10 |
| GM-TS-25 | 26 | 32~60 | 500 | 5.5 | 50.4 | 4.7 | 3~15 |
| 600 | 7.5 | 57.3 | 5.4 | 3~25 | |||
| GM-TS-35 | 35.6 | 32~68 | 500 | 15 | 138 | 5.1 | 10~55 |
| 600 | 18.5 | 141 | 5.2 | 10~90 | |||
| GM-TS-40 | 41 | 32~68 | 600 | 30 | 229 | 5.6 | 90~150 |
| GM-TS-52 | 51.4 | 32~68 | 500 | 45 | 413 | 5.2 | 135~225 |
| 600 | 55 | 420 | 5.3 | 165~275 | |||
| GM-TS-65 | 62.4 | 32~68 | 500 | 90 | 825 | 5.9 | 270~450 |
| 600 | 110 | 840 | 6.0 | 330~550 | |||
| GM--TS-75 | 71 | 32~68 | 500 | 132 | 1210 | 5.6 | 400~660 |
| 600 | 260 | 1222 | 5.7 | 480~800 | |||
| GM-TS-85 | 81 | 32~68 | 500 | 200 | 1834 | 5.9 | 600~1000 |
| GM-TS-95 | 93 | 32~68 | 500 | 280 | 2567 | 5.4 | 840~1400 |
| GM-TS-115 | 115.5 | 32~68 | 500 | 500 | 4584 | 5.2 | 1500~2500 |
| GM-TS-135 | 133 | 32~68 | 400 | 650 | 7449 | 5.6 | 1950~3250 |

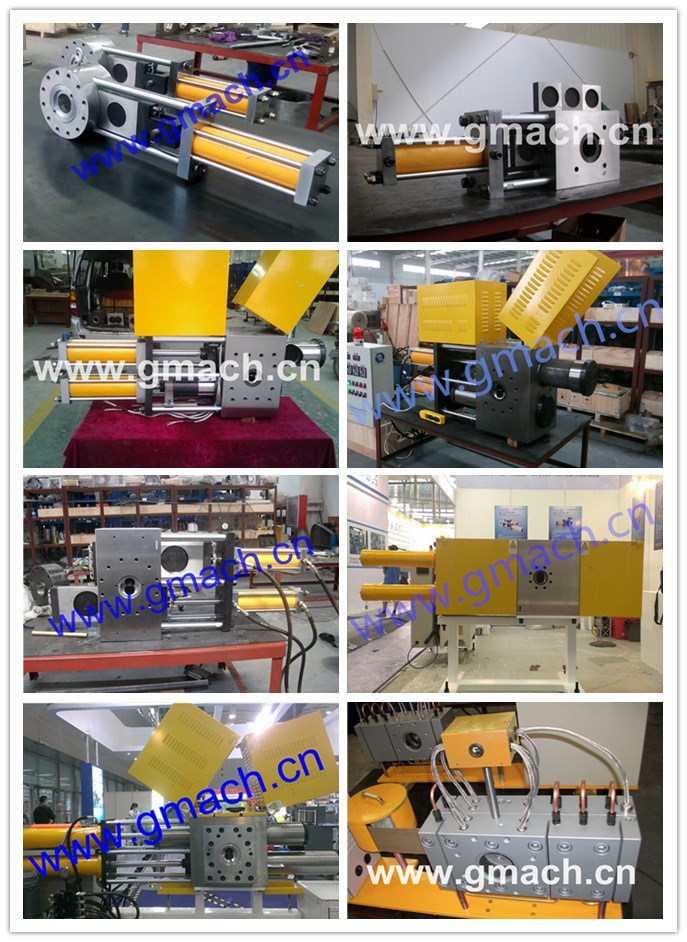

The following picture show our company screen changer for this Twin Screw Plastic Recycling pelletizing Machine/Granulator/compounding/extrusion plant
1, plate type hydraulic screen changer for plastic extruder
2, plate type continuous screen changer for plastic extruder
3,Double piston type continuous screen changer for plastic extruder
4, double piston large capacity continuous screen changer for plastic extruder
5,double plate ty7pe continuous screen changer for plastic extruder
6,double piston continuous screen changer with elongated screen for plastic extruder
7,Self-cleaning backflush screen changer for plastic extruder
8, Automatic mesh belt screen changer for plastic extruder
We can provide different solutions of the filtration system of the plastic extruder accoding to the production condition.
- Adpters
- support stands
- down stream equipments: suach as Gmach melt gear pump
- filter mesh/screen
- vacuum cleaning furnace
- under water pelletizing system
Packaging
Inner packing: bubble wrap film protection
outer packing:wooden case
Commissioning
We provide the operation manual for customers to gudie to install the screen changer, and at the requirement of user, salers should send technician to install and commissioning the die at site of Buyers, expenses of the trip should be borne by Buyers.
After-sales service
12 months with proper operation by user, all the spare parts shall be replaced free of charge under guarantee period, fee for transportation and packing will be borne by users.
GMACH information
About Gmach
Zhengzhou Great Machinery Co.,Ltd, a high-tech company with deep technology background and strong work team and services in China. Our global team is dedicated to equipping our customers with the competitive solutions. Our business across the hydraulic screen changer/ melt filter, melt gear pump,,and plastie recycling granulator/extruder, underwater pelletizing system.
Gmach is a rapidly growing company, it has a large number of sensior technicians and and full of passion and ambitious young people. the deep technical background and sense of responsibility work team determine it is standing on a high starting point.
We do not just supply the products , but also provide value-added solutions to more customers in more markets all around the world . In the process, we're helping manufacturers everywhere improve productivity, cut costs, increase energy efficiency, eliminate scrap, reduce cycle times and do whatever else it takes to succeed in today's complex global economy.
Our team is committed to provide customers the best products with ever improving design. Strict production and quality control,and the perfect pre-sales and post-sales services.
We are on the way to be your most reliable and trustworthy partner, now more than ever.

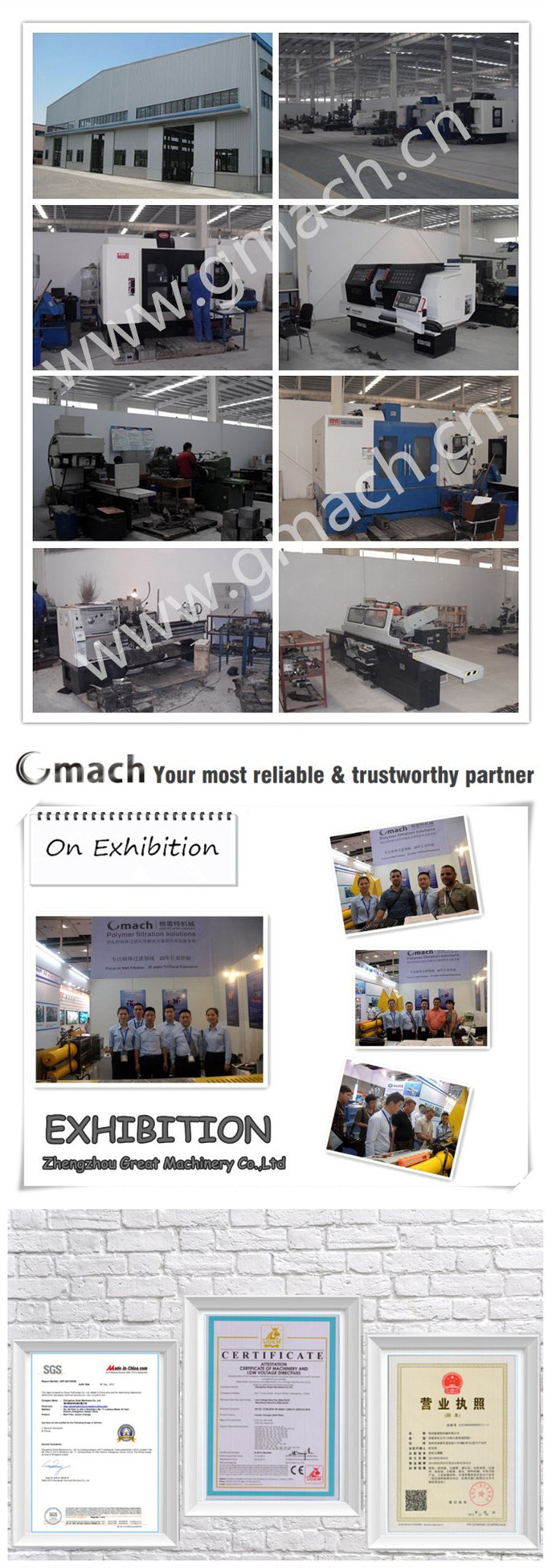

Gmach Factory & Exhibition & Certification Show
In the end I want to say something to our customers or some one may become our customers I Want to express my thanks to all my dear clients .Thank you for visiting our website and glad to see you. Anyone won't buy any products from strangers until they know each other better, but it's a long time for you to understand a strange supplier well, then how you can find a best supplier during so many factories is a problem! I believe that the honest and sincere is very imporant in the business. Though we are a new member here, but we have a full experience technician team and full sense of responsibilty work team, we will provide all the customers with perfect quality products and service. Thank you so much! ! !
