>>>Lithium ion polyethylene battery separator/separator

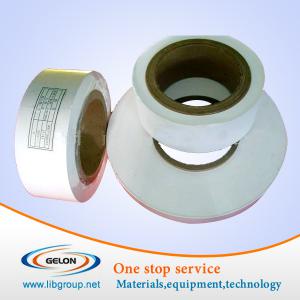

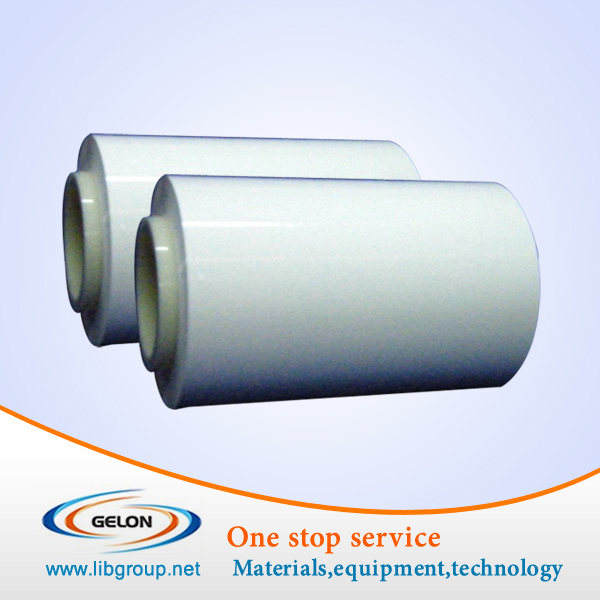

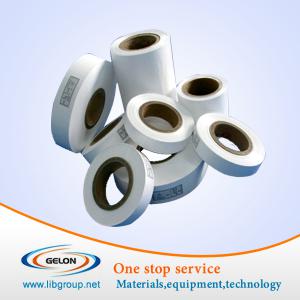

A: Polyethylene Ion exchange battery separator
B: Single layer separator!
We can offer 16um, 20um, 25um, 30um, 40um separator, and the sizes can be made according to the clients' requirement, with single or multiple layer.
>>>Besides, We also can supply others:
1)full set of lithium battery materials,
Including: LiFePO4, LiMn2O4, LiCoO2, LTO, Graphite(MCMB), Copper foil, Aluminium foil, etc;
2)full set of lithium battery equipments,
Including: Mixing machine, coating machine, slitting machine, winding machine, sealing machine, oven, formation and grading machine, etc;
3)full set of lithium battery technology
To help customer establish a laboratory or mass production.
>>>Our Bolivia Project
--In 2013, our Bolivia Project for EV batery production line has completed successfully.
--We Gelon LIB Group offer one-stop service for Bolovia from establishing the battery making factory,
Supply li ion battery materials and equipment, technology support...Until produce the EV battery
And gain the final successful.
--Bolivia president and goverment gave a full support and confirm.
--And our next project for Indonisia will start this year.
>>>More information about our battery products you can visit our website:
Turn-key Project of Li Battery (Lab, Mobile, EV) Production Line
Video Link:
http://v.youku.com/v_show/id_XNjg5ODczMTg0.html
In Feb. 2014, the turn-key project in Bolivia was completed successfully.
Bolivia News Videos:
http://v.youku.com/v_show/id_XNjg4MTgwOTIw.html
Project Opening:
http://v.youku.com/v_show/id_XNjg5Mzg3NjUy.html
http://v.youku.com/v_show/id_XNjg5OTE5OTMy.html
Coating Process:
http://v.youku.com/v_show/id_XNjg5ODc3OTI4.html
Calendaring/Pressing Process:
http://v.youku.com/v_show/id_XNjg5NTE0NTU2.html
Cutting/Slitting Process:
http://v.youku.com/v_show/id_XNjg5ODIzMjYw.html
http://v.youku.com/v_show/id_XNjg5ODU4MDcy.html
Battery Tab Welding Process:
http://v.youku.com/v_show/id_XNjg5ODMyMDc2.html
http://v.youku.com/v_show/id_XNjg5ODc1NTM2.html
http://v.youku.com/v_show/id_XNjkwNDA2MjI4.html
Winding Process (Manual/Semi-Auto):
http://v.youku.com/v_show/id_XNjg5ODc5ODEy.html
http://v.youku.com/v_show/id_XNjg5ODUyMjI0.html
Electrolyte Filling:
http://v.youku.com/v_show/id_XNjg4MDY4OTQ4.html
Standing after Filling Electrolyte:
http://v.youku.com/v_show/id_XNjg4MDc0Nzgw.html
Vacuum Sealing
http://v.youku.com/v_show/id_XNjg4MDgxMzgw.html
Al-plastic Film Cup Punching/Forming:
http://v.youku.com/v_show/id_XNjg0NjEyNzYw.html
Pouch Press & Test:
http://v.youku.com/v_show/id_XNjg5ODM0OTA0.html
http://v.youku.com/v_show/id_XNjg5ODI1ODA4.html
Batteries Welding/Packing:
http://v.youku.com/v_show/id_XNjg5ODQ1MDUy.html
A: Polyethylene Ion exchange battery separator
B: Single layer separator!
We can offer 16um, 20um, 25um, 30um, 40um separator, and the sizes can be made according to the clients' requirement, with single or multiple layer.
Term | Unit | Inspection value |
Appearance | Ivory-white | |
Thickness | micron | 20 ±2 |
Gas permeability | Sec/100ml | 350-550 |
Porosity | % | 38-44 |
Puncturing Strength | g | > 300 |
Tensile strength MD | Mpa | > 90 |
Tensile strength TD | Mpa | > 100 |
Film close temperature | °C | ≤135 |
Film break temperature | °C | ≥147 |
90 °C heat shrink MD | % | ≤3.5 |
90 °C heat shrink TD | % | ≤2 |
105 °C heat shrink MD | % | ≤5 |
105 °C heat shrink TD | % | ≤3 |
120 °C heat shrink MD | % | ≤20 |
120 °C heat shrink TD | % | ≤15 |
>>>Besides, We also can supply others:
1)full set of lithium battery materials,
Including: LiFePO4, LiMn2O4, LiCoO2, LTO, Graphite(MCMB), Copper foil, Aluminium foil, etc;
2)full set of lithium battery equipments,
Including: Mixing machine, coating machine, slitting machine, winding machine, sealing machine, oven, formation and grading machine, etc;
3)full set of lithium battery technology
To help customer establish a laboratory or mass production.
>>>Our Bolivia Project
--In 2013, our Bolivia Project for EV batery production line has completed successfully.
--We Gelon LIB Group offer one-stop service for Bolovia from establishing the battery making factory,
Supply li ion battery materials and equipment, technology support...Until produce the EV battery
And gain the final successful.
--Bolivia president and goverment gave a full support and confirm.
--And our next project for Indonisia will start this year.
>>>More information about our battery products you can visit our website:
Turn-key Project of Li Battery (Lab, Mobile, EV) Production Line
Video Link:
http://v.youku.com/v_show/id_XNjg5ODczMTg0.html
In Feb. 2014, the turn-key project in Bolivia was completed successfully.
Bolivia News Videos:
http://v.youku.com/v_show/id_XNjg4MTgwOTIw.html
Project Opening:
http://v.youku.com/v_show/id_XNjg5Mzg3NjUy.html
http://v.youku.com/v_show/id_XNjg5OTE5OTMy.html
Coating Process:
http://v.youku.com/v_show/id_XNjg5ODc3OTI4.html
Calendaring/Pressing Process:
http://v.youku.com/v_show/id_XNjg5NTE0NTU2.html
Cutting/Slitting Process:
http://v.youku.com/v_show/id_XNjg5ODIzMjYw.html
http://v.youku.com/v_show/id_XNjg5ODU4MDcy.html
Battery Tab Welding Process:
http://v.youku.com/v_show/id_XNjg5ODMyMDc2.html
http://v.youku.com/v_show/id_XNjg5ODc1NTM2.html
http://v.youku.com/v_show/id_XNjkwNDA2MjI4.html
Winding Process (Manual/Semi-Auto):
http://v.youku.com/v_show/id_XNjg5ODc5ODEy.html
http://v.youku.com/v_show/id_XNjg5ODUyMjI0.html
Electrolyte Filling:
http://v.youku.com/v_show/id_XNjg4MDY4OTQ4.html
Standing after Filling Electrolyte:
http://v.youku.com/v_show/id_XNjg4MDc0Nzgw.html
Vacuum Sealing
http://v.youku.com/v_show/id_XNjg4MDgxMzgw.html
Al-plastic Film Cup Punching/Forming:
http://v.youku.com/v_show/id_XNjg0NjEyNzYw.html
Pouch Press & Test:
http://v.youku.com/v_show/id_XNjg5ODM0OTA0.html
http://v.youku.com/v_show/id_XNjg5ODI1ODA4.html
Batteries Welding/Packing:
http://v.youku.com/v_show/id_XNjg5ODQ1MDUy.html
