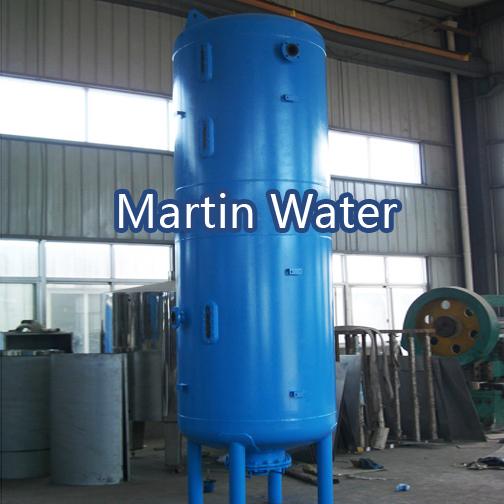

Sand and Carbon Filter Vessel
Filter vessel material: Carbon Steel ( standard)
Material construction option: FRP, 304 stainless steel or 316L stainless steel
Tank are internally lined with rubber for the standard. No dead angle inside tank.
Pipe fittings are readily accessible for easy installation
300X120mm view windows and 400 manhole constructed
304 stainless steel distributor for upper distribution and ABS stack for lower distribution.
Maximum working temperature of 49° C
Maximum operating pressure to 6 bar.
Protective poly-coat over the standard finish
Detailed Pictures
Filter vessel material: Carbon Steel ( standard)
Material construction option: FRP, 304 stainless steel or 316L stainless steel
Tank are internally lined with rubber for the standard. No dead angle inside tank.
Pipe fittings are readily accessible for easy installation
300X120mm view windows and 400 manhole constructed
304 stainless steel distributor for upper distribution and ABS stack for lower distribution.
Maximum working temperature of 49° C
Maximum operating pressure to 6 bar.
Protective poly-coat over the standard finish
| Product Code | MT-SCF-1000 | MT-SCF-1200 | MT-SCF-1500 | MT-SCF-2000 | MT-SCF-2500 | MT-SCF-3000 |
| Diameter (mm) | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 |
| Cylinder Height (mm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Flow(m3/h) | 7.8 | 11 | 18 | 31 | 50 | 70 |
| Net weight (Kg) | 880 | 1.1 | 1500 | 2.5 | 4.1 | 6.3 |
| Filtration Surface (m 2) | 0.78 | 1.13 | 1.76 | 3.14 | 4.9 | 7.06 |
| Operating Temperature (°c) | 4-50 | 4~50 | 4-50 | 4-50 | 4-50 | 4-50 |
| Flow Rate (m/h) | 8~10 | 8~10 | 8~10 | 8~10 | 8~10 | 8~10 |
| Max Operating Pressure | <0.6Mpa |
Detailed Pictures
